RD28e-120c

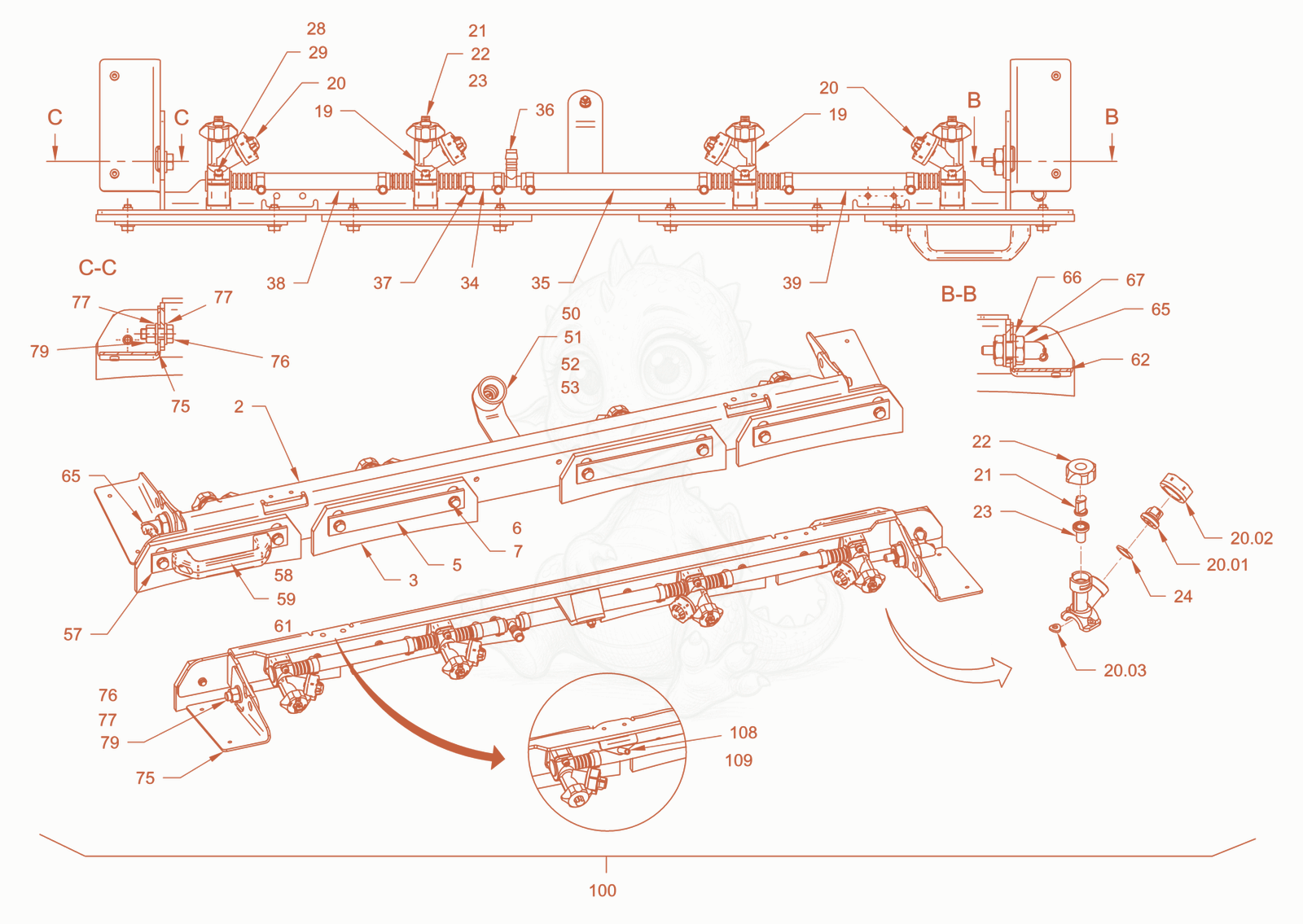

RD28-120CE additive sprinkling Diagram
- Bracket - 5100013176×1
- Scraper - 5100012434×4
- Flat steel - 5100013633×4
- Hexagon screw - 5100012613×8
- Locking washer - 5100012966×8
- Nozzle holder - 5100011898×2
- Cap nut - 5100011535Unknown×1
- Membrane holder - 5100011651Unknown×1
- Nozzle holder - 5100011867Unknown×2
- 205100073204Not stockedsealing ring×1
- sprinkler nozzle - 5100059528×4
- nut - 5100066888×4
- Filtering screen - 5100011489×4
- Membrane - 5100011978×4
- Cheese-head screw - 5100012090×8
- Serrated lock washer - 5100013536×8
- Flexible tubing - 5100013223×0.05
- Flexible tubing - 5100013223×0.22
- T-hose connector - 5100012097×1
- Hose clip - 5100013367×8
- Flexible tubing - 5100013223×0.16
- Flexible tubing - 5100013223×0.16
- Silentbloc - 5100012438×1
- 515100086737Not stockedfillister head screw×1
- Locking washer - 5100012965×1
- Hexagon nut - 5100012545×1
- Metal plate - 5100013200×1
- Handle - 5100012932×1
- Countersunk screw - 5100012665×2
- Hexagon nut - 5100012545×2
- 625100066893Not stockedprotecting sheet×1
- Jack latch - 5100013204×1
- Washer - 5100034679×2
- Hexagon nut - 5100011747×2
- 755100066894Not stockedprotecting sheet×1
- Hexagon screw - 5100012626×1
- Locking washer - 5100012968×2
- Hexagon nut - 5100012548×1
- Scraper - 5100013175×1
- Countersunk screw - 5100012665×2
- 1095100033218Not stockedholder×1
