RD27-120 C Tandem Roller

RD27-120C engine control Diagram

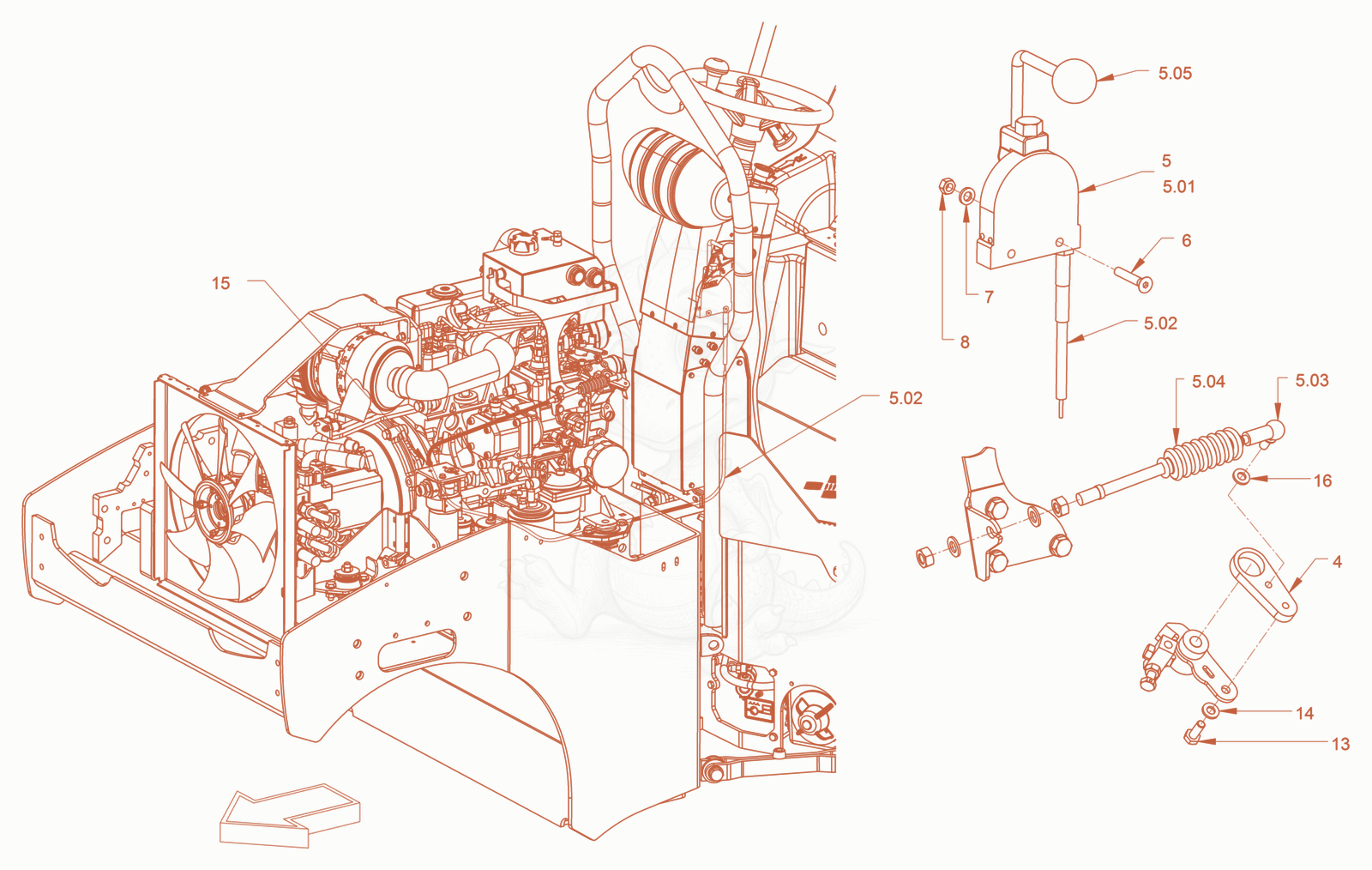

Exploded parts diagram of the engine control of a Wacker Neuson RD27-120C, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 45100012164Not stocked
    Lever×1
  • 55100012694Price
    Actuating cable - 5100012694×1
  • 55100011733Price
    Angle joint - 5100011733×1
  • 55100011950Price
    Bellows - 5100011950×1
  • 55100012588Price
    Ball handle - 5100012588×1
  • 55100012818Not stocked
    Hand lever×1
  • 55100012821Price
    Actuating cable - 5100012821×1
  • 65100013561Price
    Countersunk screw - 5100013561×2
  • 75100012965Price
    Locking washer - 5100012965×2
  • 85100012545Price
    Hexagon nut - 5100012545×2
  • 135100012600Price
    Hexagon screw - 5100012600×1
  • 145100012965Price
    Locking washer - 5100012965×1
  • 155100013573Price
    Wire fastener - 5100013573×10
  • 165100012965Price
    Locking washer - 5100012965×1
