RD 27- 100 ROLLER

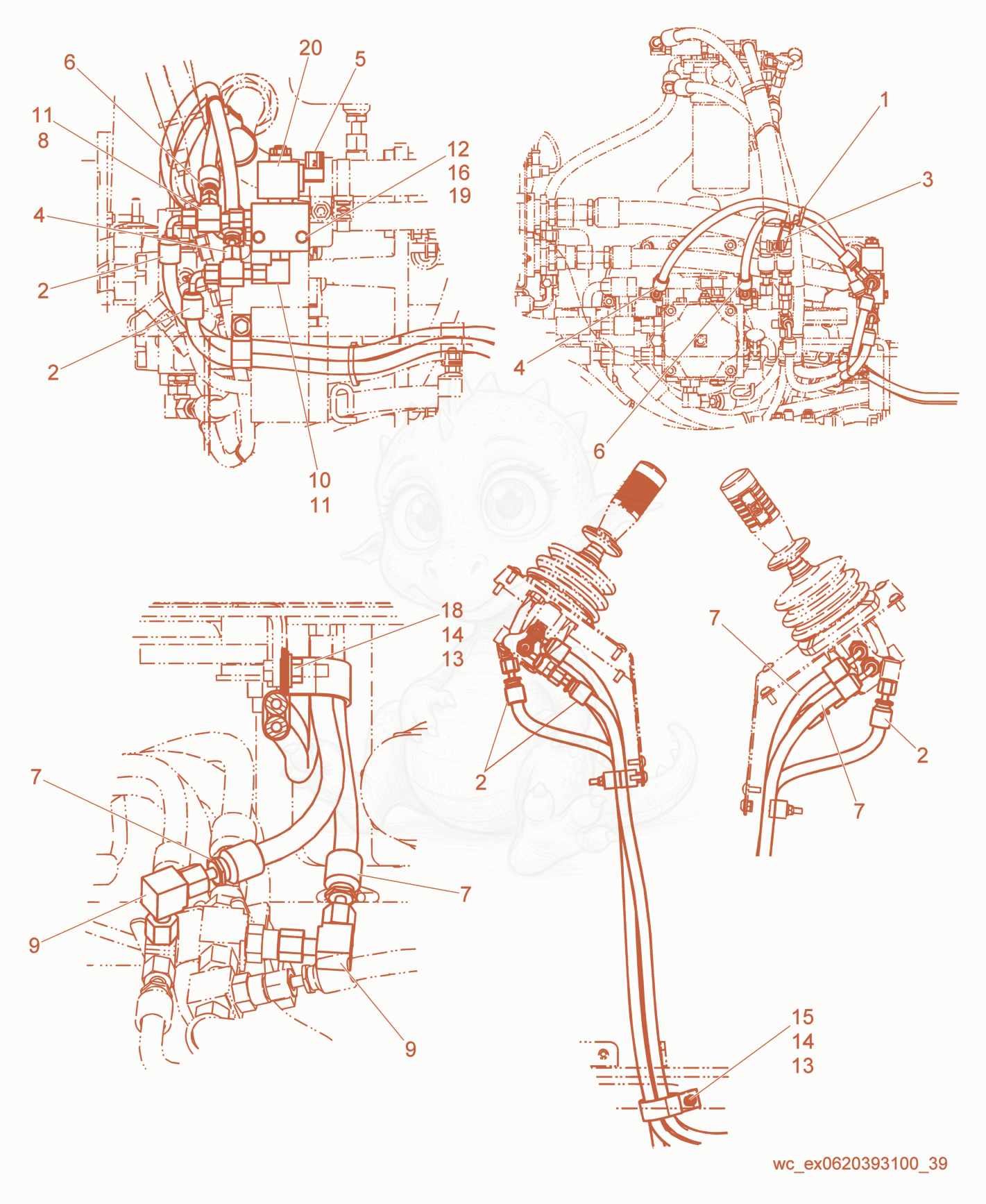

RD27-100 Directional Control Hoses Diagram
- STRAP-MOUNTING - 5000161969×1
- Hose cpl. - 5000171972×2
- STRAP - 5000174172×1
- Hose cpl. - 5000174175×1
- 55000162361Not stockedSolenoid valve×1
- Hose cpl. - 5000174194×1
- Hose cpl. - 5000174217×2
- 85000172003Not stockedConnector cpl.×1
- ELBOW CPL. - 5000174137×2
- ELBOW CP. - 5000174138×1
- FITTING-TEE - 5000174151×2
- NUT M6 X 1 - 5000161894×2
- NUT M8 X 1.25 - 5000161895×3
- 145000161907Not stockedWasher×4
- CLIP - 5000174389×1
- BOLT M6 X 1 - 5000162363×2
- CLAMP-HOSE - 5000162046×2
- washer - 5000162058×4
- 205000174199Not stockedCoil cpl.×1
