RD24e-100

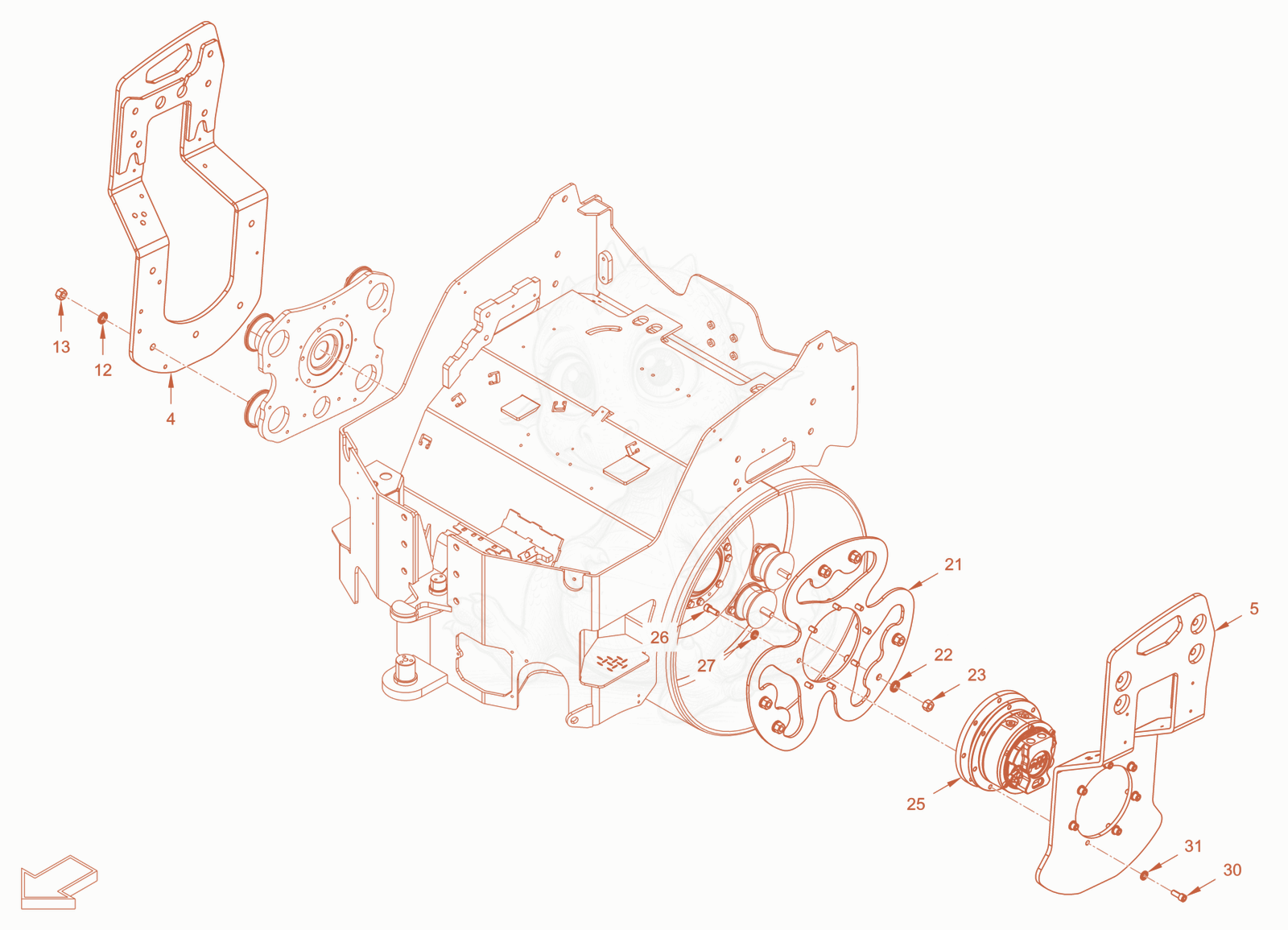

RD24-100E mounting Diagram

Exploded parts diagram of the mounting of a Wacker Neuson RD24-100E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 45100012025Price
    Bow plate - 5100012025×1
  • 55100012026Price
    Bow plate - 5100012026×1
  • 125100012969Price
    Locking washer - 5100012969×4
  • 135100012405Price
    Hexagon nut - 5100012405×4
  • 215100053011Price
    driver - 5100053011×1
  • 225100012969Price
    Locking washer - 5100012969×6
  • 235100012405Price
    Hexagon nut - 5100012405×6
  • 255100076290Not stocked
    gear hub motor×1
  • 265100048107Not stocked
    cheese-head screw×8
  • 275100012968Price
    Locking washer - 5100012968×8
  • 305100048107Not stocked
    cheese-head screw×7
  • 315100012968Price
    Locking washer - 5100012968×7
