RD24-100 C Tandem Rollers

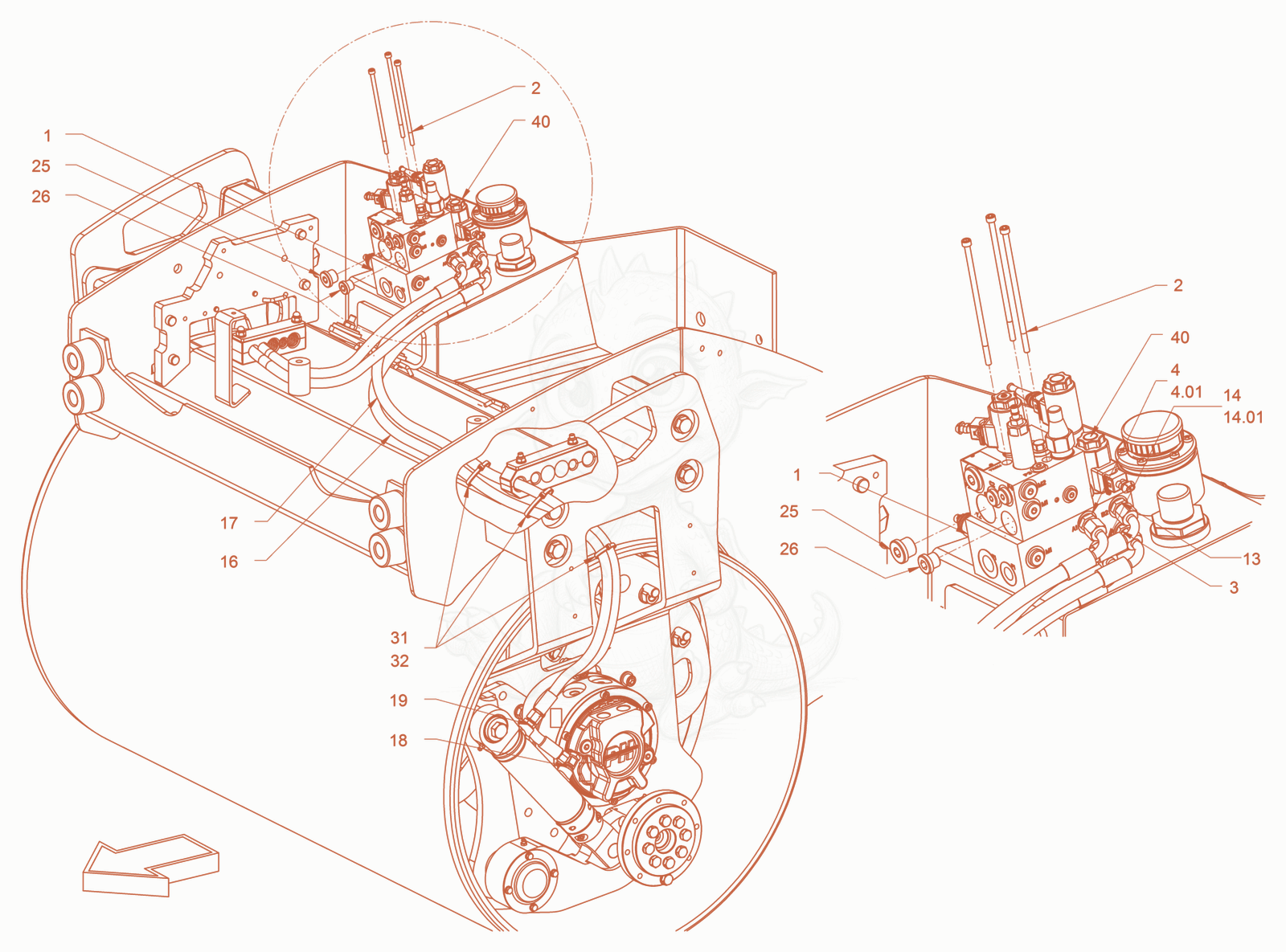

RD24-100C hydraulic system (edge pressing and cutting device) Diagram
- 15100012385Not stockedValve block×1
- 25100012332Not stockedCheese-head screw×3
- Straight screwed socket - 5100013474×2
- 45100033240Not stockedstraight screwed socket×1
- 45100033239Not stockednozzle×1
- Straight screwed socket - 5100013474×2
- 145100033240Not stockedstraight screwed socket×1
- 145100033239Not stockednozzle×1
- 165100012980Not stockedFlexible tubing×1
- 175100012982Not stockedFlexible tubing×1
- 185100013171Not stockedBanjo×1
- 195100013492Not stockedStraight screwed socket×1
- Screw plug - 5100011665×1
- Screw plug - 5100011855×1
- Wire fastener - 5100013429×20
- Wire fastener - 5100013573×20
- 405100012387Not stockedSolenoid valve×1
