RD18-80 Tandem Roller

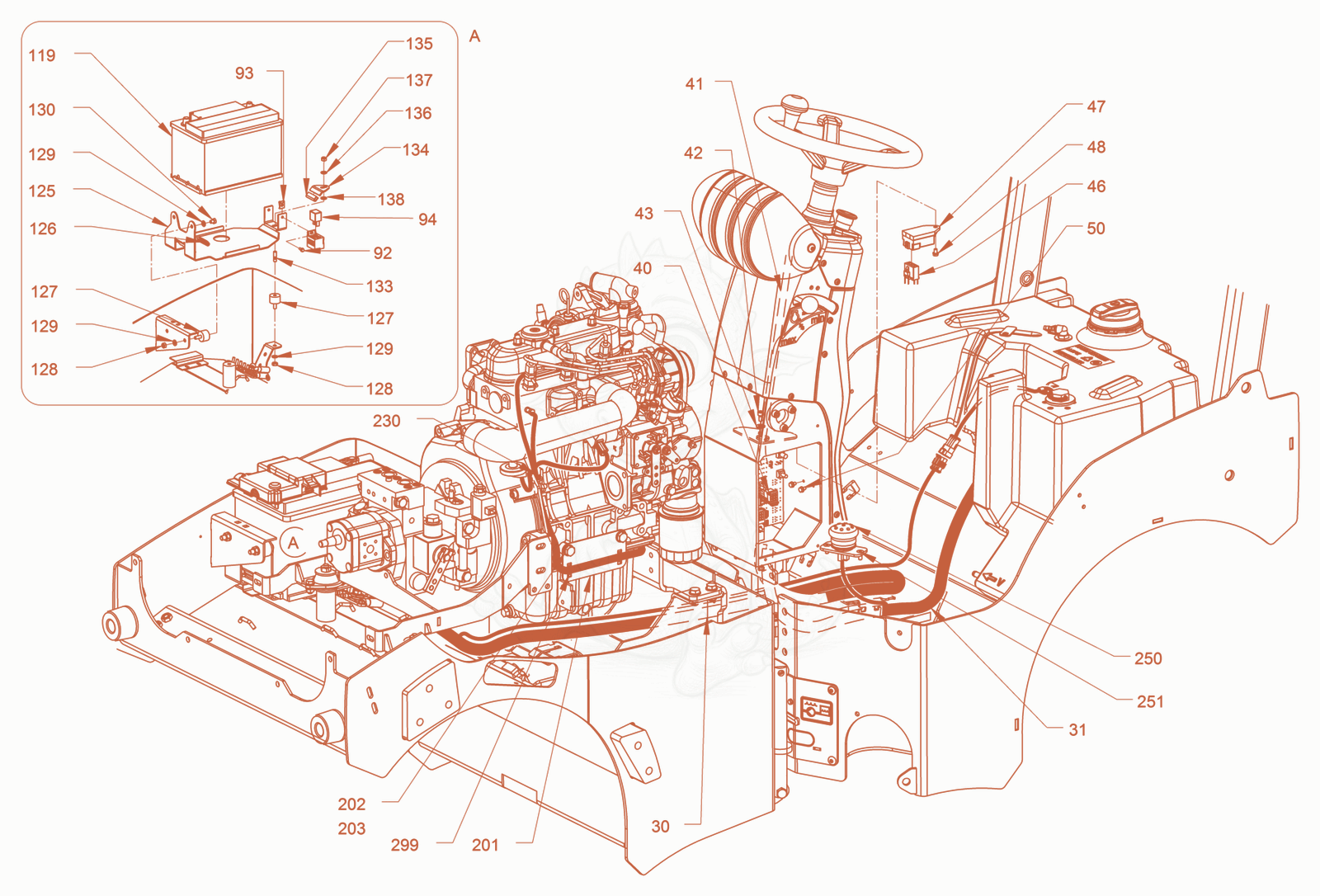

RD18-80 electrical system Diagram
- Wire harness (front frame) - 5100012757Unknown×1
- 305100058637Not stockedwire harness front frame×1
- Wire harness (rear frame) - 5100012758×1
- Wire harness - 5100012575×1
- Wire harness - 5100012573×1
- 425100052958Not stockedcheese-head screw×1
- Locking washer - 5100012965×1
- Wire harness - 5100012574×1
- 475100012584Not stockedRelay×1
- Safety screw - 5100013594×1
- Safety screw - 5100013594×2
- Safety screw - 5100012587×1
- Clip nut - 5100013599×1
- Relay - 5100011859×1
- Battery - 5100012544×1
- Metal plate - 5100012335×1
- Edge protection - 5100013412×0.04
- Rubber buffer - 5100013550×3
- Hexagon nut - 5100012546×3
- Locking washer - 5100012966×5
- hexagon screw - 5100035056×2
- Stud bolt - 5100011471×1
- Metal plate - 5100011696×1
- Edge protection - 5100013412×0.04
- Washer - 5100013094×1
- Hexagon nut - 5100012546×1
- Washer - 5100013094×1
- Bracket - 5100012242×1
- Hexagon screw - 5100012551×2
- Locking washer - 5100012967×2
- Pipe clip - 5100011465×1
- Foot switch - 5100013650×1
- Countersunk screw - 5100012890×2
- Wire fastener - 5100013573×10
