RD18-80.3

RD18-80.3 electrical system Diagram

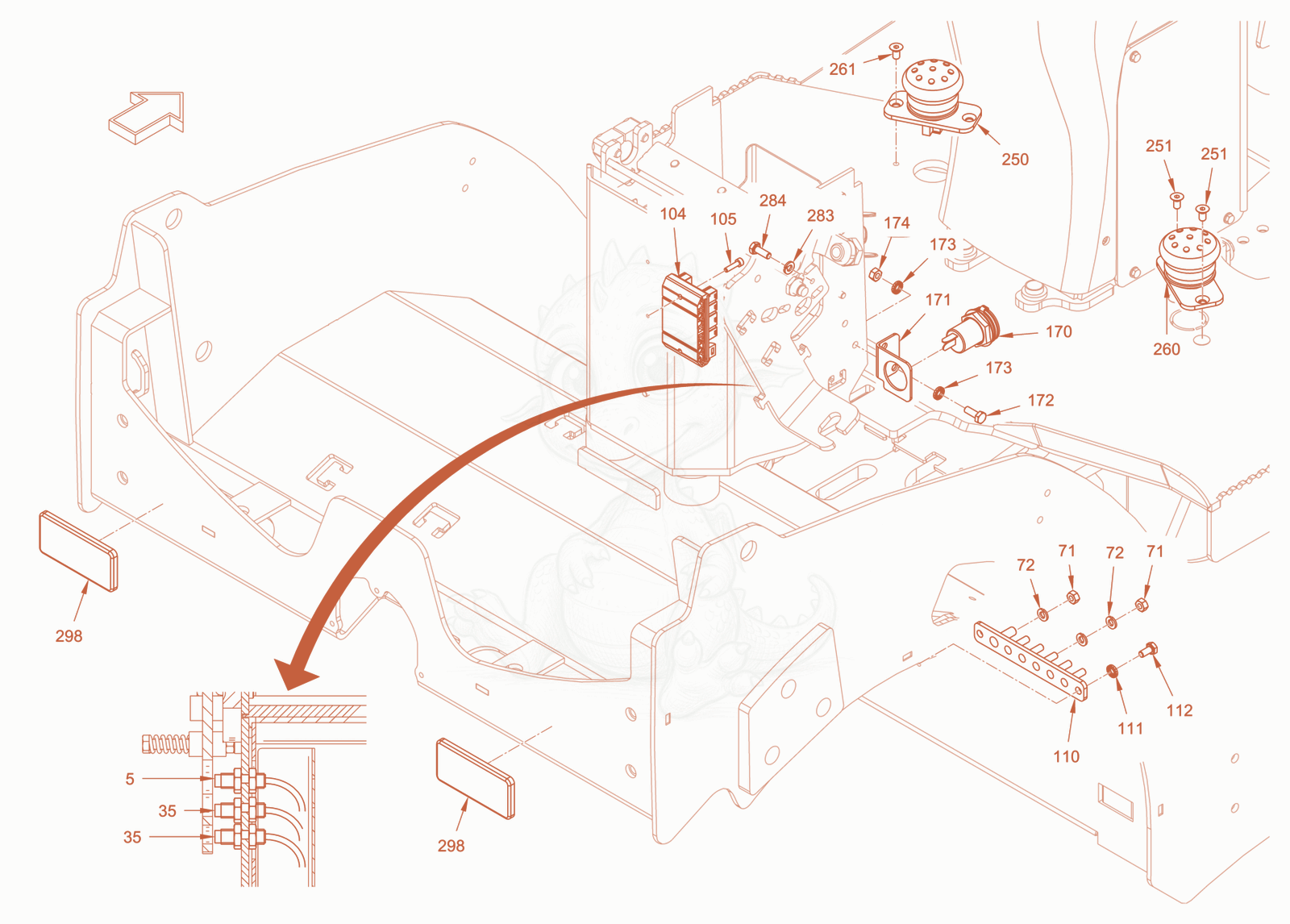

Exploded parts diagram of the electrical system of a Wacker Neuson RD18-80.3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 55100059504Price
    proximity switch - 5100059504×1
  • 355100059507Price
    proximity switch - 5100059507×1
  • 715100011914Price
    Hexagon nut - 5100011914×5
  • 725100023629Price
    spring ring - 5100023629×9
  • 1045100012804Price
    Circuit board - 5100012804×1
  • 1055100013606Price
    Cheese-head screw - 5100013606×2
  • 1105100011974Price
    Ground terminal - 5100011974×2
  • 1115100012965Price
    Locking washer - 5100012965×4
  • 1125100012572Not stocked
    Hexagon screw×4
  • 1705100011849Price
    Built-in socket - 5100011849×1
  • 1715100012093Price
    Metal plate - 5100012093×1
  • 1725100012600Price
    Hexagon screw - 5100012600×2
  • 1735100012965Price
    Locking washer - 5100012965×4
  • 1745100012545Price
    Hexagon nut - 5100012545×2
  • 2505100013650Price
    Foot switch - 5100013650×1
  • 2515100012890Price
    Countersunk screw - 5100012890×2
  • 2605100013650Price
    Foot switch - 5100013650×1
  • 2615100012890Price
    Countersunk screw - 5100012890×2
  • 2835100023629Price
    spring ring - 5100023629×1
  • 2845100052960Not stocked
    hexagon screw×1
  • 2985100011748Price
    Rear reflector - 5100011748×2
