RD18-100c.3

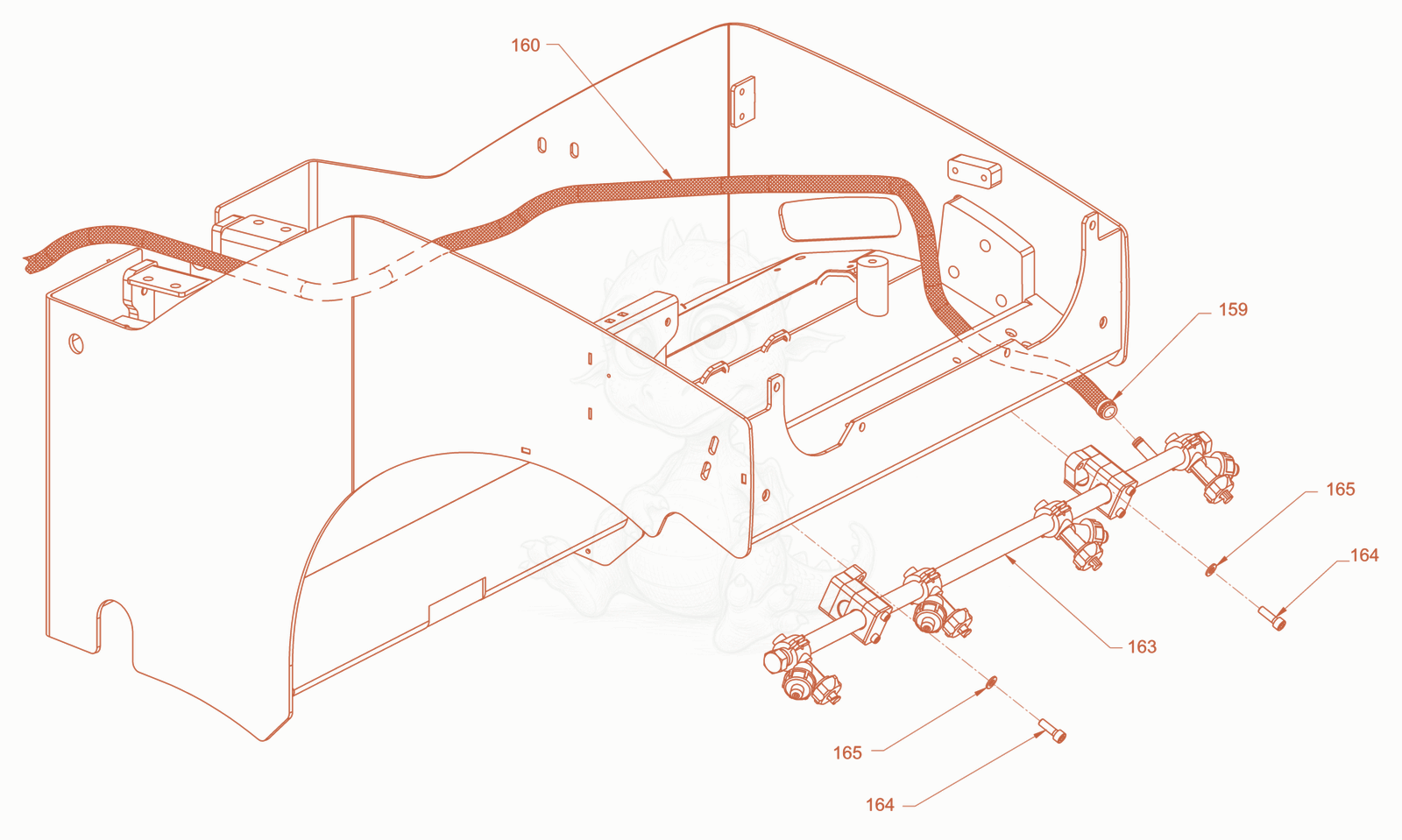

RD18-100C.3 sprinkling Diagram

Exploded parts diagram of the sprinkling of a Wacker Neuson RD18-100C.3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1595100013367Price
    Hose clip - 5100013367×2
  • 1605100013639Price
    Flexible tubing - 5100013639×1.5
  • 1635100013169Price
    Sprinkler pipe - 5100013169Unknown×1
  • 1635100068767Not stocked
    sprinkler pipe×1
  • 1645100012727Price
    Cheese-head screw - 5100012727×2
  • 1655100012966Price
    Locking washer - 5100012966×2
