RD18-100 Tandem Roller

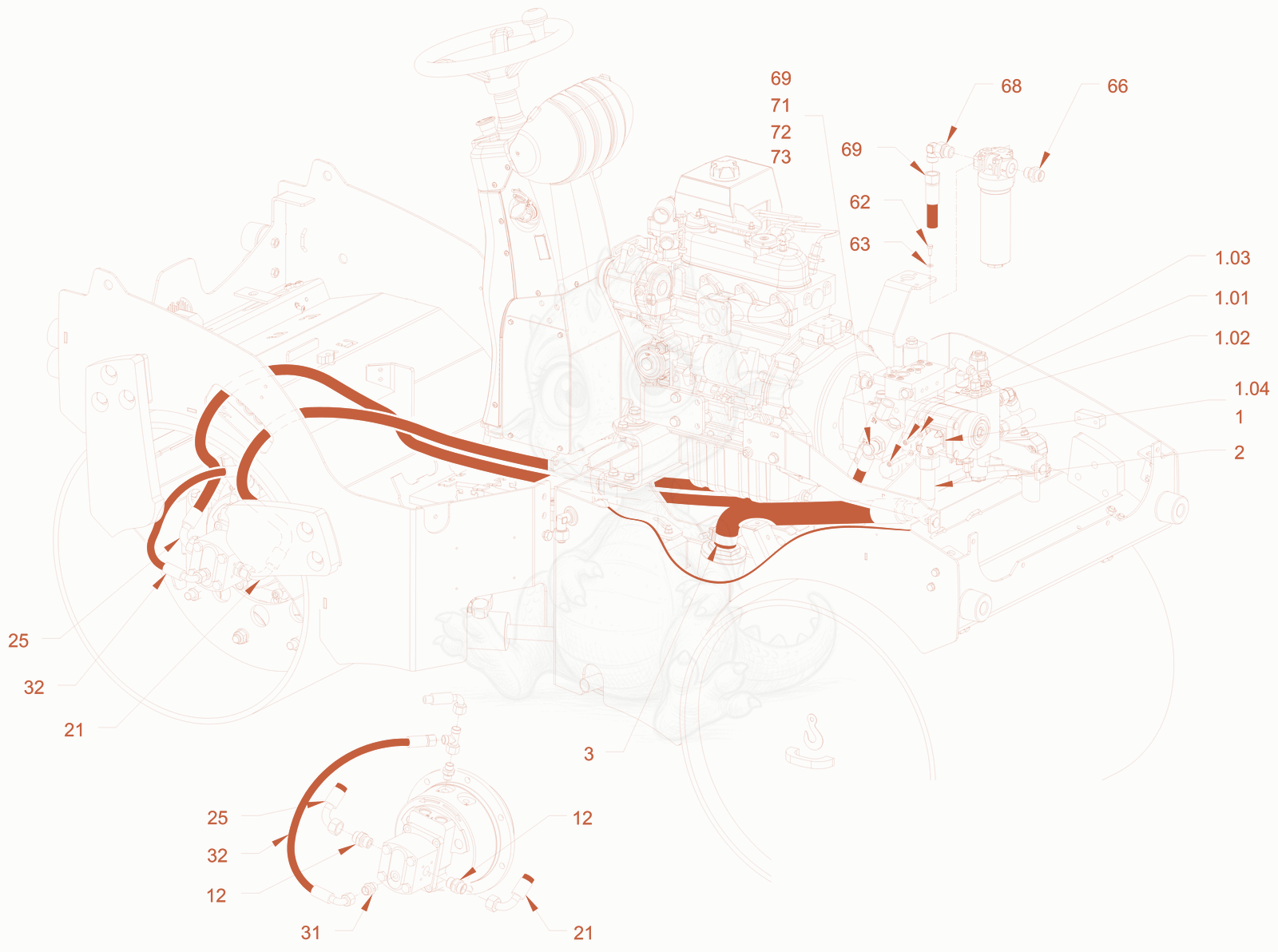

RD18-100 vibration drive Diagram
- Angle flange screwing - 5100013218×1
- O-ring seal - 5100011500×1
- Cheese-head screw - 5100012723×2
- 15100012942Not stockedSpring ring×4
- Cheese-head screw - 5100013497×2
- Flexible tubing - 5100012719×1
- Hose clip - 5100011896×1
- Straight screwed socket - 5100013476×2
- 215100012740Not stockedFlexible tubing×1
- Flexible tubing - 5100012749×1
- Flexible tubing - 5100012735×1
- Flexible tubing - 5100012745×1
- Straight screwed socket - 5100013447×1
- flexible tubing - 5100016850×1
- Hexagon screw - 5100012517×4
- Locking washer - 5100012966×4
- Straight screwed socket - 5100013476×1
- Elbow adjustable - 5100012540×1
- Hollow-core screw - 5100012729×1
- Sealing ring - 5100013001×1
- Sealing ring - 5100013001×1
