RD11AEC ROLLER,DOUBLE DRUM

RD11AEC Engine Compartment/Hydraulics Diagram

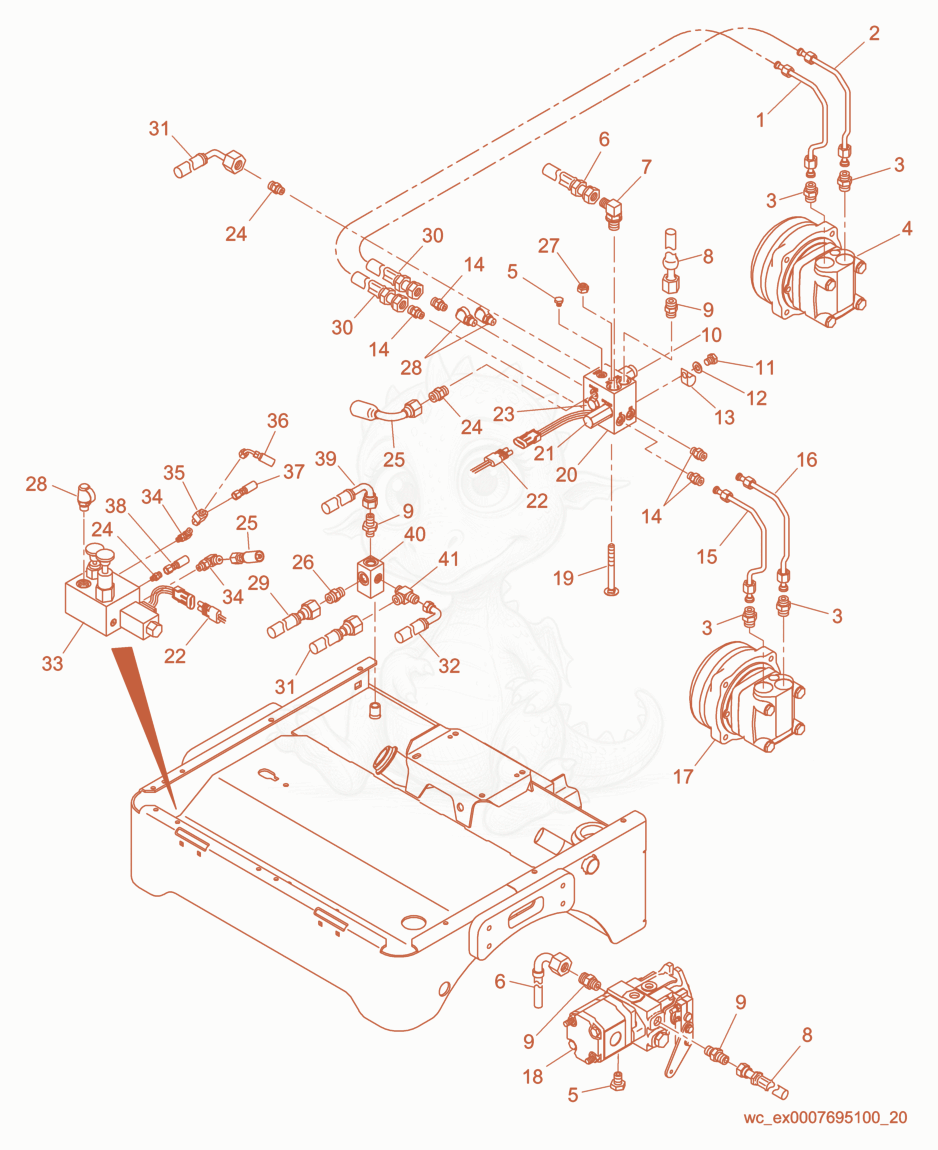

Exploded parts diagram of the Engine Compartment/Hydraulics of a Wacker Neuson RD11AEC, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000111270Not stocked
    Tube×1
  • 25000111271Not stocked
    Tube×1
  • 35000112404Not stocked
    Fitting×4
  • 35000080734Price
    O-RING .924 X.116 DURO90 3-912 - 5000080734×1
  • 35000080737Price
    O-RING .49 X .07 #8 ORFS 2-014 - 5000080737×1
  • 45000111288Not stocked
    Drive motor w/brake×1
  • 55000114590Not stocked
    Plug (threaded)×1
  • 65000111295Not stocked
    Hose cpl.×1
  • 75000111272Price
    FITTING-HYD,SAE #8 90 ELBOW - 5000111272×1
  • 75000080732Price
    O-RING .644 X.087 DURO90 3-908 - 5000080732×1
  • 75000080737Price
    O-RING .49 X .07 #8 ORFS 2-014 - 5000080737×1
  • 85000111296Not stocked
    Hose cpl.×1
  • 95000081583Price
    FITTING #8 - 5000081583×4
  • 95000080737Price
    O-RING .49 X .07 #8 ORFS 2-014 - 5000080737×1
  • 95000080732Price
    O-RING .644 X.087 DURO90 3-908 - 5000080732×1
  • 105000118669Not stocked
    Valve×1
  • 115000014663Price
    SCREW M6 X 16 HX.HD. - 5000014663×1
  • 125000010624Price
    WASHER B6.4 FLAT - 5000010624×1
  • 135000111274Price
    CLAMP-HOSE - 5000111274×1
  • 145000078816Price
    FITTING-MALE ADAPTER,STRAIGHT - 5000078816×4
  • 155000111268Not stocked
    Tube×1
  • 165000111269Not stocked
    Tube×1
  • 175000111287Price
    MOTOR-WHEEL W/BRAKE - 5000111287×1
  • 185000111062Not stocked
    Hydraulic pump×1
  • 195000119309Not stocked
    Carriage bolt×1
  • 205000118385Not stocked
    Manifold×1
  • 215000111273Price
    VALVE-SOLENOID,N.O. - 5000111273×1
  • 225000152768Not stocked
    Wiring harness×1
  • 235000118668Price
    VALVE-SHUTTLE #8 - 5000118668×1
  • 245000111282Price
    FITTING-HYD,SAE #4 - 5000111282×2
  • 255000118666Price
    HOSE-ASSEMBLY - 5000118666×1
  • 265000111276Price
    FITTING-HYD,SAE #6-8 - 5000111276×1
  • 265000080732Price
    O-RING .644 X.087 DURO90 3-908 - 5000080732×1
  • 265000080736Price
    O-RING .36 X .07 #6 ORFS 2-012 - 5000080736×1
  • 275000010365Price
    NUT-LOCK M10 HEX. - 5000010365×1
  • 285000160864Price
    FITTING-TEST W/METAL CAP - 5000160864×3
  • 295000111307Not stocked
    Hose cpl.×1
  • 305000111353Price
    HOSE-ASSEMBLY - 5000111353×2
  • 315000118667Not stocked
    Hose cpl.×1
  • 325000111305Not stocked
    Hose cpl.×1
  • 335000111289Not stocked
    Manifold×1
  • 345000111285Price
    FITTING-HYD,SAE #4 90 ELBOW - 5000111285×2
  • 345000080730Price
    O-RING .351 X.072 DURO90 3-904 - 5000080730×1
  • 345000112267Price
    O-RING .30 X .07 #4 ORFS 2-011 - 5000112267×1
  • 355000111280Price
    FITTING-HYD,SAE#4 SWVL RUN TEE - 5000111280×1
  • 355000112267Price
    O-RING .30 X .07 #4 ORFS 2-011 - 5000112267×2
  • 365000111309Not stocked
    Hose cpl.×1
  • 375000111310Not stocked
    Hose cpl.×1
  • 385000111308Not stocked
    Hose cpl.×1
  • 395000111302Not stocked
    Hose cpl.×1
  • 405000111084Price
    MANIFOLD-RETURN - 5000111084×1
  • 415000111278Price
    FITTING-HYD,SAE #4 RUN TEE - 5000111278×1
  • 415000080730Price
    O-RING .351 X.072 DURO90 3-904 - 5000080730×1
  • 415000112267Price
    O-RING .30 X .07 #4 ORFS 2-011 - 5000112267×1
