RD10 ROLLER,DOUBLE DRUM

RD10 Road Electric System Diagram

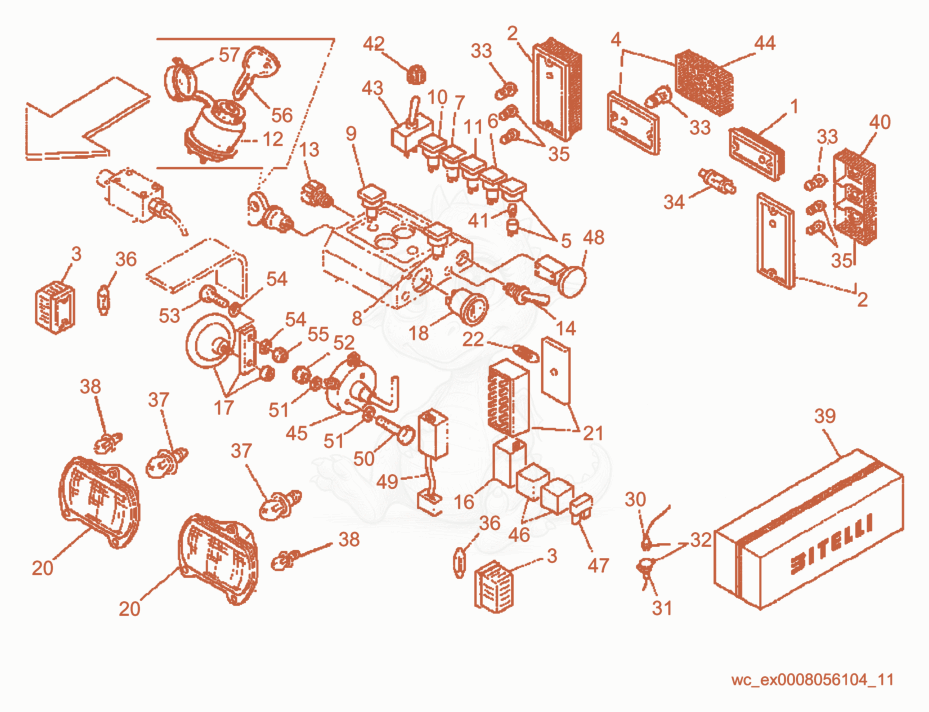

Exploded parts diagram of the Road Electric System of a Wacker Neuson RD10, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000113290Not stocked
    Light×1
  • 25000112515Not stocked
    Light×2
  • 35000112517Not stocked
    Light×2
  • 45000112510Price
    LIGHT - 5000112510×1
  • 55000114471Price
    Light-warning - 5000114471×1
  • 65000114456Price
    Light-warning - 5000114456×1
  • 75000114457Price
    Light-warning - 5000114457×1
  • 85000114458Price
    Light-warning - 5000114458×1
  • 95000114459Price
    LIGHT-WARNING - 5000114459×1
  • 105000114460Price
    Light-warning - 5000114460×1
  • 115000114461Not stocked
    Light×1
  • 125000113294Not stocked
    Block×1
  • 135000114462Price
    Switch - 5000114462×1
  • 145000113300Price
    INDICATOR - 5000113300×1
  • 155000113284Not stocked
    Light×2
  • 165000113303Not stocked
    Indicator×1
  • 175000112554Not stocked
    Horn×1
  • 185000119297Price
    HOURMETER - 5000119297×1
  • 195000112559Price
    SWITCH-PRESSURE - 5000112559×1
  • 205000112519Price
    LIGHT-COMPLETE - 5000112519×2
  • 215000112557Not stocked
    Fuse box×1
  • 225000113302Price
    FUSE 8A - 5000113302×4
  • 225000112867Price
    FUSE 16A - 5000112867×1
  • 315000112864Price
    Receptacle - 5000112864×1
  • 325000113295Not stocked
    Receptacle (socket)×1
  • 335000112539Price
    LIGHT - 5000112539×3
  • 345000112535Not stocked
    Light×1
  • 355000112537Not stocked
    Light×4
  • 365000113293Price
    LIGHT - 5000113293×2
  • 375000112541Not stocked
    Light×2
  • 385000112537Not stocked
    Light×2
  • 395000113305Not stocked
    Electrical Kit×1
