Single drum soil compactor RC70

RC70 Brake Hydraulics Diagram

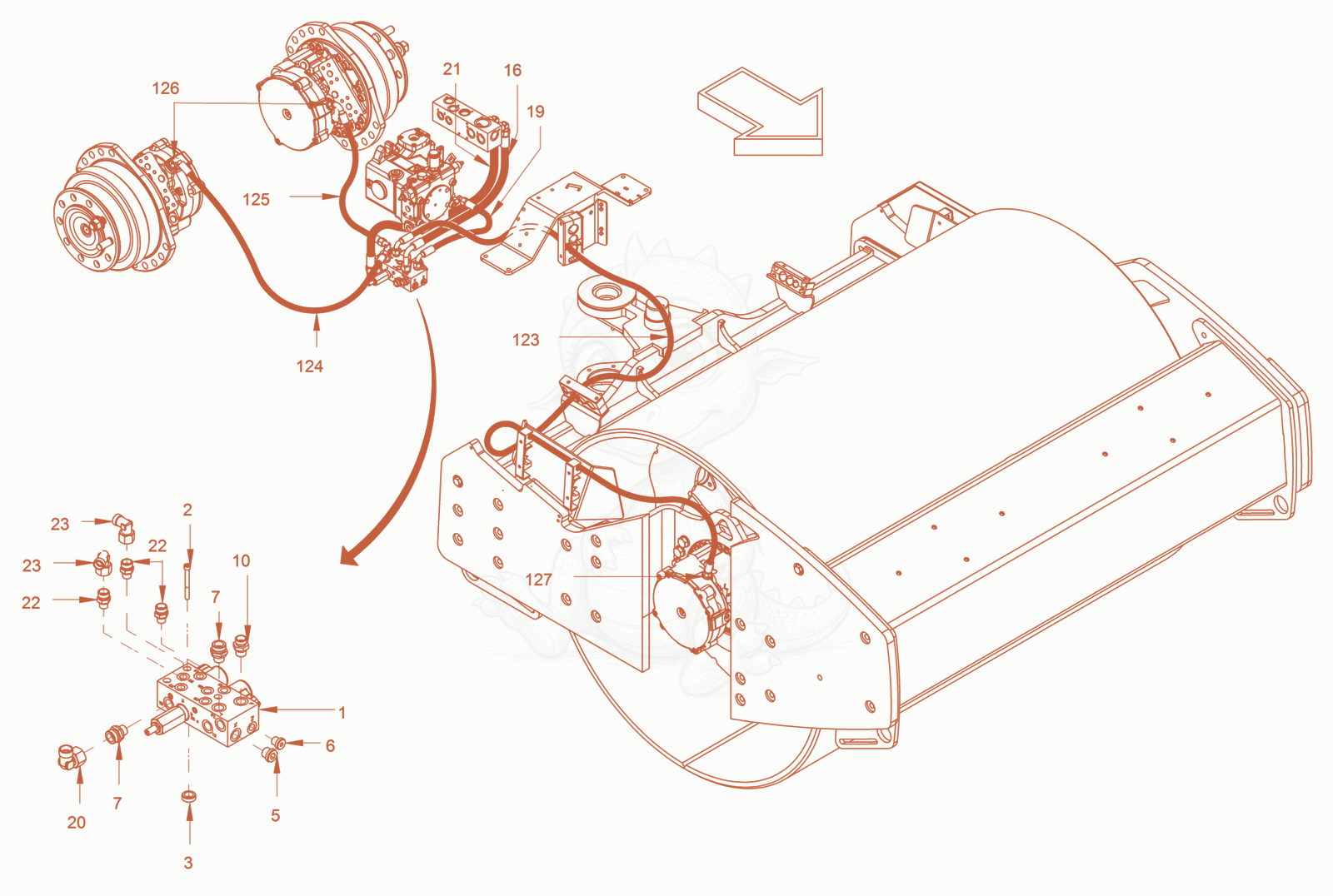

Exploded parts diagram of the Brake Hydraulics of a Wacker Neuson RC70, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100023341Price
    valve block - 5100023341×1
  • 25100022982Price
    cheese-head screw - 5100022982×3
  • 35100023077Price
    u-washer - 5100023077×3
  • 55100011855Price
    Screw plug - 5100011855×1
  • 65100011608Price
    Screw plug - 5100011608×1
  • 75100013603Price
    Straight screwed socket - 5100013603×2
  • 105100013475Price
    Straight screwed socket - 5100013475×1
  • 165100023518Not stocked
    Hose×1
  • 195100022981Price
    hose - 5100022981×1
  • 205100013483Price
    Elbow adjustable - 5100013483×1
  • 215100023111Price
    hose - 5100023111×1
  • 225100013616Price
    Straight screwed socket - 5100013616×3
  • 235100013619Price
    Elbow adjustable - 5100013619×2
  • 1235100023473Price
    hose - 5100023473Unknown×1
  • 1235100023644Not stocked
    Hose×1
  • 1245100022978Not stocked
    Hose×1
  • 1245100023276Price
    hose - 5100023276×1
  • 1255100023456Not stocked
    Hose×1
  • 1255100023592Not stocked
    Hose×1
  • 1265100013472Price
    Straight screwed socket - 5100013472×2
  • 1275100013472Price
    Straight screwed socket - 5100013472×1
