RC50

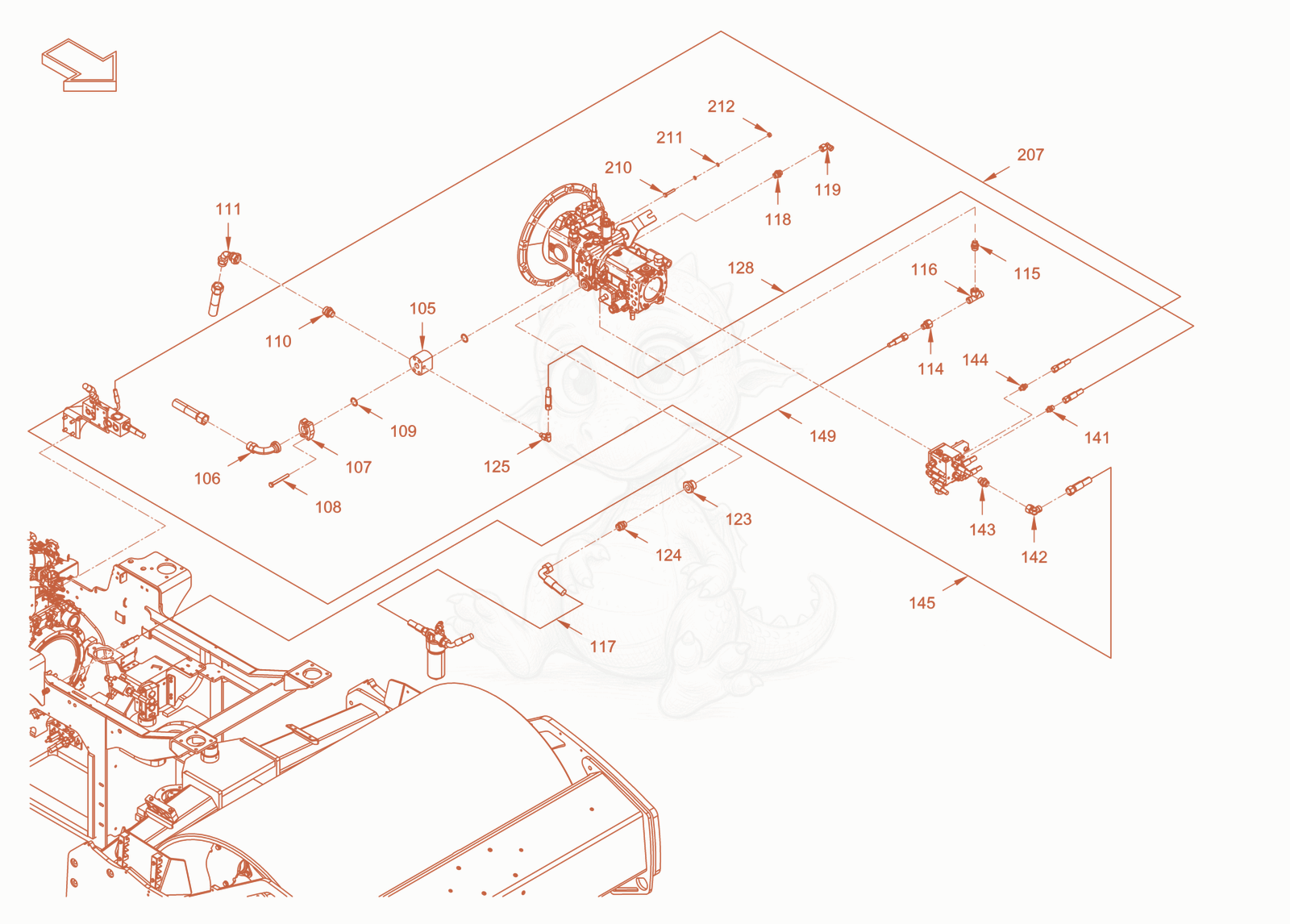

RC50DPFROPS advance drive Diagram

Exploded parts diagram of the advance drive of a Wacker Neuson RC50DPFROPS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1055100022957Price
    joint plate - 5100022957×1
  • 1065100023037Price
    pipe elbow - 5100023037×1
  • 1075100013430Price
    Sae-flange half - 5100013430×2
  • 1085100022991Price
    hexagon screw - 5100022991×4
  • 1095100013431Price
    O-ring seal - 5100013431×2
  • 1105100023103Price
    straight screwed socket - 5100023103×1
  • 1115100023601Not stocked
    Intermediate piece×1
  • 1145100022888Price
    reducing insert - 5100022888×1
  • 1155100013473Price
    Straight screwed socket - 5100013473×1
  • 1165100013480Price
    T-piece adjustable - 5100013480×1
  • 1175100070760Not stocked
    hose×1
  • 1185100022945Price
    straight screwed socket - 5100022945×1
  • 1195100013619Price
    Elbow adjustable - 5100013619×1
  • 1235100012091Price
    Reducing piece - 5100012091×1
  • 1245100013471Price
    Straight screwed socket - 5100013471×1
  • 1255100070771Not stocked
    elbow adjustable×1
  • 1285100070782Not stocked
    hose×1
  • 1415100013474Price
    Straight screwed socket - 5100013474×2
  • 1425100013483Price
    Elbow adjustable - 5100013483×1
  • 1435100013476Price
    Straight screwed socket - 5100013476×1
  • 1445100013454Price
    Straight screwed socket - 5100013454×1
  • 1455100070793Not stocked
    hose×1
  • 1495100070804Not stocked
    hose×1
  • 2075100070815Not stocked
    hose×1
  • 2105100034968Price
    hexagon screw - 5100034968×1
  • 2115100013441Price
    Locking washer - 5100013441×2
  • 2125100012546Price
    Hexagon nut - 5100012546×1
