Compactor RC110p US Rops

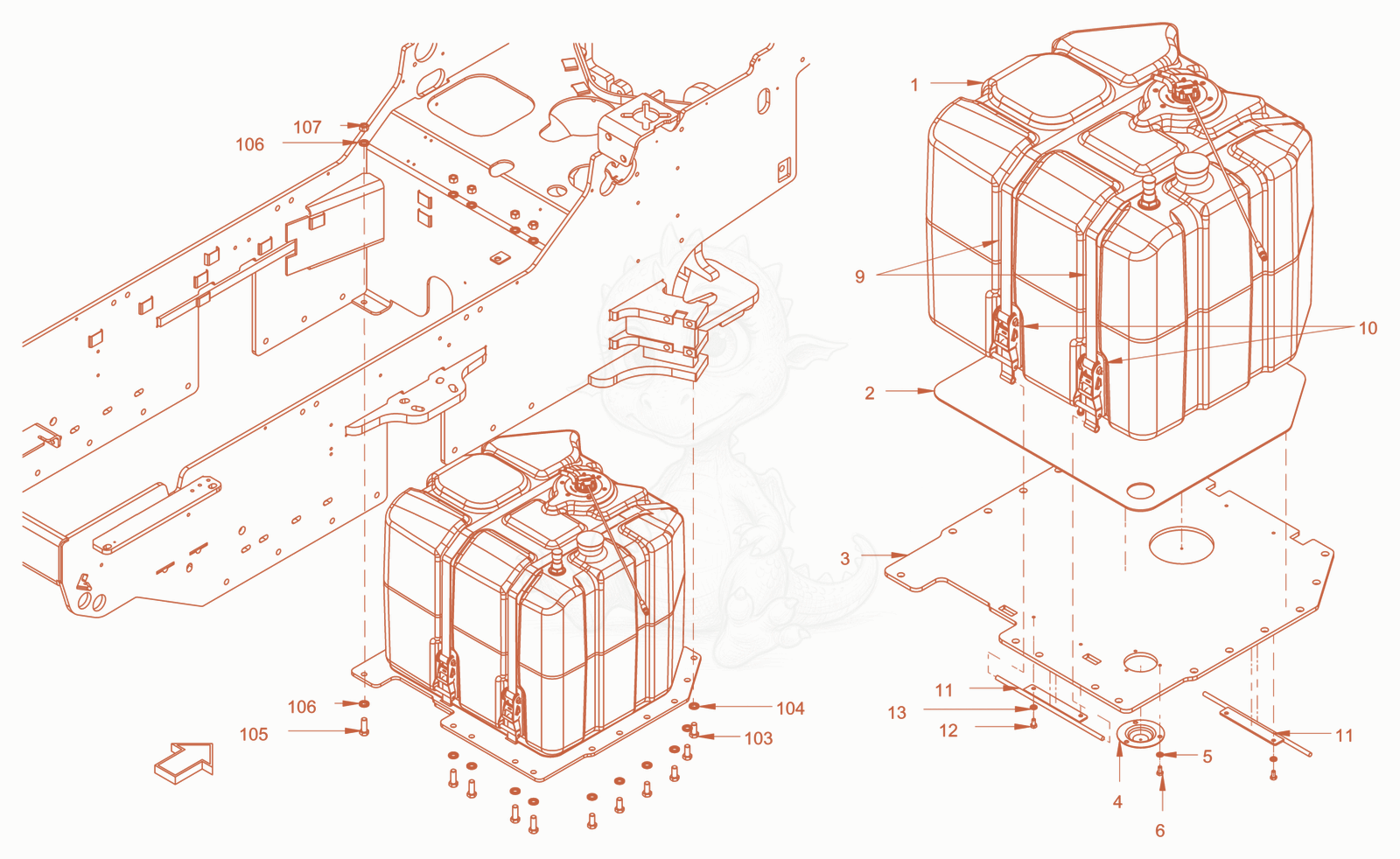

RC110PUSROPS fuel system Diagram
- fuel tank - 5100064038×1
- 25100064042Not stockedinsulating mat×1
- 35100064044Not stockedmetal plate×1
- 45100064046Not stockedlid×1
- Hexagon screw - 5100012515×3
- Locking washer - 5100012966×3
- 95100034888Not stockedlashing strap×2
- 105100034889Not stockedsupporting plate×2
- 115100034890Not stockedholder system×2
- Hexagon screw - 5100012515×4
- Locking washer - 5100012966×4
- hexagon screw - 5100034690×12
- Locking washer - 5100012969×12
- hexagon screw - 5100023047×5
- Locking washer - 5100012969×10
- Hexagon nut - 5100012405×5
