RC110P

RC110P cooling (engine/hydraulic oil) Diagram

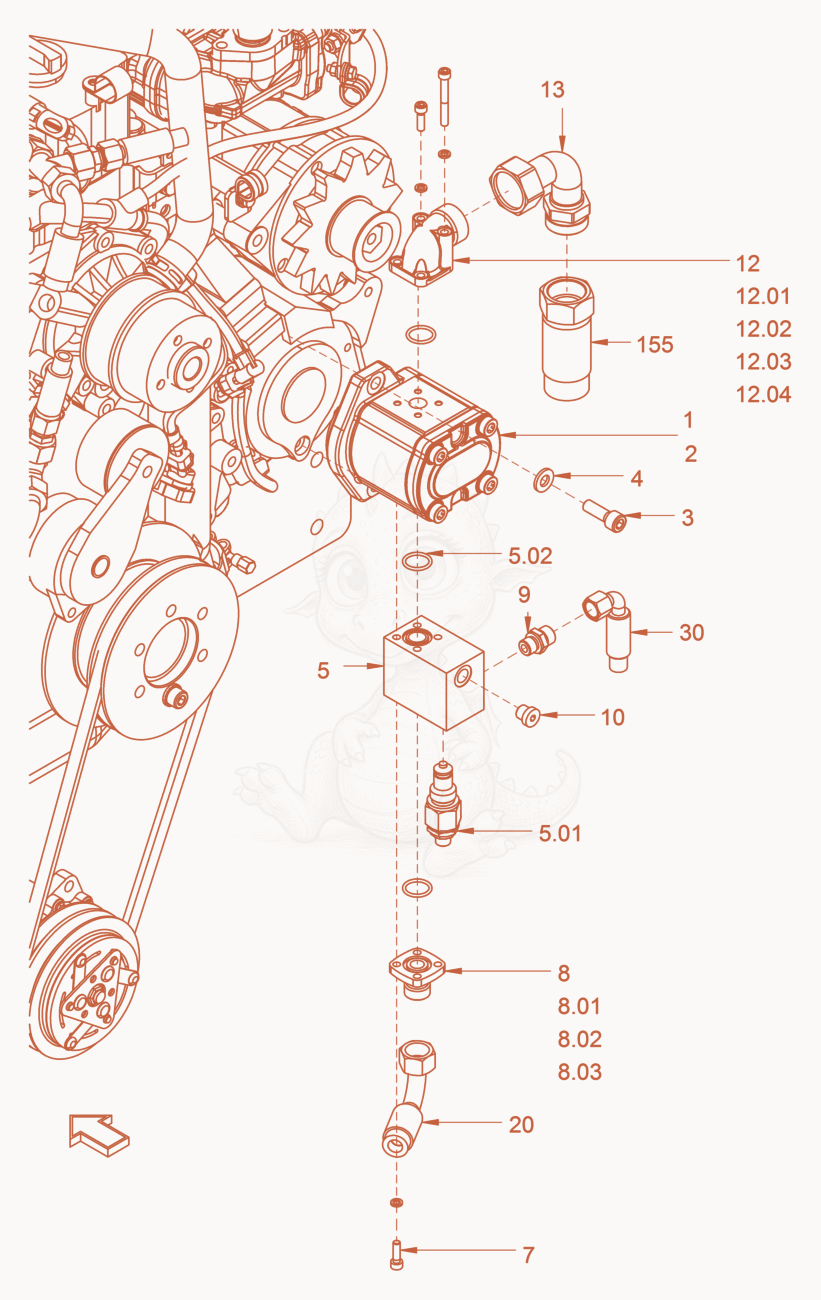

Exploded parts diagram of the cooling (engine/hydraulic oil) of a Wacker Neuson RC110P, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100035032Price
    gear pump - 5100035032×1
  • 25100035033Price
    sealing - 5100035033×1
  • 35100013463Price
    Cheese-head screw - 5100013463×2
  • 45100013440Price
    Locking washer - 5100013440×2
  • 55100013436Price
    O-ring seal - 5100013436×1
  • 55100035034Price
    valve block - 5100035034×1
  • 55100035035Price
    pressure-relief valve - 5100035035×1
  • 75100013527Price
    Cheese-head screw - 5100013527×4
  • 85100013612Price
    O-ring seal - 5100013612×1
  • 85100012942Not stocked
    Spring ring×4
  • 85100012723Price
    Cheese-head screw - 5100012723×4
  • 85100012220Price
    Straight flange joint - 5100012220×1
  • 95100013492Not stocked
    Straight screwed socket×1
  • 105100022914Price
    locking screw - 5100022914×1
  • 125100011500Price
    O-ring seal - 5100011500×1
  • 125100013218Price
    Angle flange screwing - 5100013218×1
  • 125100035036Price
    spring ring - 5100035036×4
  • 125100035037Price
    cheese-head screw - 5100035037×2
  • 125100035038Price
    cheese-head screw - 5100035038×2
  • 135100035039Not stocked
    intermediate piece×1
  • 205100035040Price
    hose - 5100035040×1
  • 305100035026Price
    hose - 5100035026×1
  • 1555100035041Price
    hose - 5100035041×1
