RC110

RC110 additional lighting Diagram

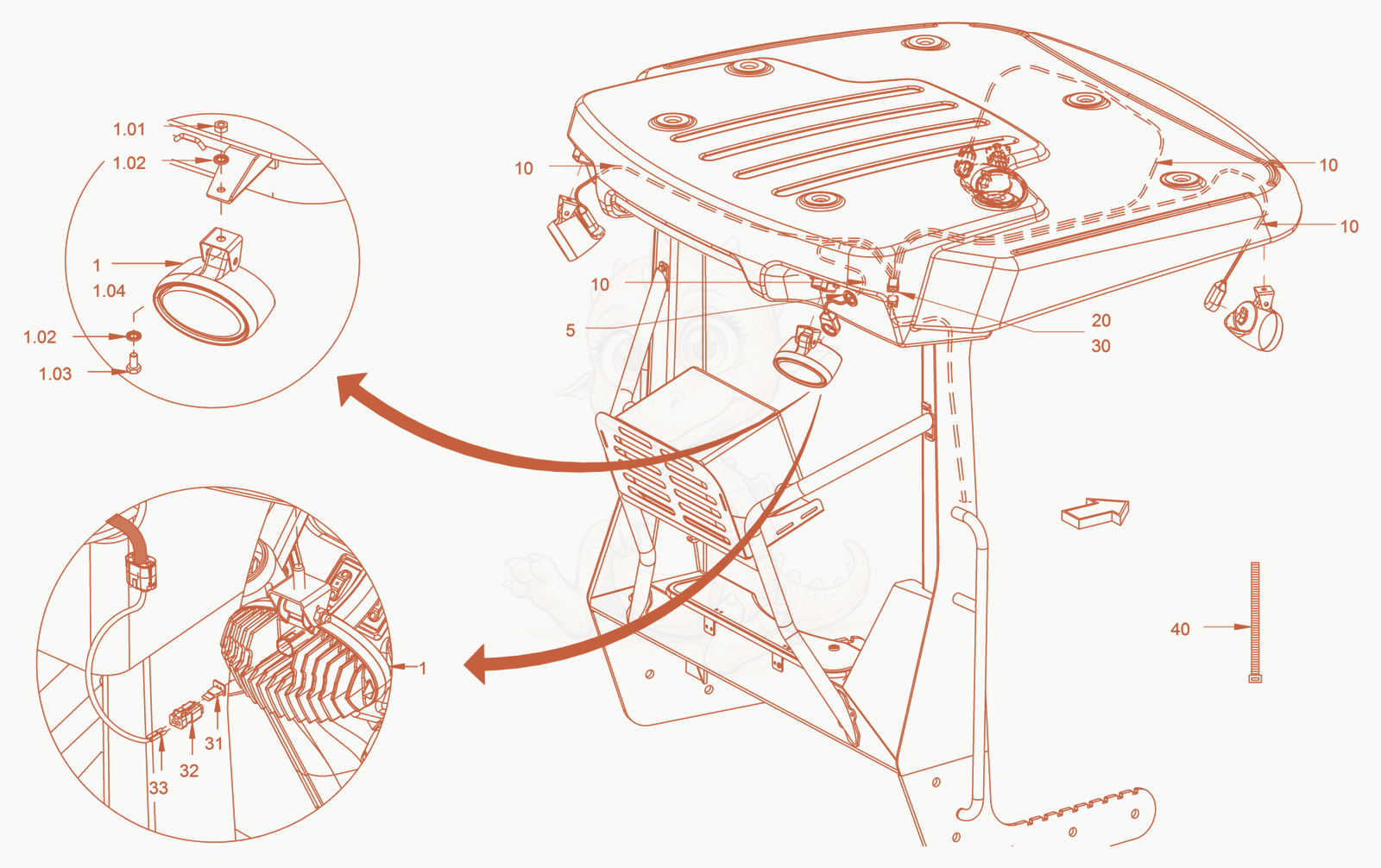

Exploded parts diagram of the additional lighting of a Wacker Neuson RC110, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100011462Price
    Washer - 5100011462×8
  • 15100011479Price
    Hexagon screw - 5100011479×4
  • 15100012620Price
    Lamp - 5100012620×1
  • 15100012924Not stocked
    Hexagon nut×4
  • 15100035699Price
    working light - 5100035699×4
  • 55100035329Price
    cable support sleeve - 5100035329×4
  • 105100035700Price
    cable harness - 5100035700×1
  • 205100025826Price
    fishing box, 4-pole - 5100025826×1
  • 305100025825Price
    flat-pin plug - 5100025825×4
  • 315100035697Price
    fuse - 5100035697×4
  • 325100035696Price
    plug - 5100035696×4
  • 335100035698Not stocked
    contact pin×8
  • 405100013573Price
    Wire fastener - 5100013573×2
