PT4A

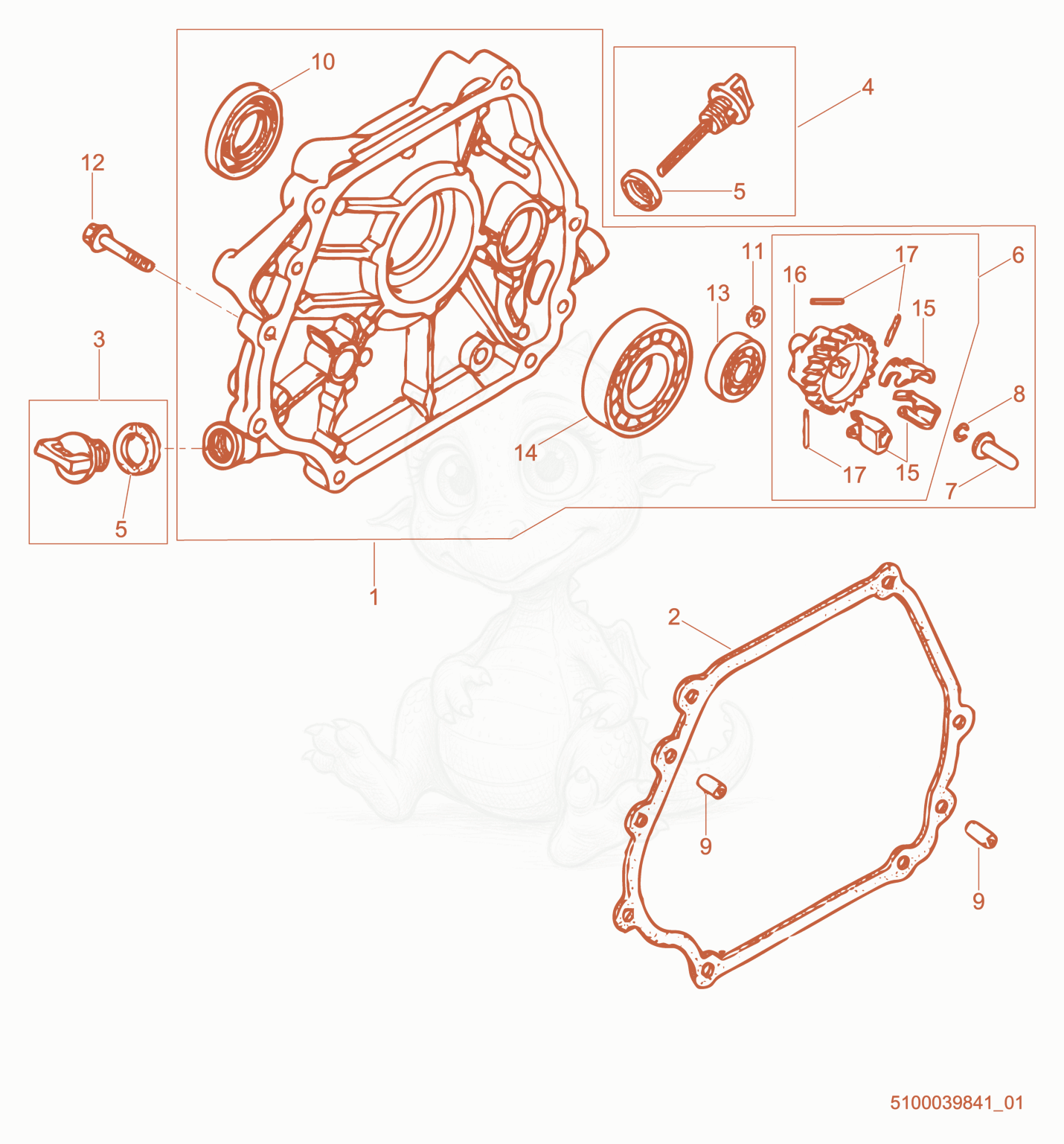

PT4A Crankcase Cover Diagram
- COVER-ASSEMBLY,CRANKCASE - 5100039328×1
- Gasket - 5200000473×1
- CAP-OIL FILLER - 5000162646×1
- Dipstick cpl. - 5000217482×1
- Gasket - 5000162647×2
- GOVERNOR-ASSEMBLY - 5000082828×1
- SLIDER-ENGINE GOVERNOR - 5000074632×1
- RET.RING 7.7MM,FORM C - 5000081615×1
- PIN 8 X 12,DOWEL - 5000081617×2
- Seal-shaft - 5200000471×1
- WASHER 6MM,PLAIN - 5000071639×1
- BOLT-FLANGE 8 X 40 - 5000116734×7
- BEARING-RADIAL BALL,6202 - 5000074640×1
- BEARING-RADIAL BALL,6207 - 5000075801×1
- WEIGHT-GOVERNOR - 5000075788×3
- HOLDER-GOVERNOR WEIGHT - 5000082829×1
- PIN-GOVERNOR WT RETAINER - 5000074634×3
