PT3(I)WW-PUMP

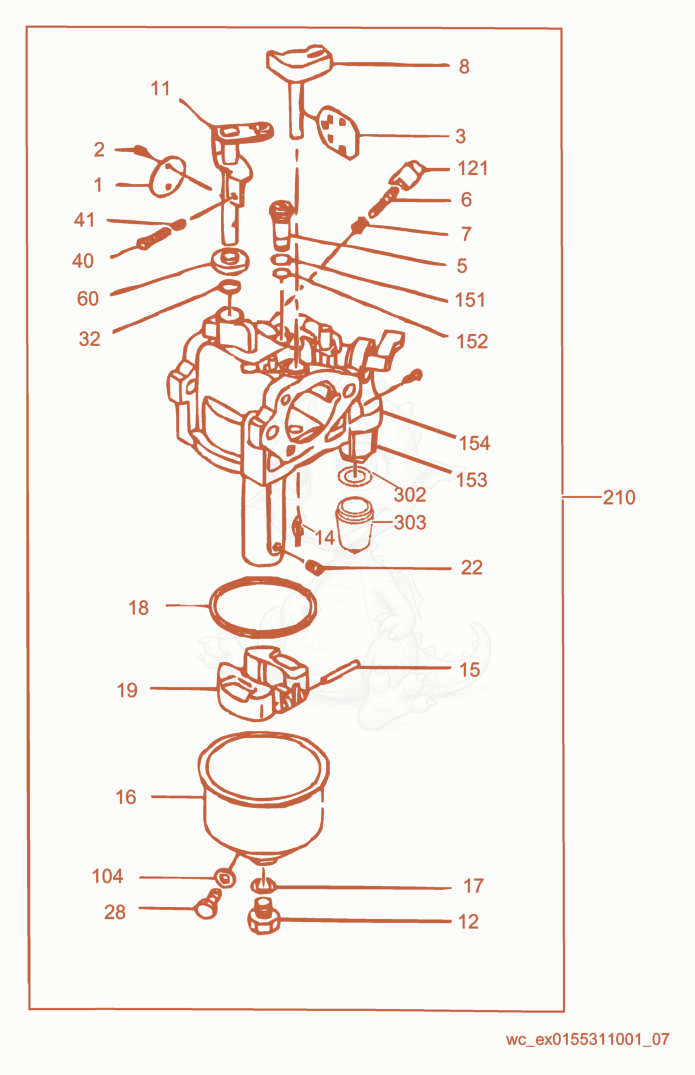

PT3 Carburetor cpl. Diagram
- 15000156618Not stockedThrottle flap×1
- 25000156619Not stockedScrew×2
- VALVE-CHOKE - 5000156620Unknown×1
- 35000217550Not stockedChoke valve×1
- JET-SLOW - 5000156621×1
- 65000156622Not stockedIdle speed screw×1
- 75000156623Not stockedSpring×1
- 85000156624Not stockedChoke shaft×1
- SHAFT-CHOKE - 5000217551×1
- 115000156625Not stockedShaft cpl.×1
- screw - 5000156626×1
- VALVE-NEEDLE - 5000205500×1
- 155000156627Not stockedPin×1
- 165000156628Not stockedFloat housing×1
- GASKET - 5000156629×1
- GASKET - 5000156630×1
- 195000156631Not stockedSet-carburetor float×1
- 225000156632Not stockedMain jet×1
- JET-MAIN #90 - 5000217552×1
- 285000156633Not stockedScrew×1
- 325000156634Not stockedGasket fixing device×1
- 405000156635Not stockedAdjustment screw×1
- 415000156636Not stockedSpring×1
- BUSHING-GUIDE - 5000156637×1
- 1045000156638Not stockedSeal×1
- 1215000156639Not stockedLimiter cap×1
- O-ring - 5000156640×1
- O-ring - 5000156641×1
- 1535000084382Not stockedFilter×1
- 1545000084381Not stockedGasket×1
- CARBURETOR ASSEMBLY - 5000156617×1
- GASKET - 5000208321×1
- 3035000084382Not stockedFilter×1
