PT2V-PUMP

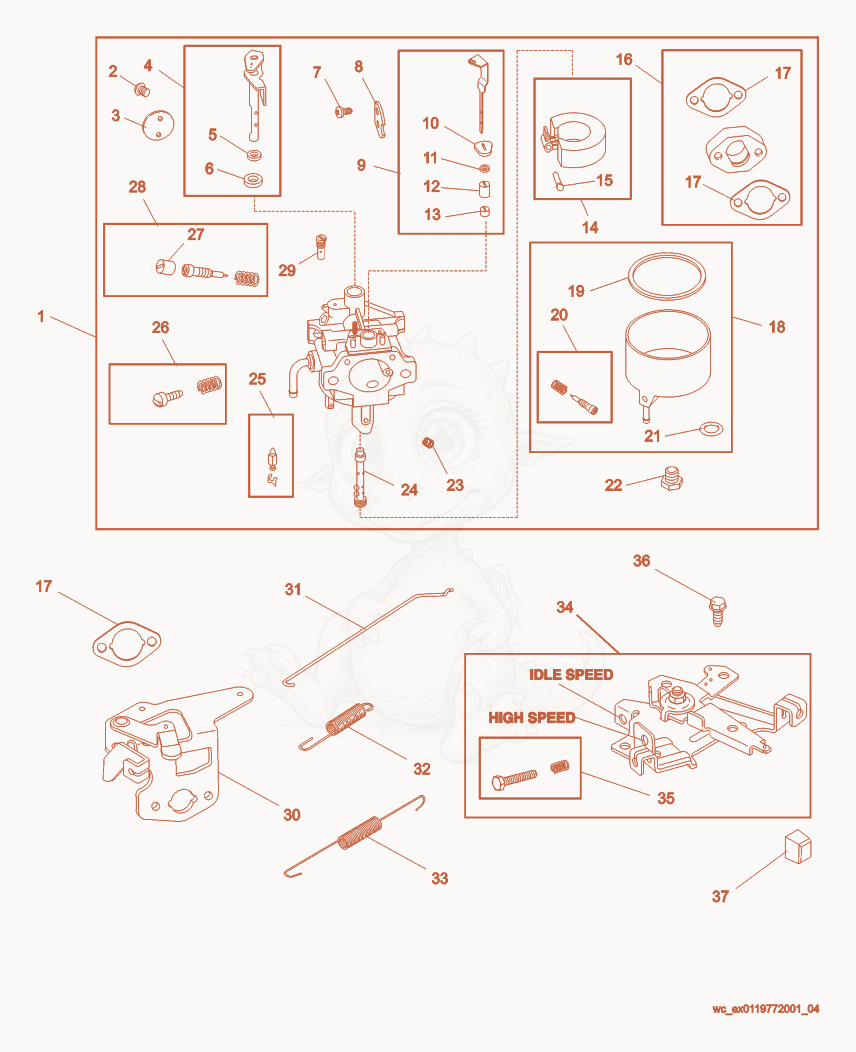

PT2V Carburetor/Control Linkage Diagram
- 15000154696Not stockedCarburetor×1
- 25000110825Not stockedScrew×2
- VALVE-THROTTLE SHUTTER - 5000110833×1
- SHAFT-THROTTLE - 5000110834×1
- SEAL-THROTTLE SHAFT - 5000110843×1
- SCREW-PHILLIPS - 5000110824×2
- VALVE-CHOKE SHUTTER - 5000110829×1
- SHAFT-CHOKE - 5000110836×1
- BUSHING-CHOKE SHAFT - 5000110840×1
- BUSHING-CHOKE SHAFT (UPPER) - 5000110821×1
- BUSHING-CHOKE SHAFT (LOWER) - 5000110822×1
- FLOAT-CARBURETOR - 5000110835×1
- PIN-FLOAT HINGE - 5000110827×1
- SPACER-BUSHING - 5000110831×1
- GASKET-INTAKE - 5000110820×2
- BOWL-CARBURETOR - 5000110842×1
- PLUG-DRAIN - 5000110839×1
- PLUG - 5000110841×1
- JET-MAIN - 5000114435×1
- CARBURETOR NOZZLE - 5000110837×1
- VALVE-NEEDLE - 5000110828×1
- SCREW-IDLE SPEED - 5000110826×1
- CAP-LIMITER - 5000110844×1
- SCREW-IDLE ADJUSTMENT - 5000110823×1
- JET-PILOT - 5000110838×1
- BRACKET-CONTROL - 5000114439×1
- ROD-GOVERNOR - 5000110845×1
- Spring-governor - 5000160197×1
- SPRING-LINK - 5000110847×1
- PLATE-CONTROL - 5000086883×1
- SCREW-SPEED ADJUSTMENT - 5000086877×1
- SCREW-SELF TAPPING - 5000086885×2
- KNOB-CONTROL - 5000152658×1
