PG2 Dewatering Pump

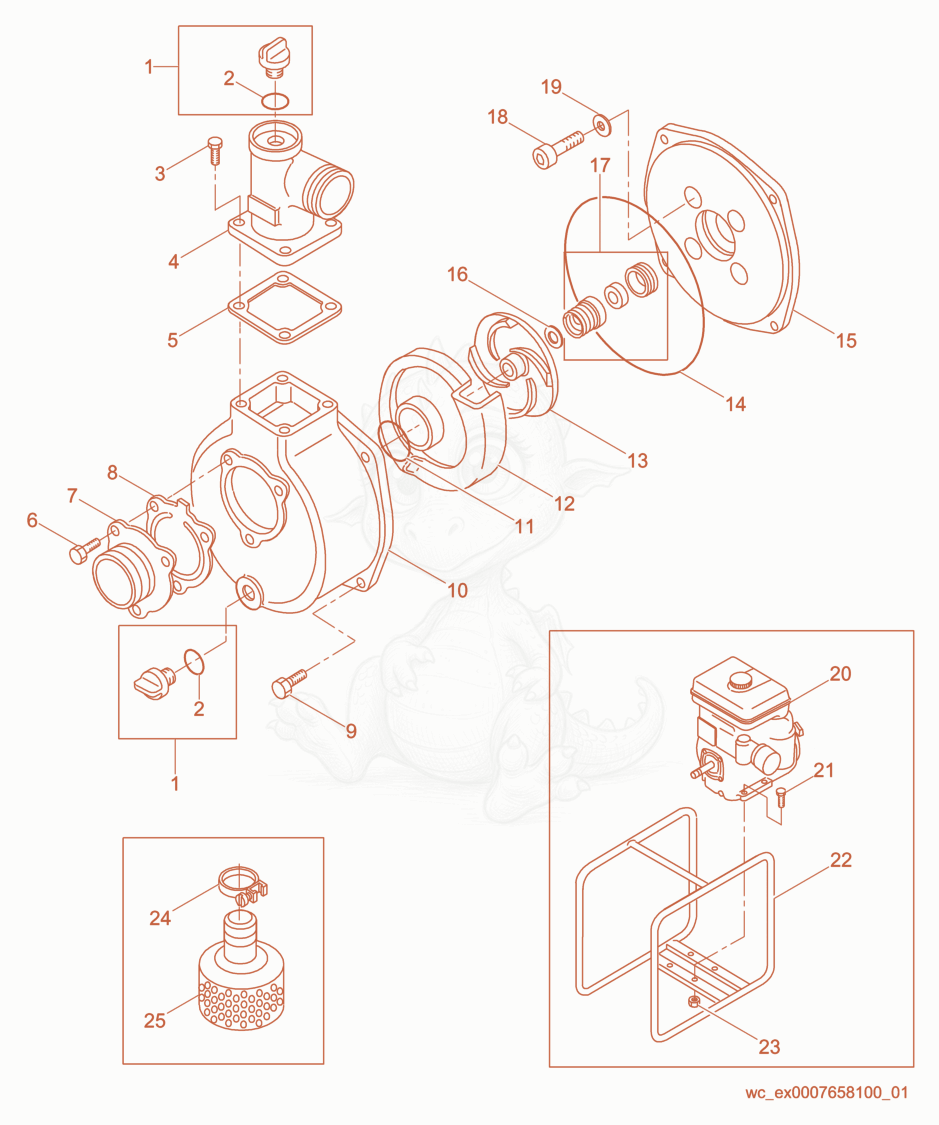

PG2 Pump Components Diagram

Exploded parts diagram of the Pump Components of a Wacker Neuson PG2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000054956Price
    SET-DRAIN PLUG - 5000054956×2
  • 25000054958Price
    O-RING 25 X 2.8 (G-25) - 5000054958×1
  • 35000054967Price
    SCREW M8 X 25 W/LW,HX.HD. - 5000054967×4
  • 45000072997Price
    PORT-DISCHARGE,NPT THREAD - 5000072997×1
  • 55000054947Price
    PACKING-DELIVERY FLANGE - 5000054947×1
  • 65000110732Price
    SCREW M8 X 20 - 5000110732×3
  • 75000110497Price
    PORT-SUCTION - 5000110497×1
  • 85000110498Price
    GASKET-FLAPPER VALVE - 5000110498×1
  • 95000110505Price
    SCREW M8 X 22 - 5000110505×4
  • 105000110496Price
    HOUSING-PUMP CASING - 5000110496×1
  • 115000110504Price
    O-ring - 5000110504×1
  • 125000110500Price
    VOLUTE - 5000110500×1
  • 135000110501Price
    IMPELLER - 5000110501×1
  • 145000113800Price
    O-RING 1517-42.5 - 5000113800×1
  • 155000110499Price
    FLANGE-MOUNTING - 5000110499×1
  • 165000054955Price
    WASHER 0.3MM THICK,SHIM - 5000054955×3
  • 175000054960Price
    SEAL-MECHANICAL,CARBON/CERAMIC - 5000054960×1
  • 185000054969Price
    SCREW M8 X 60 SOC.HD. - 5000054969×4
  • 195000072996Price
    WASHER-PLASTIC - 5000072996×4
  • 205000161320Not stocked
    Engine w/threaded shaft×1
  • 215000054968Price
    SCREW M8 X 40 W/LW,HX.HD. - 5000054968×4
  • 225000154383Price
    FRAME-PG2 - 5000154383×1
  • 235000070014Price
    NUT M8,HEX - 5000070014×4
  • 245000077657Price
    CLAMP-STRAINER SECURING - 5000077657×3
  • 255000117979Not stocked
    Suction strainer×1
