PAR10/2 EXTERNAL VIBRATOR

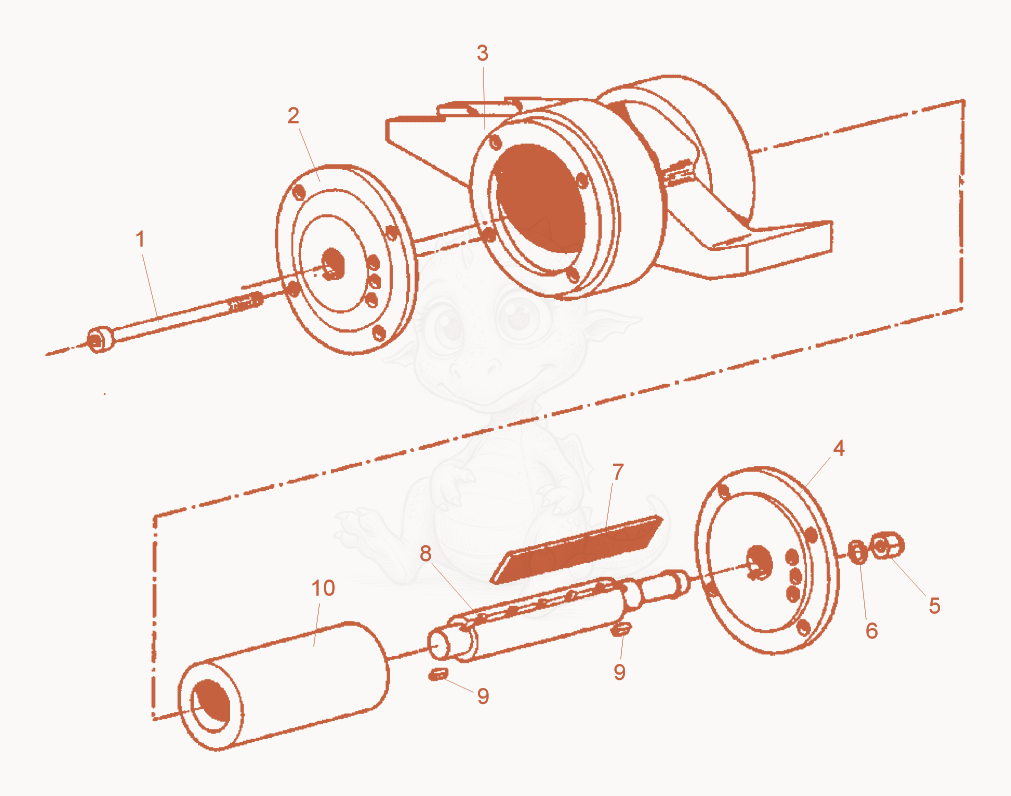

PAR10/2 External Vibrator cpl. Diagram
- SCREW-HEX HD,M10 X 45 - 5000109141×4
- COVER-BEARING - 5000109142×1
- HOUSING-EXT VIB. - 5000109143×1
- COVER-BEARING - 5000109146×1
- 55000109144Not stockedNut×4
- Washer - 5000109145×4
- PLATE - 5000109147×1
- shaft - 5000109148×1
- KEY-FITTING - 5000109149×2
- Rotor - 5000109151×1
