P35-POWER UNIT

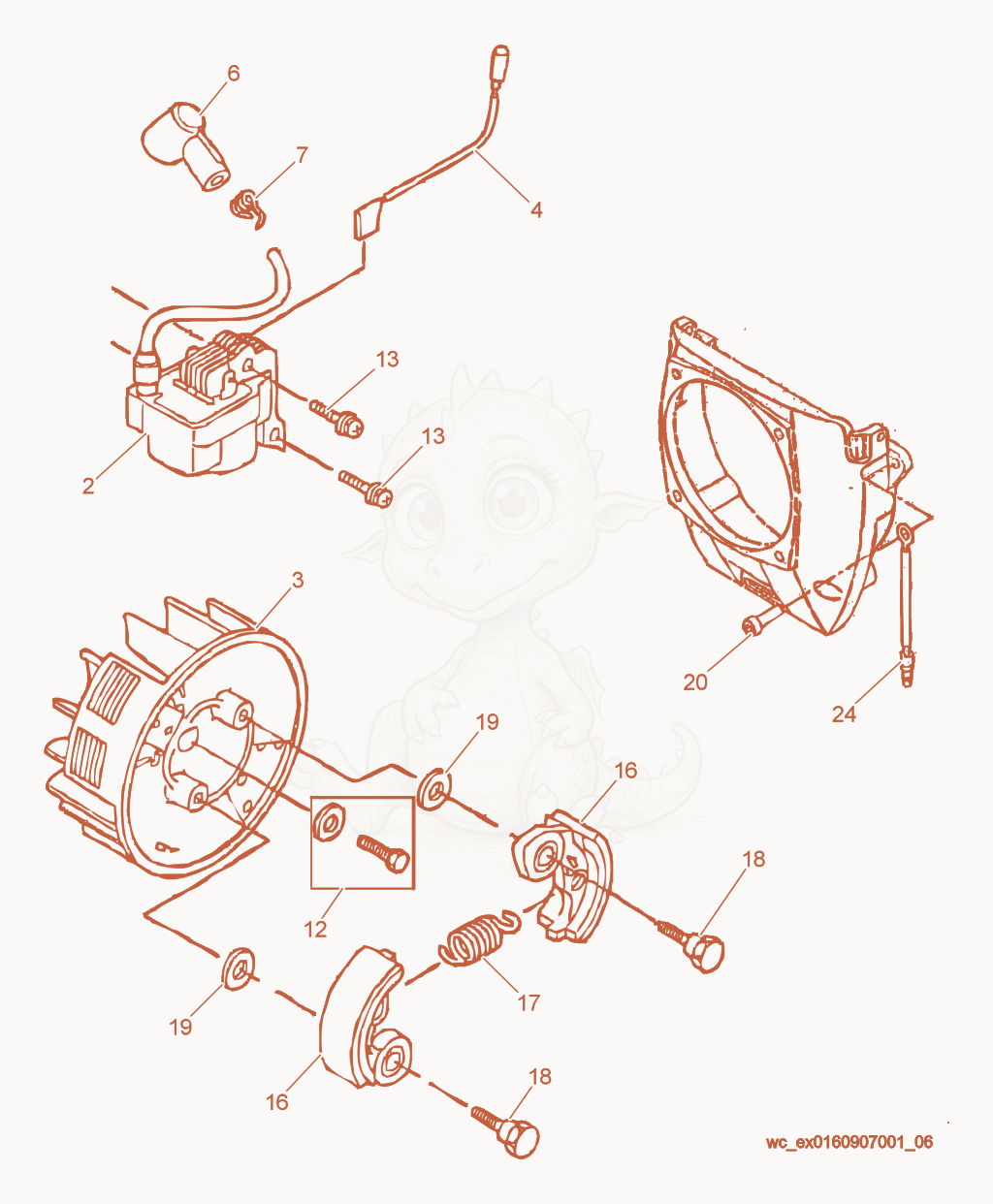

P35 Flywheel/Clutch Diagram

Exploded parts diagram of the Flywheel/Clutch of a Wacker Neuson P35, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000207484Not stocked
    Ignition coil×1
  • 35000207483Not stocked
    Flywheel×1
  • 45000207411Not stocked
    Wire×1
  • 65000207443Not stocked
    Plug cap×1
  • 75000207390Not stocked
    Spring×1
  • 125000207371Not stocked
    Bolt w/washer×1
  • 135000207372Not stocked
    Screw×2
  • 165000207415Price
    SHOE-CLUTCH - 5000207415×2
  • 175000207416Not stocked
    Spring×1
  • 185000207486Not stocked
    Bolt×2
  • 195000207378Not stocked
    Washer×2
  • 205000207318Not stocked
    Socket head screw×1
  • 245000207489Not stocked
    Wire×1
