MS62-RAMMER,11 PL SHOE,(24MM),NR

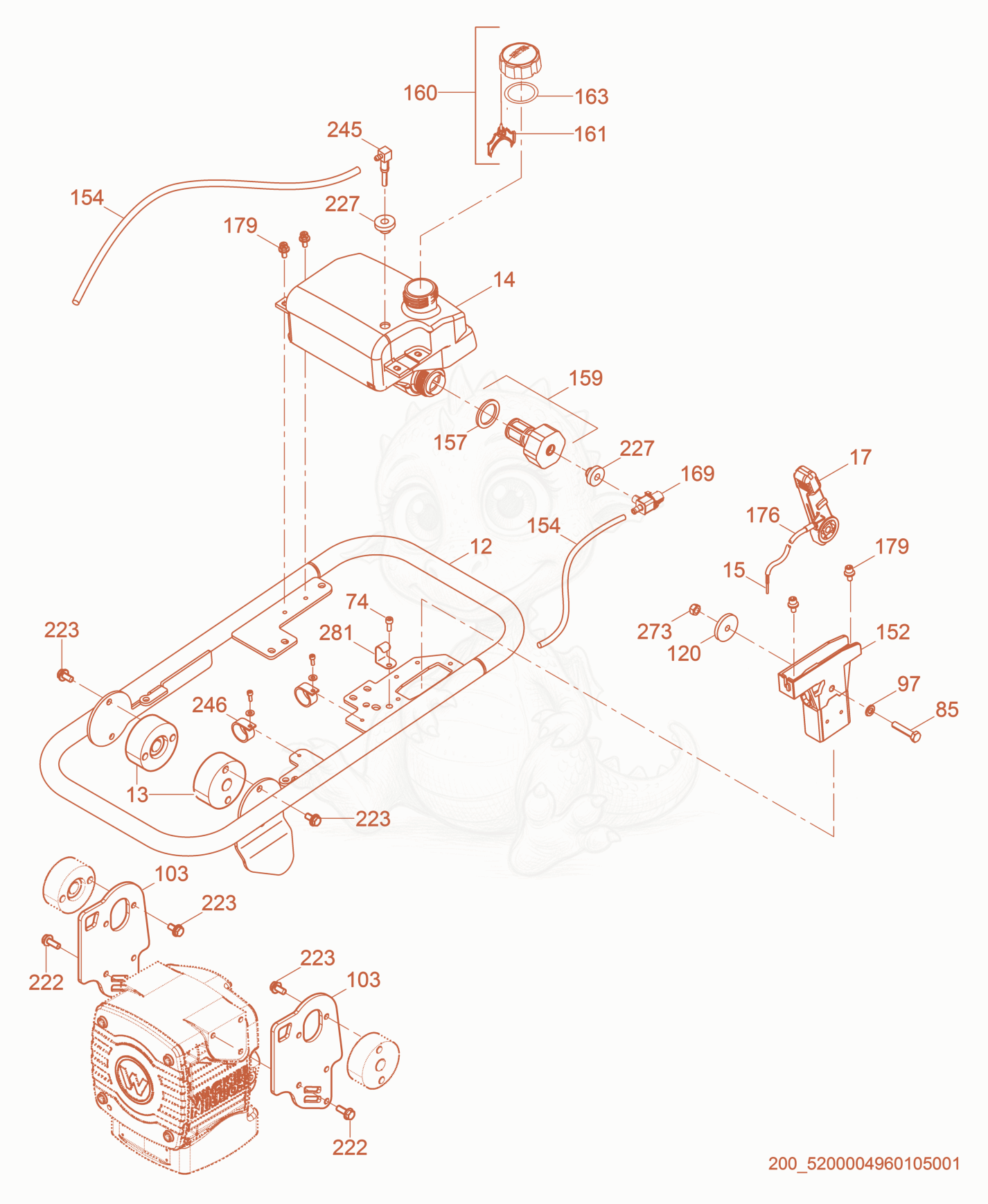

MS62 Guide Handle cpl. Diagram

Exploded parts diagram of the Guide Handle cpl. of a Wacker Neuson MS62, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

125200004832Not stocked
Guide handle×1
135000015573Price
Shockmount-103 x 40-45SH,FRM C - 5000015573×2
145000179162Price
TANK-FUEL,W/VENT HOLE - 5000179162×1
155000165628Price
CABLE-WIRE,INNER - 5000165628×1
175000118148Price
CONTROL-THROTTLE - 5000118148×1
745000011572Price
SCREW M4 X 10 SHCS 8.8,ZINC - 5000011572×1
855000011341Price
SCREW M8 X 40 HX.HD. - 5000011341×1
975000010622Price
WASHER-FLAT,M8,ZINC - 5000010622×1
1035200004831Not stocked
Shockmount bracket×2
1205000105194Price
WASHER M8 X 1.5 - 5000105194×1
1525000118149Price
BRACKET-THROTTLE CONTROL - 5000118149×1
1545200023643Price
Hose-Fuel,LP1300,520.7mm - 5200023643×2
1575000086312Price
SEAL-RING - 5000086312×1
1595000112179Price
KIT-FUEL FILTER W/BUSHING - 5000112179×1
1605000163682Not stocked
Fuel tank cap×1
1615000173019Price
CAP-LANYARD - 5000173019×1
1635000173020Price
Gasket - 5000173020×1
1695000114066Price
KIT-FUEL VALVE W/BUSHING - 5000114066×1
1765000165627Price
CABLE-CASING,OUTER - 5000165627×1
1795000160861Price
SCREW M6X16 SC HD,W/WASHER,SEM - 5000160861×6
2225000011457Price
SCREW M8 X 25 HX.HD. - 5000011457×4
2225000033198Price
WASHER-LOCK B8 - 5000033198×4
2235000012361Price
SCREW M8 X 16 HX.HD. - 5000012361×8
2235000033198Price
WASHER-LOCK B8 - 5000033198×8
2275000053577Not stocked
Tank valve bushing×2
2455000162852Price
FITTING-FILTER FUEL - 5000162852×1
2465000155562Price
CLIP-WIRE HARNESS,BLACK - 5000155562×2
2735000172305Price
NUT-LOCK M8 HEX,AUTO,CLASS 9 - 5000172305×1
2815200008920Not stocked
Clamp×1
3065200009582Price
PLATE-TANK MOUNTING - 5200009582×2
