MP15A (WITH GX160)

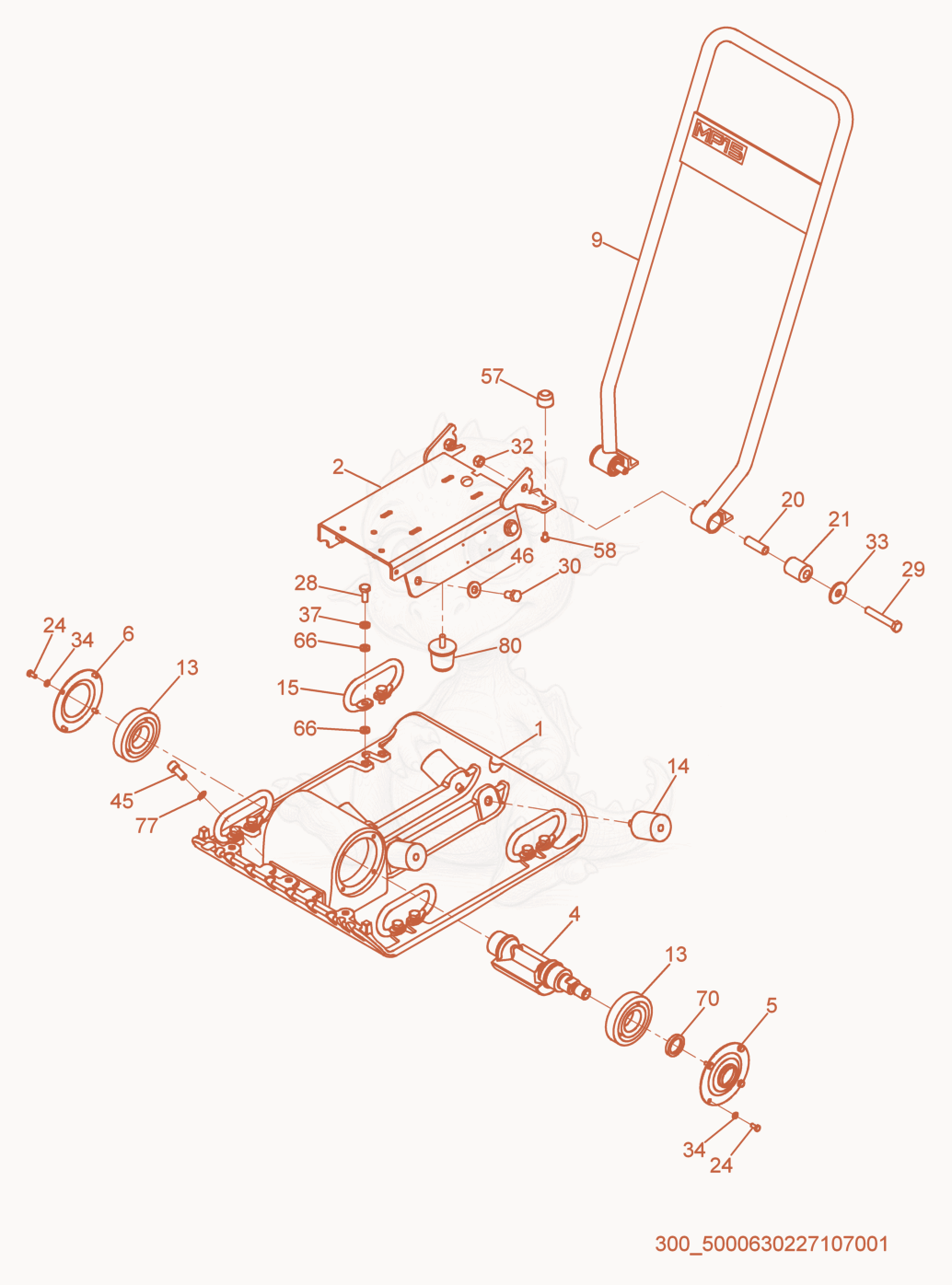

MP15A Baseplate/Console cpl. Diagram
- 15000408283Not stockedBaseplate×1
- 25000408267Not stockedConsole×1
- Shaft Exciter-machined - 5000403566×1
- Cap end w/ hole - 5000408262×1
- Cap end w/out hole - 5000408263×1
- Handle Weldment - 5000403821×1
- Bearing-Radial Ball - 5000403573×2
- 145000400506Not stockedShockmount×4
- Handle Lifting - 5000404600×4
- BUSHING-HANDLE - 5000114254×2
- BUSHING-RUBBER - 5000117862×2
- SCREW M6 X 12 HX.HD. - 5000012357×8
- SCREW M10 X 25 HX.HD. - 5000011440×8
- SCREW M12 X 75 HX.HD - 5000011306×2
- SCREW M12 X 20 HX.HD. - 5000012368×4
- NUT-LOCK M12X1.75 HEX - 5000010366×2
- WASHER .531X 1.625X.120,FLAT - 5000114766×2
- WASHER-LOCK B6 - 5000010649×8
- Washer Lock DIN6796,Zinc Mechanical - 5000407043×8
- 455000011530Not stockedCheese head screw×1
- WASHER-LOCK A12 - 5000031565×4
- Shockmount - 5000401835×2
- SCREW M8 X 12 HX.HD. - 5000012360×2
- SPACER-RUBBER - 5000130787×16
- Seal Shaft - 5000406265×1
- SEAL-RING 12 X 18 - 5000013444×1
- 805000130961Not stockedShockmount×1
