Electrical Power Unit

M2000/120 Housing cpl. Diagram

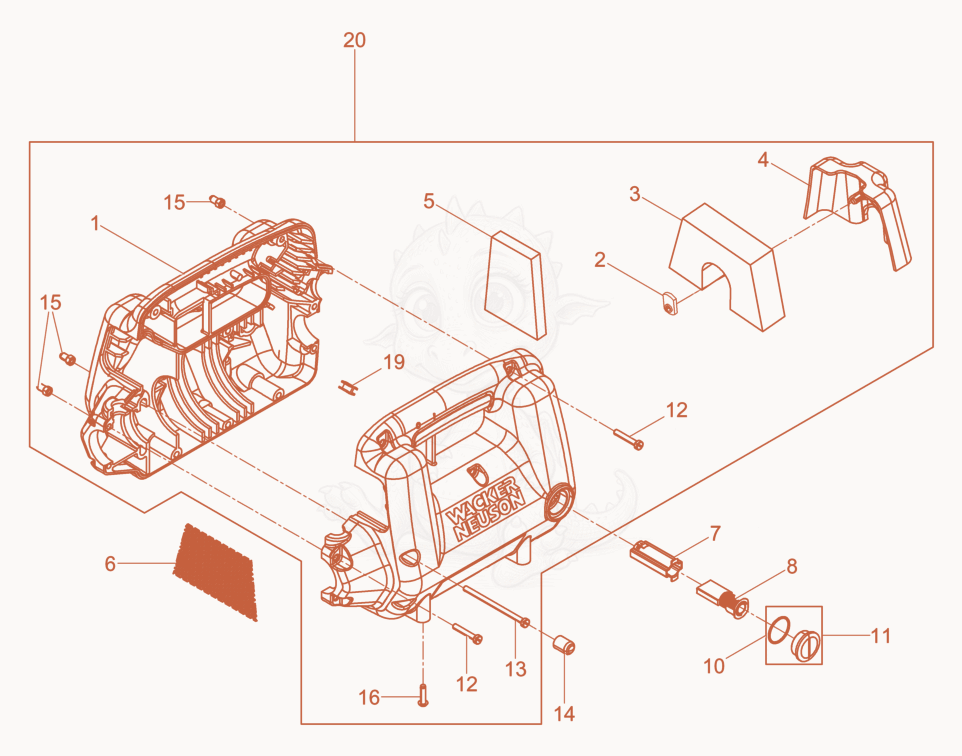

Exploded parts diagram of the Housing cpl. of a Wacker Neuson M2000/120, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000219146Price
    Housing-M1000-2000 Int. Vibrator - 5000219146×1
  • 25000083048Price
    NUT-WELD - 5000083048×1
  • 35000074527Price
    ELEMENT-FOAM,MOTOR AIR FILTER - 5000074527×1
  • 45000083049Price
    COVER-ASSEMBLY - 5000083049×1
  • 55000053950Price
    ELEMENT-AIR FILTER - 5000053950×2
  • 65000053949Price
    GUARD-GRILLE - 5000053949×1
  • 75000053954Price
    INSERT-BRUSH HOLDER,BRASS - 5000053954×2
  • 85000078484Price
    BRUSH-CARBON 115V - 5000078484×2
  • 105000038765Price
    O-RING 25 X 1.5-70 Sh - 5000038765×2
  • 115000078697Price
    KIT-BRUSH COVER REPLACEMENT - 5000078697×2
  • 125000202539Price
    SCREW M5 X 30 - 5000202539×6
  • 135000202540Price
    SCREW M5 X 80 - 5000202540×6
  • 145000202124Price
    CAP-SCREW HEAD - 5000202124×2
  • 155000081277Price
    NUT M5,ACORN CAP - 5000081277×12
  • 165000202123Price
    STUD-BARBED 5 X 20 - 5000202123×4
