M1500/230

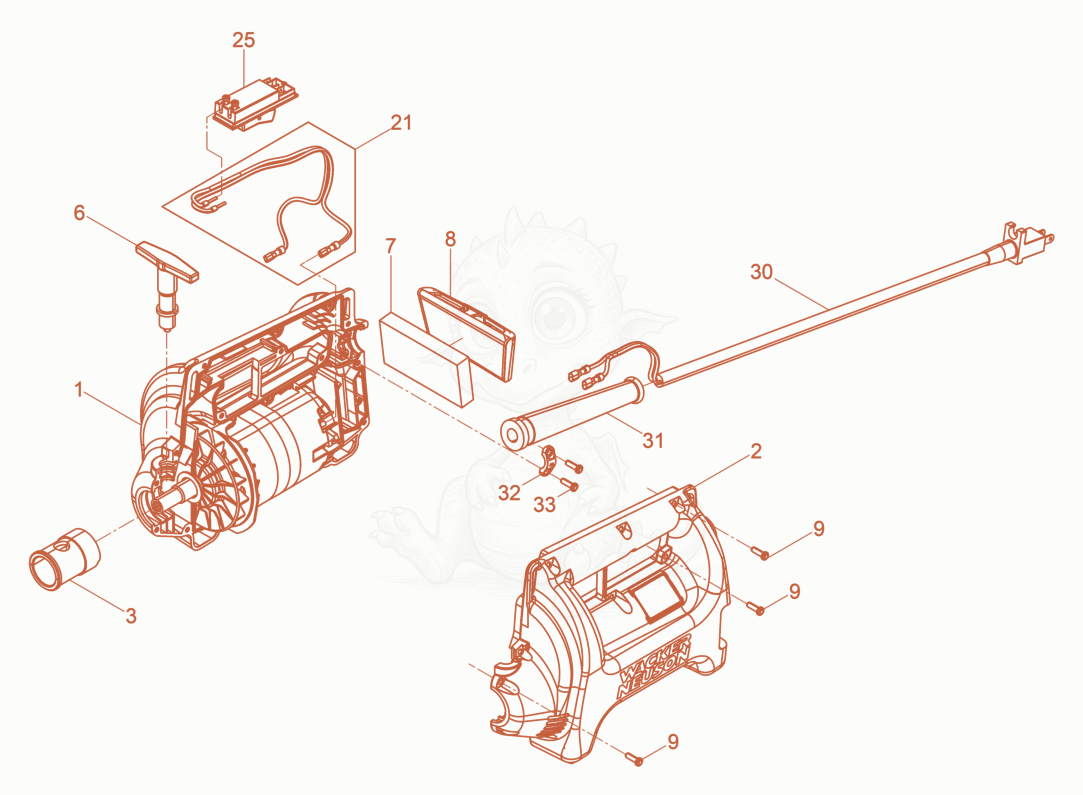

M1500/230EU Drive Engine Diagram
- Housing Right - 5100010489×1
- Housing left - 5100010488×1
- 35100068041Not stockedBush×1
- Detent Pin - 5100009577×1
- Filter Element - 5100010864×1
- Filter housing - 5100010490×1
- Head Screw 5x16 - 5100010127×19
- Supply line cpl. - 5100015414×1
- Switch - 5100010900×1
- Power supply cable with plug - 5100010646×1
- SLEEVE-CABLE REINFORCEMENT - 5000064242×1
- Clamp - 5000106220×1
- Head Screw 5x16 - 5100010127×2
