LTW6K Light Tower, Standard T4

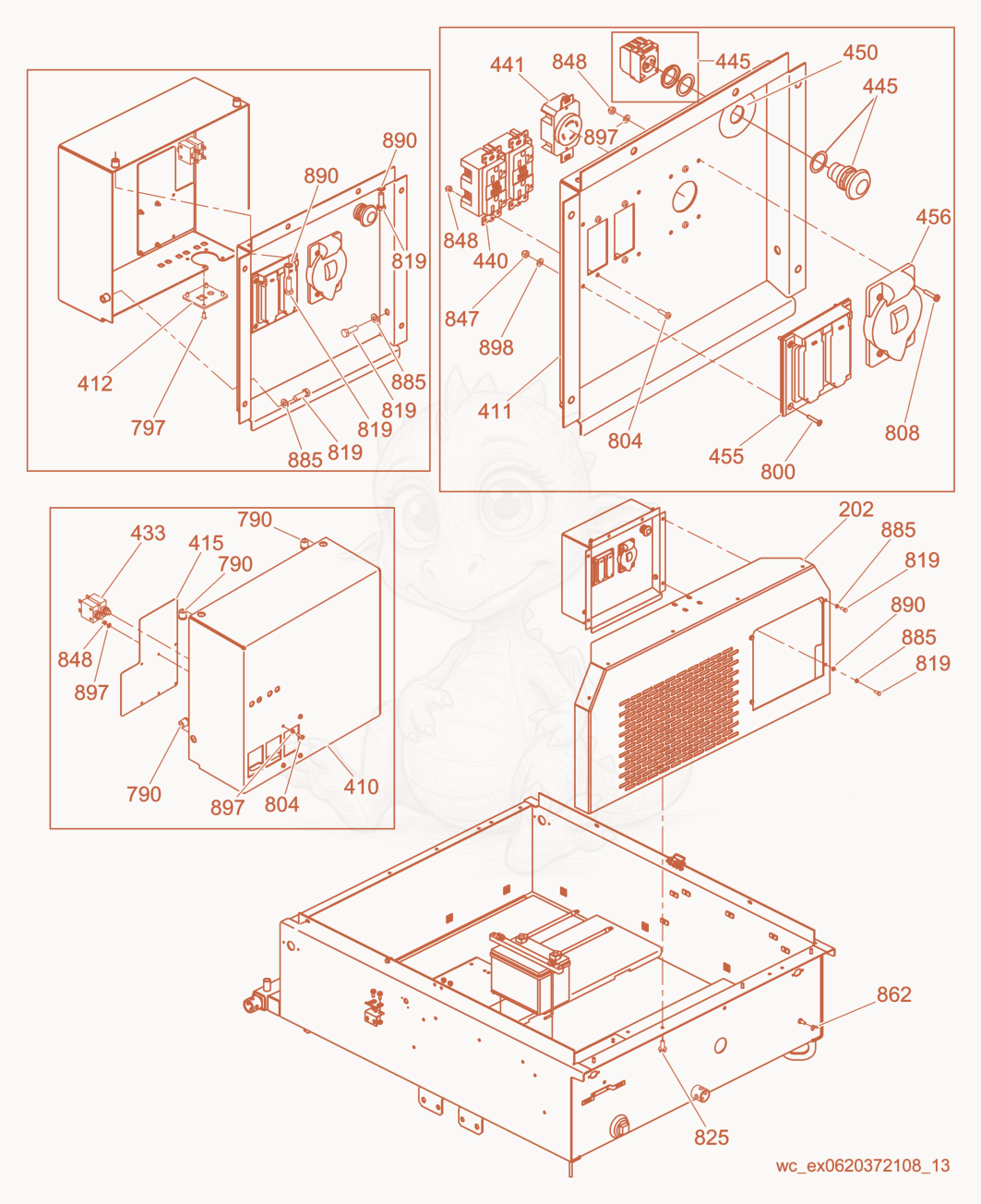

LTW6K Receptacle Panel cpl. Diagram
- PANEL-ENCL,REAR,LTW P-5000177670 - 5000172884×1
- BOX-RECEPTACLE,LTW P- 5000176420 - 5000173422×1
- 4115000174990Not stockedReceptacle panel×1
- GROMMET-RECEPT BOX,LTW - 5000179925×1
- 4155000174992Not stockedCover panel×1
- BREAKER-CIRCUIT 20A, 1 POLE - 5000082946×2
- 4405000089849Not stockedGFI Receptacle Kit×2
- RECEPTACLE-L14-30, 30 AMP - 5000088827×1
- SWITCH-E STOP ASSM,2P-NC,1P-NO - 5000165439×1
- LABEL-EMERGENCY STOP - 5000155460×1
- COVER-RECEPTACLE,DPLX 2-GANG - 5000174966×1
- COVER-RECEPTACLE,30A - 5000174967×1
- INSERT M8,THREADED - 5000085454×4
- 7975000167908Not stockedRivet×4
- SCREW M3X20,FLAT HD PHIL ZP - 5100019401×4
- SCREW M4 X 14 PHIL HD - 5000110405×10
- SCREW M4 X 20 PHIL HD - 5000110951×4
- SCREW M8X25 HX.HD.,A2 304,SST - 5000161194×4
- SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×8
- NUT-LOCK M3 HX,ZINC SP=0086710 - 5000180533×4
- NUT-LOCK M4 HEX. - 5000010370×14
- NUT-WING,M10 - 5000010897×1
- WASHER M8 FLAT,SST - 5000158899×8
- WASHER-LOCK M8 INT.STAR SST - 5000160626×2
- 8975000167809Not stockedWasher×9
- WASHER-M3 INTERNAL L/W - 5100019402×1
