LTV4K Light Tower, LED

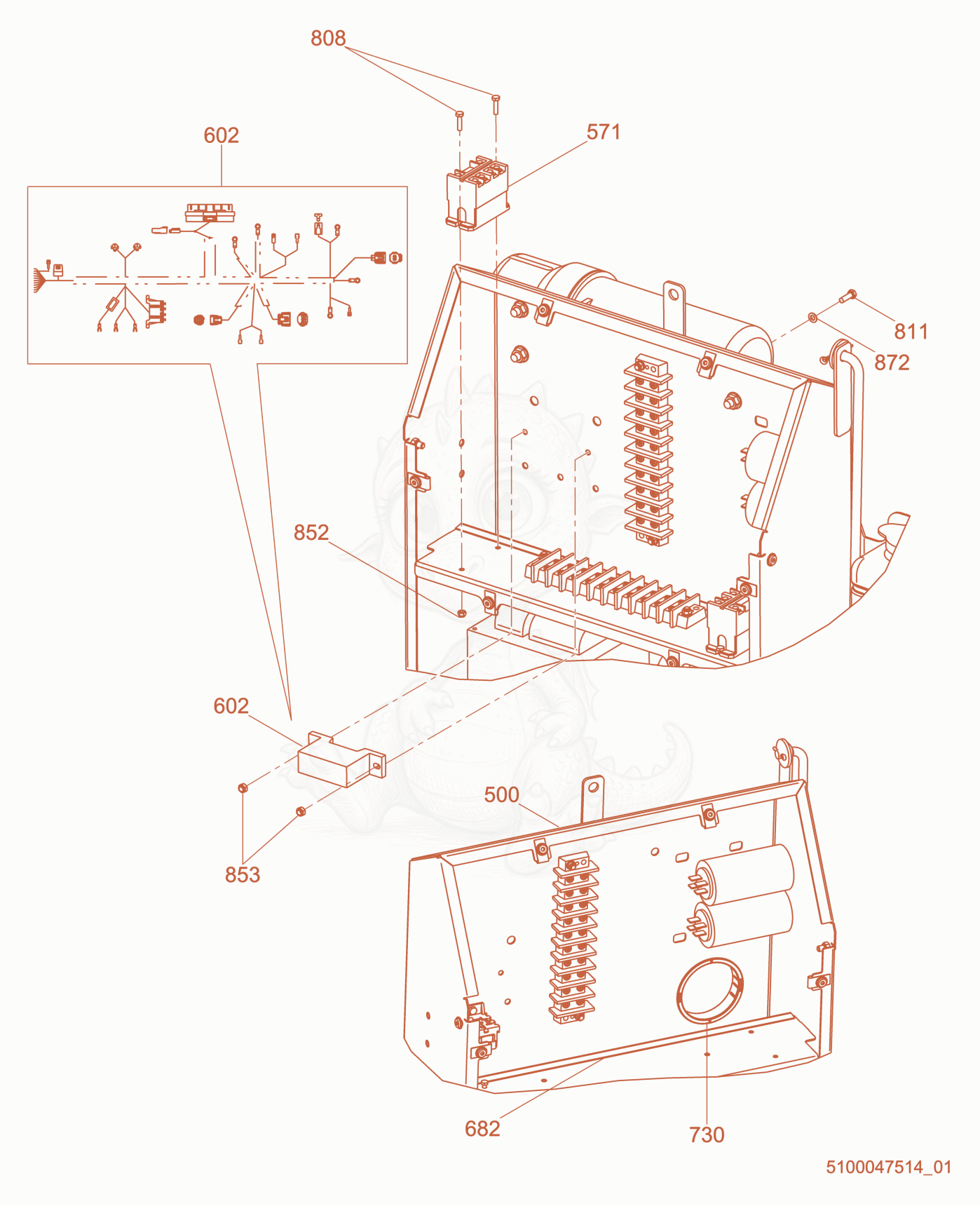

LTV4K Option-Control Box, Auto start (LED) Diagram

Exploded parts diagram of the Option-Control Box, Auto start (LED) of a Wacker Neuson LTV4K, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 5005100026689Price
    BOX CONTROL WELDMENT LTV - 5100026689×1
  • 5715200018343Price
    Relay-DPST,12VDC,277VAC,30A - 5200018343×2
  • 6025100047481Price
    WIRE HARNESS-CONTROLLER/ECU,LTV4K - 5100047481×1
  • 6225100029257Price
    WIRE HARNESS- LTV AUTO START MODULE - 5100029257×1
  • 6825200022095Price
    Seal-Trim,G180 600V,450mm - 5200022095×1
  • 7305100027629Price
    BUSHING 3.16 OD X 2.75 ID - 5100027629×1
  • 8085000110951Price
    SCREW M4 X 20 PHIL HD - 5000110951×4
  • 8115000011476Price
    SCREW M5 X 16 HX.HD. - 5000011476×2
  • 8525000010370Price
    NUT-LOCK M4 HEX. - 5000010370×4
  • 8535000010369Price
    NUT-LOCK M5 HEX. - 5000010369×2
  • 8725000010625Price
    WASHER B5.3 FLAT - 5000010625×2
