LTN6L 50 Hz CE

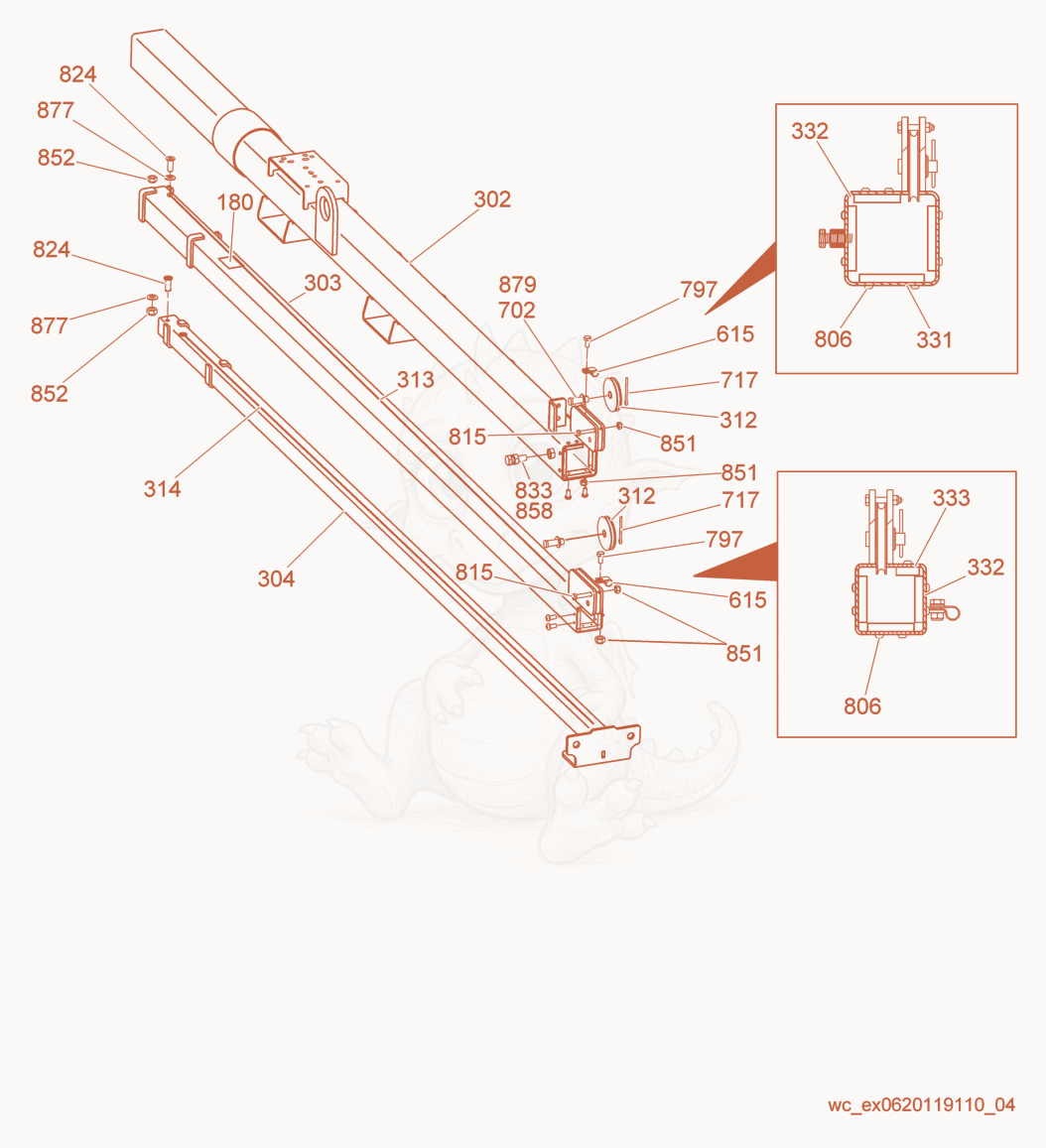

LTN6LE Tower Tubes Diagram

Exploded parts diagram of the Tower Tubes of a Wacker Neuson LTN6LE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1805000177126Price
    REFLECTOR-RED TAPE 2.75 X 1.75 - 5000177126×1
  • 3025200008710Price
    Tube-Tower Outer,LTN P-5000176420 - 5200008710×1
  • 3035200008712Price
    Tube-Tower Cntr,LTN/LTW P-5000176420 - 5200008712×1
  • 3045000165153Price
    TUBE-TOWER INNER - 5000165153×1
  • 3125000165156Price
    PULLEY-3 IN. DIA. - 5000165156×2
  • 3135000165157Price
    CABLE-OUTER TOWER - 5000165157×1
  • 3145000165158Price
    CABLE-INNER TOWER - 5000165158×1
  • 3315000165160Price
    GUIDE-TOWER,OUTER - 5000165160×3
  • 3325000165161Not stocked
    Guide×4
  • 3335000165162Not stocked
    Guide×1
  • 6155000177082Price
    CLAMP-TUBE .50 - 5000177082×2
  • 7025000153123Price
    PIN-CLEVIS 1/2 X 1-1/2 - 5000153123×2
  • 7175000116751Price
    PIN-COTTER 1/8 X 1-1/2 - 5000116751×2
  • 7975000028949Price
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×2
  • 8065000165226Not stocked
    Screw×15
  • 8155000011368Price
    SCREW M6 X 35 HX.HD. - 5000011368×2
  • 8245000172925Not stocked
    Socket head screw×2
  • 8335000011439Price
    SCREW M10 X 30 HX.HD - 5000011439×1
  • 8515000010368Price
    NUT-LOCK M6 HEX. - 5000010368×3
  • 8525000010367Price
    NUT-LOCK M8 HEX - 5000010367×2
  • 8585000010883Price
    NUT M10 8,HEX - 5000010883×1
  • 8775000010622Price
    WASHER-FLAT,M8,ZINC - 5000010622×2
  • 8795000010620Price
    WASHER B13 FLAT - 5000010620×2
