LTN6L-P LIGHT TOWER,60 HZ

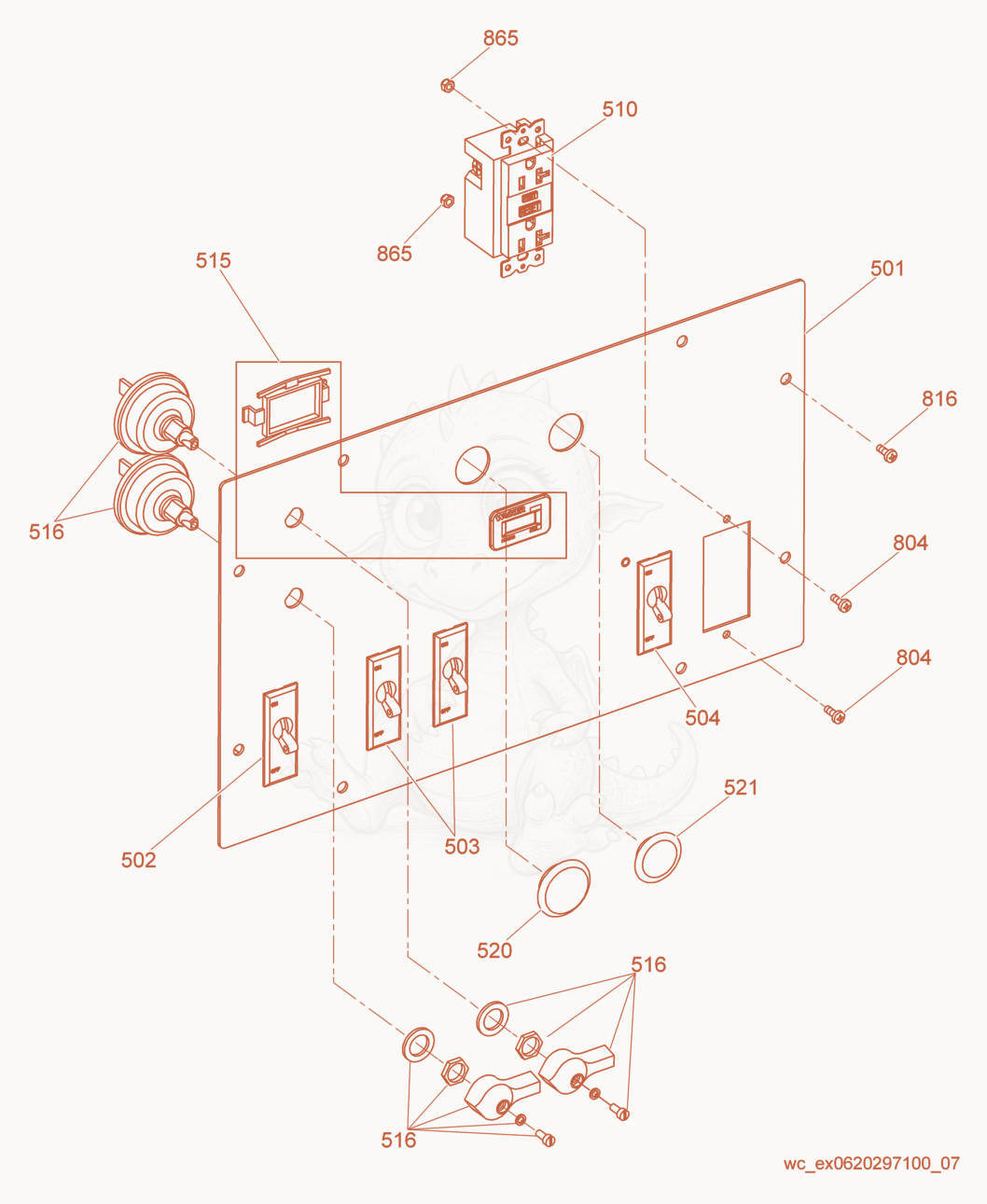

LTN6L-P Control Panel Diagram

Exploded parts diagram of the Control Panel of a Wacker Neuson LTN6L-P, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 5015000171200Price
    PANEL-CONTROL,60HZ,POWER - 5000171200×1
  • 5025000172334Price
    BREAKER-MAIN 50 AMP - 5000172334×1
  • 5035000172337Price
    BREAKER-LIGHT,30 AMP - 5000172337×2
  • 5045000172338Price
    BREAKER-OUTLET,20 AMP - 5000172338×1
  • 5105000089849Not stocked
    GFI Receptacle Kit×1
  • 5155000117280Price
    hour meter - 5000117280×1
  • 5165000162452Price
    SWITCH-ROTARY - 5000162452×2
  • 5205000159630Price
    Plug-Cap, 105, BPF Series - 5000159630×1
  • 5215000159631Price
    Plug-Cap, 1-1/8-6, BPF Series - 5000159631×1
  • 8045000088174Price
    SCREW M4 X 12 - 5000088174×2
  • 8165000177093Price
    SCREW M6X16,SBHD,FLGE 10.9,BC - 5000177093×8
  • 8655000010370Price
    NUT-LOCK M4 HEX. - 5000010370×2
