LTN6C, CATERPILLAR

LTN6C Wiring Harness/Control Panel Diagram

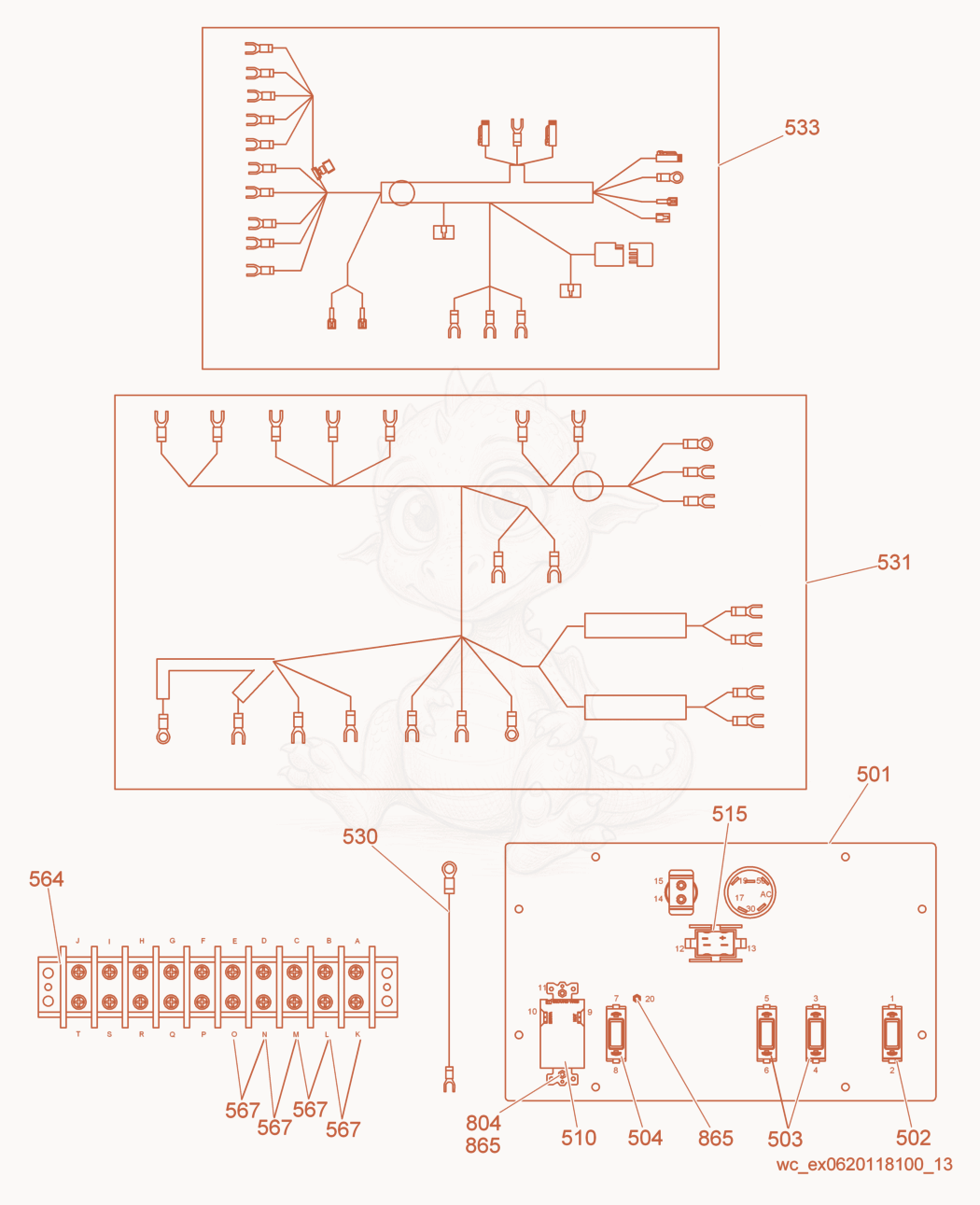

Exploded parts diagram of the Wiring Harness/Control Panel of a Wacker Neuson LTN6C, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 5015000165202Price
    PANEL-CONTROL,60HZ - 5000165202×1
  • 5025000172334Price
    BREAKER-MAIN 50 AMP - 5000172334×1
  • 5035000172337Price
    BREAKER-LIGHT,30 AMP - 5000172337×2
  • 5045000172338Price
    BREAKER-OUTLET,20 AMP - 5000172338×1
  • 5105000089849Not stocked
    GFI Receptacle Kit×1
  • 5155000117280Price
    hour meter - 5000117280×1
  • 5305000177337Not stocked
    Wiring harness×1
  • 5315000165219Price
    WIRING HARNESS-CNTRL PANEL,CAT - 5000165219×1
  • 5335000165309Not stocked
    Engine wiring harness×1
  • 5645000176461Price
    TERMINAL-BLOCK,10 POLE - 5000176461×1
  • 5675000176464Price
    STRAP-JUMPER,CLOSED - 5000176464×4
  • 8045000088174Price
    SCREW M4 X 12 - 5000088174×2
  • 8655000010370Price
    NUT-LOCK M4 HEX. - 5000010370×3
