LTG14

LTG14 Enclosure Panels Diagram

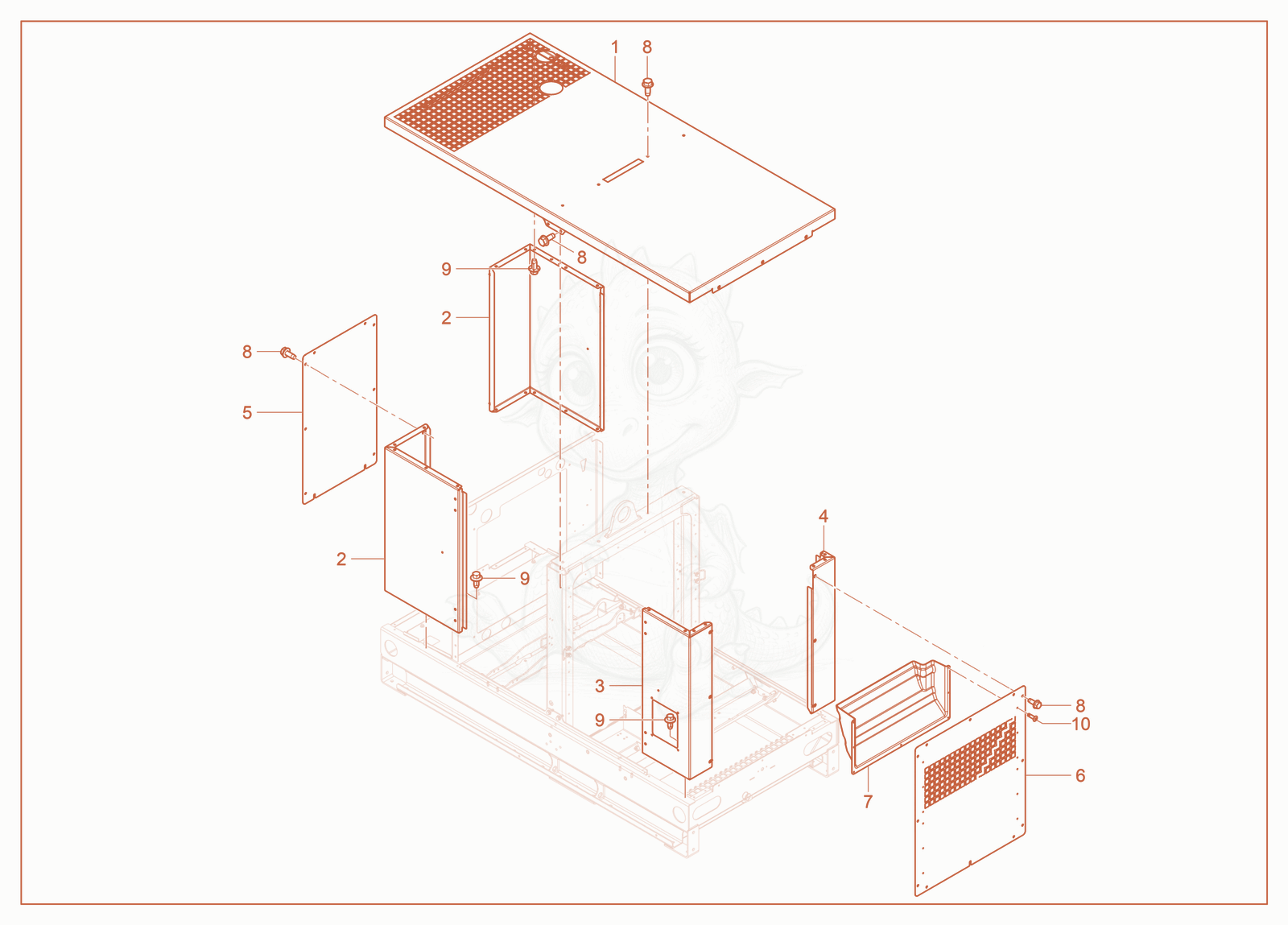

Exploded parts diagram of the Enclosure Panels of a Wacker Neuson LTG14, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100070224Price
    PANEL ROOF XS - 5100070224×1
  • 25100061377Price
    PANEL-FRONT ENCLOSURE,G25-50 - 5100061377×2
  • 35100061380Price
    PANEL-REAR ENCLOSURE,LEFT,G25-50 - 5100061380×1
  • 45100070188Price
    PANEL REAR ENCLOSURE RIGHT - 5100070188×1
  • 55100056771Price
    PANEL-FRONT ACCESS - 5100056771×1
  • 65100060993Price
    PANEL-REAR ACCESS, G25 - 5100060993×1
  • 75100056863Price
    VENT-INTAKE - 5100056863×1
  • 85100060862Price
    WASHER 5/16,SEALING - 5100060862×26
  • 85100061318Price
    SCREW-M8x20,THD.FRM,HEX.FLG-MAG565 - 5100061318×26
  • 95100061318Price
    SCREW-M8x20,THD.FRM,HEX.FLG-MAG565 - 5100061318×32
  • 105100060845Price
    RIVET .156 X .04-.335,AL,SOFT MATERIAL - 5100060845×7
