LTC4LP-LIGHT TOWER 60HZ

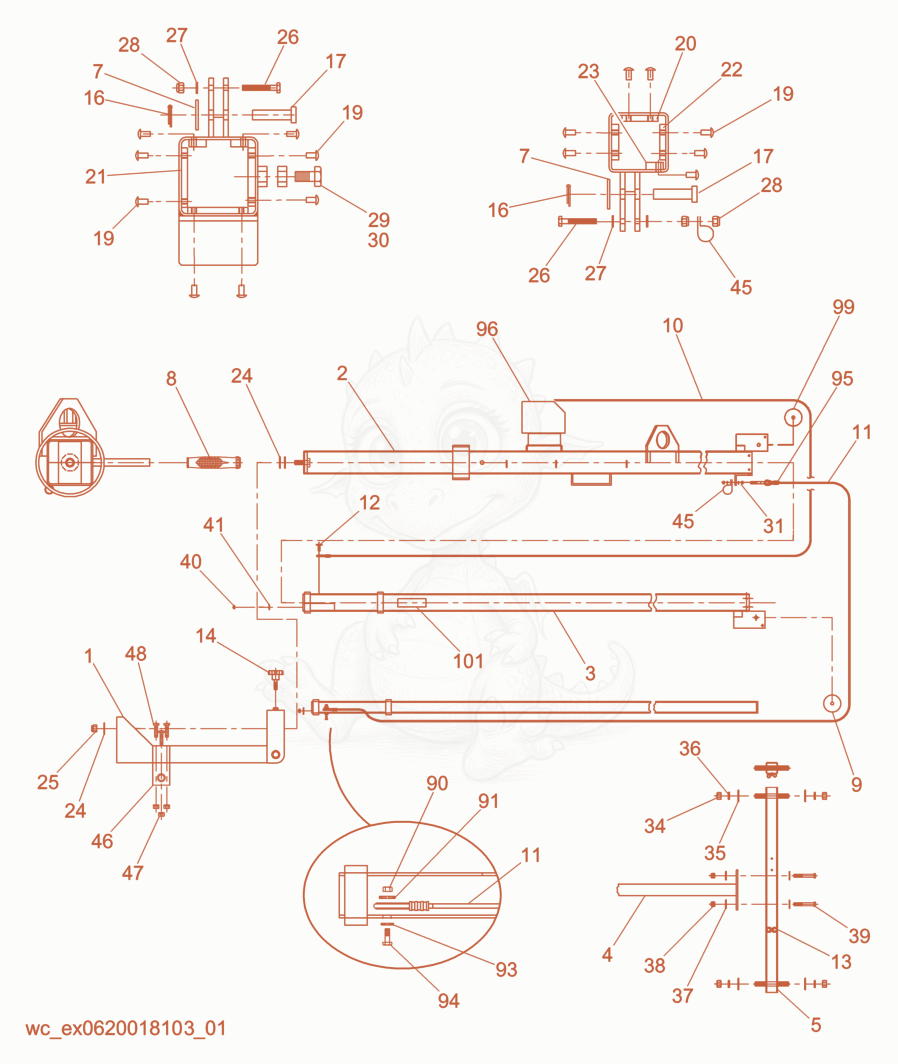

LTC4L-P Mast cpl./Power Winch System Diagram
- 15000159596Not stockedBase×1
- 25000162313Not stockedTube×1
- 35000159603Not stockedTube×1
- TUBE - 5000159604×1
- Tube - 5000159612×1
- WASHER 1/2 ,FLAT,SS - 5000155848×1
- HANDLE-GRIP,TOWER ROTATION - 5000155531×1
- PULLEY-SINGLE GROOVE - 5000155532×1
- CABLE ASSEMBLY - 5000162317×1
- CABLE ASSEMBLY - 5000162316×1
- 125000155535Not stockedBolt×2
- CLAMP-LOOM 3/8 - 5000155536×2
- KNOB - 5000159634×1
- PIN-COTTER - 5000159601×2
- PIN-CLEVIS - 5000159632×1
- screw - 5000160508×15
- 205000159628Not stockedGuide×1
- guide - 5000159626×3
- guide - 5000159627×1
- guide - 5000159640×3
- washer - 5000159639×3
- 255000159641Not stockedLock nut×1
- 265000159617Not stockedScrew×2
- WASHER-FLAT - 5000159635×6
- 285000159621Not stockedLock nut×2
- nut - 5000159624×1
- 305000160432Not stockedScrew×1
- SCREW 1/4-20 X 1-3/4 GR5,HX.HD - 5000026670×2
- 345000160433Not stockedNut×4
- 355000159642Not stockedFlat washer×4
- 365000159643Not stockedLock washer×4
- 375000159638Not stockedFlat washer×4
- 385000159625Not stockedLock nut×2
- 395000159620Not stockedScrew×2
- 405000159573Not stockedLock nut×2
- 415000155558Not stockedWasher×2
- CLAMP-P - 5000160434×2
- LATCH-BOLT - 5000160449×1
- 475000160467Not stockedNut×3
- SCREW - 5000160466×3
- 905000161670Not stockedLock nut×1
- WASHER-FENDER 3/8 - 5000155587×1
- WASHER-FLAT,M8 - 5000161648×1
- SCREW-HEX HD,M8 - 5000161540×1
- BOLT-U - 5000162177×1
- WINCH - 5000162318×1
- 975000162319Not stockedClevis pin×1
- 995000162469Not stockedPulley×1
- REFLECTOR,RED - 5000155652×1
