LTC4 LIGHT TOWER

LTC4 Control Panel/Receptacle Panel Diagram

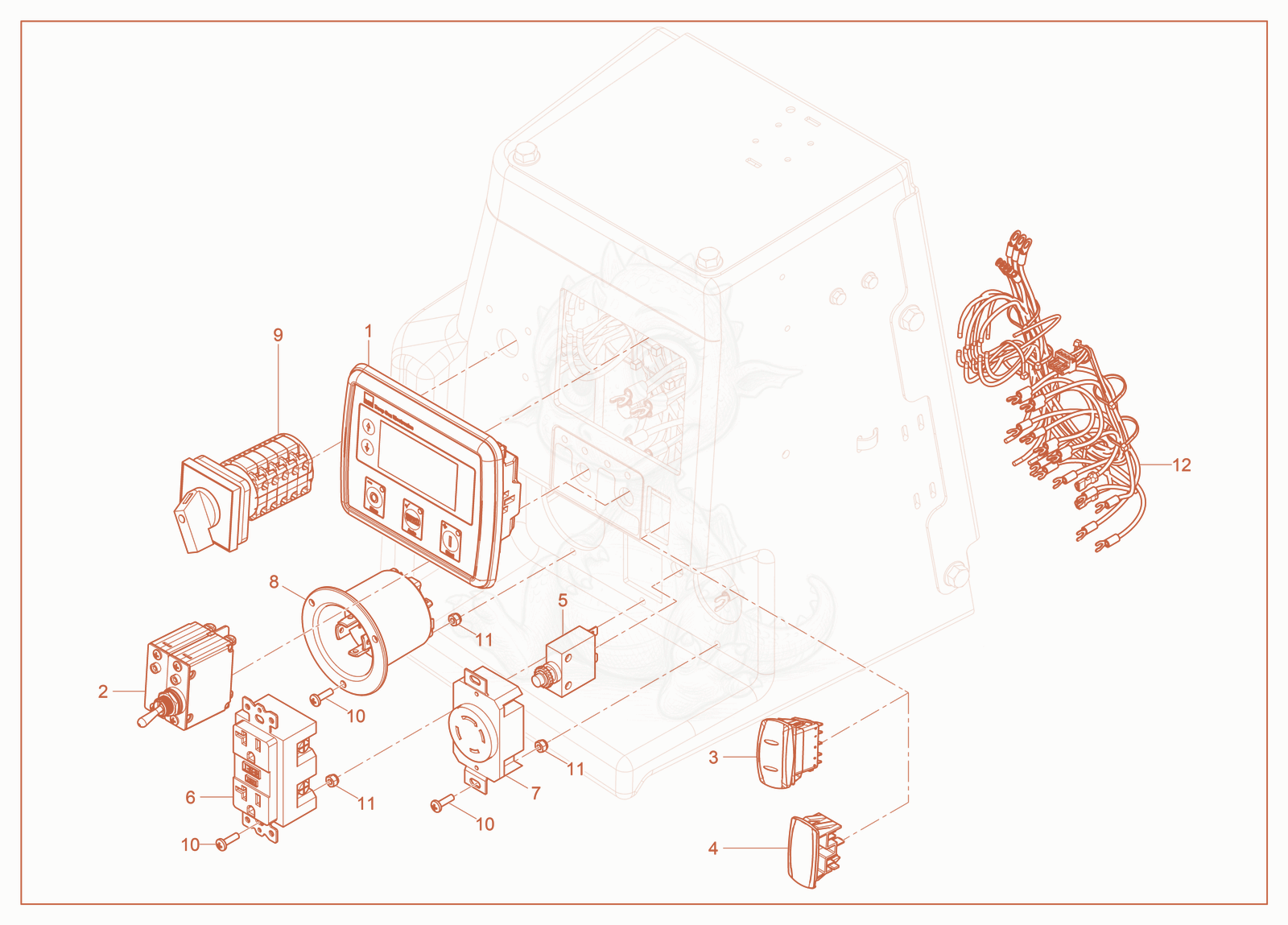

Exploded parts diagram of the Control Panel/Receptacle Panel of a Wacker Neuson LTC4, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100068478Price
    BREAKER-CIRCUIT,2P,17A, SEALED - 5100068478×1
  • 35100067999Price
    SWITCH ROCKER POWER WINCH - 5100067999×1
  • 41000342613Price
    COVER SWITCH - 1000342613×1
  • 55000082946Price
    BREAKER-CIRCUIT 20A, 1 POLE - 5000082946×1
  • 65100075974Price
    RECEPTACLE 120V 20A GFCI WR TR - 5100075974×1
  • 75000088827Price
    RECEPTACLE-L14-30, 30 AMP - 5000088827×1
  • 85200025416Price
    Inlet-L14-30P - 5200025416×1
  • 95100082801Not stocked
    SWITCH SELECTOR 5 POL×1
  • 105000110405Price
    SCREW M4 X 14 PHIL HD - 5000110405×7
  • 115000010370Price
    NUT-LOCK M4 HEX. - 5000010370×9
  • 125100082583Not stocked
    HARNESS DUPLEX TWIST SHORE×1
  • 135100043478Price
    MODULE-BATTERY CHARGER,12V - 5100043478×1
  • 145100084115Not stocked
    MODULE SHORE POWER INTERLOCK×1
  • 155100084066Not stocked
    HARNESS SHORE POWER INTERLOCK×1
  • 165000110951Price
    SCREW M4 X 20 PHIL HD - 5000110951×2
