LT4K-LIGHT TOWER

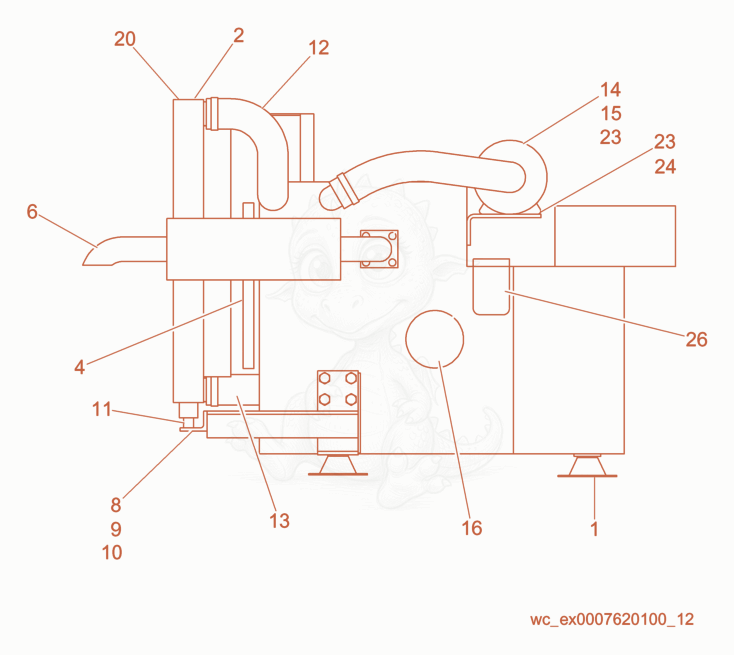

LT4K Service Parts Diagram
- 5000089799PriceSENSOR-OIL PRESSURE - 5000089799×1
- 5000089807PriceSOLENOID-AUTO SHUTDOWN - 5000089807×1
- 5000089843PricePLUG-GLOW - 5000089843×1
- 5000114293PriceGUARD-FAN - 5000114293×1
- 5000114397PriceFAN-ENGINE,KUBOTA - 5000114397×1
- 5000118789PriceMANUAL-PARTS,KUBOTA ENGINE - 5000118789×1
- 5000118790PriceMANUAL-SERVICE,KUBOTA ENGINE - 5000118790×1
- MOUNT-ENGINE - 5000089786×4
- 25000089797Not stockedSensor×1
- 45000089801Not stockedV-belt×1
- Muffler - 5000089816×1
- 75000089810Not stockedRadiator×1
- BRACKET-RADIATOR,KUBOTA - 5000114398×1
- 95000114399Not stockedBracket×1
- 105000114400Not stockedBracket×1
- SHOCKMOUNT-RADIATOR - 5000114472×2
- 125000089812Not stockedHose×1
- 135000089814Not stockedRadiator bottom hose×1
- 145000089788Not stockedAir filter element (metal)×1
- FILTER-AIR,CANISTER ASSY,PLSTC - 5000152914×1
- 165000089789Not stockedOil filter×1
- BRACKET-SUPPORT, L SHAPED - 5000117606×1
- 245000117607Not stockedBracket×1
- BRACKET-CLAMP,PLASTIC - 5000152915×1
- FILTER-FUEL - 5000089787×1
- 275000154850Not stockedBracket×1
- FILTER,HEAD ASSEMBLY - 5000115730×1
