IRSEN58/250GV

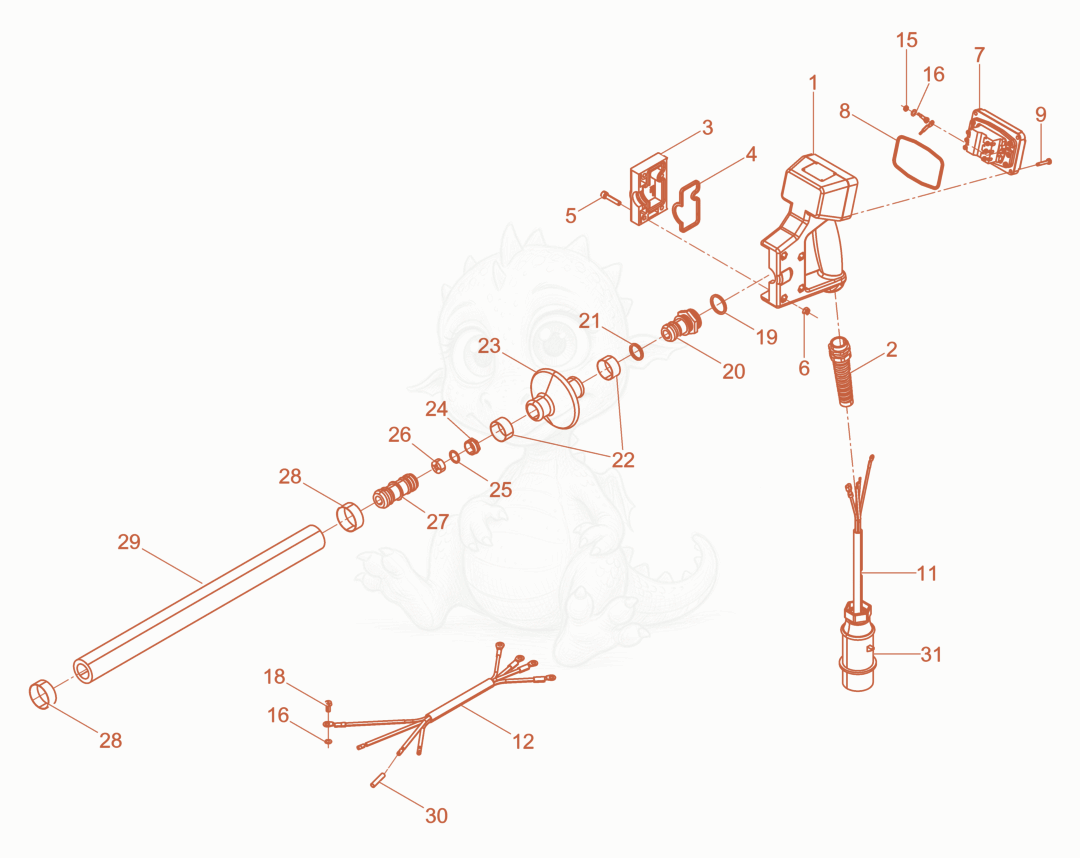

IRSEN58/250GV Hose Connection cpl. Diagram

Exploded parts diagram of the Hose Connection cpl. of a Wacker Neuson IRSEN58/250GV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000129128Price
    housing - 5000129128×1
  • 25000126728Price
    SCREW-CONNECTION - 5000126728×1
  • 35000129129Price
    cover - 5000129129×1
  • 45000129131Price
    seal - 5000129131×1
  • 55000011549Price
    SCREW M6 X 30 SOC.HD. - 5000011549×4
  • 65000010880Price
    NUT M6 8,HEX - 5000010880×4
  • 75100059808Not stocked
    Cover cpl.×1
  • 85000202233Price
    O-ring - 5000202233×1
  • 95100001330Price
    Oval head screw - 5100001330×4
  • 115000203585Not stocked
    Power supply cable with plug×1
  • 125100072346Not stocked
    Supply line cpl.×1
  • 155000010872Price
    NUT M4 8,HEX. - 5000010872×1
  • 165000200988Price
    WASHER-LOCK,TOOTHED - 5000200988×2
  • 185000218500Price
    Screw-Pan Head - 5000218500×1
  • 195000202234Price
    O-ring - 5000202234×1
  • 205000126848Price
    grommet - 5000126848×1
  • 215000202235Price
    O-ring - 5000202235×1
  • 225000128141Price
    CLAMP - 5000128141×2
  • 235000094858Price
    PLUG- AM 22X1.5 - 5000094858×1
  • 245003008191Price
    CONNECTOR-BODY PG21 - 5003008191×1
  • 255002000058Price
    RING SEAL 16 X 20.5 X 0.8,PG16 - 5002000058×1
  • 265100002162Not stocked
    4 hole plug×1
  • 275000095167Price
    PORT-SOCKET - 5000095167×1
  • 285002006823Price
    CLAMP 201/J206-45X5/8 ,BAND-IT - 5002006823×2
  • 295000129443Price
    HOSE-PROTECTIVE - 5000129443×1
  • 305000202516Price
    TERMINAL-SPLICE 24.5-2.5 - 5000202516×3
  • 315000022859Not stocked
    CEE-plug×1
