Internal Vib. IRSEN 57/250

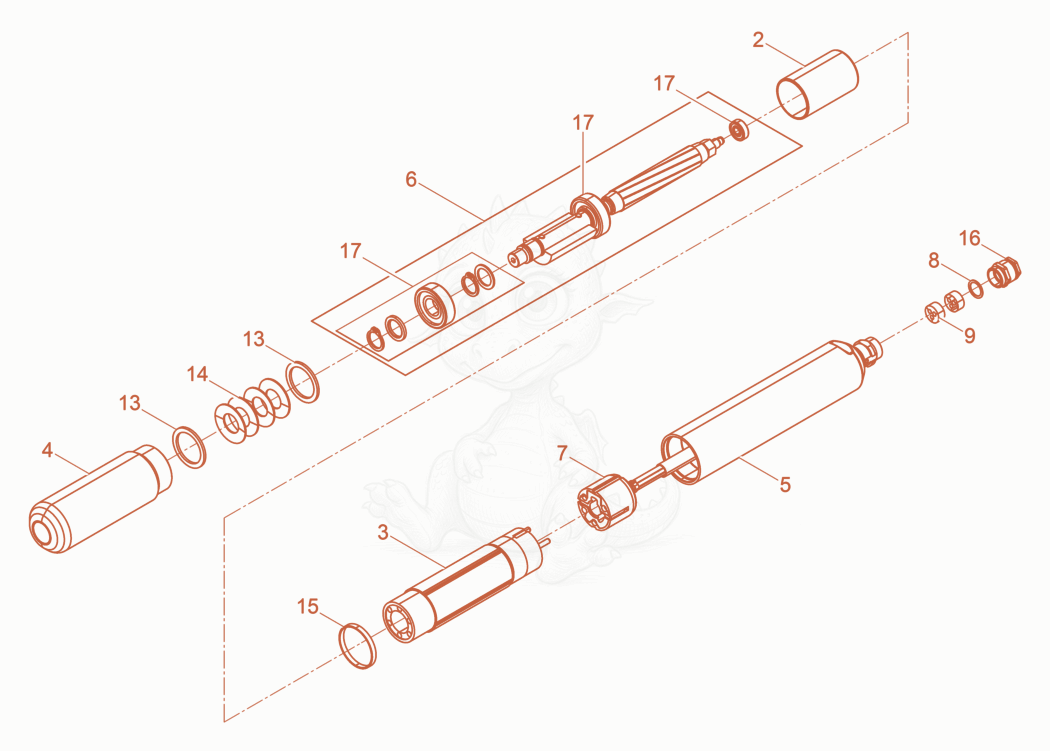

IRSEN57/250 Internal Vibrator Diagram
- SLEEVE-DISTANCE - 5000202834×1
- 35100015141Not stockedStator×1
- TUBE-LOWER - 5000202835×1
- TUBE-UPPER - 5000218504×1
- ROTOR-COMPLETE - 5000202830×1
- ELECTRIC CONNECTION - 5000218640×1
- RING SEAL 16 X 20.5 X 0.8,PG16 - 5002000058×1
- 3 hole plug (PG 16 - 5100001680×2
- RING-SPACER - 5000218381×2
- SPRING-CUP - 5000202829×4
- RING - 5000202836×1
- Screw connection cpl. - 5100002432×1
- BEARING SET - 5000202267×1
