Int. Vib. IRSEN 38/115 Laser

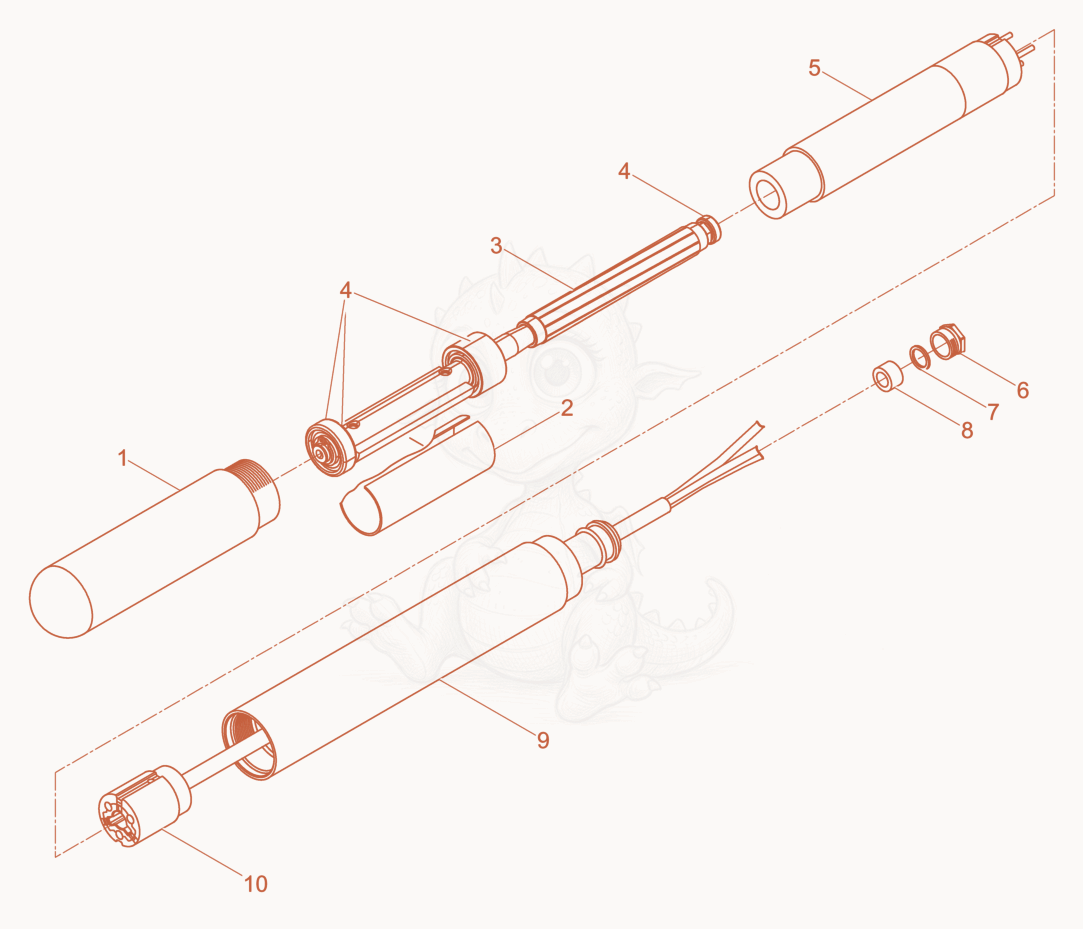

IRSEN38/115LASER Internal Vibrator cpl. Diagram
- Tube-Upper - 5000218501×1
- SLEEVE-DISTANCE - 5000106055×1
- ROTOR-COMPLETE - 5000108377×1
- BEARING SET - 5000202268×1
- 55000108978Not stockedStator×1
- CONNECTOR-BODY - 5002003793×1
- RING SEAL 10 X 13.5 X 0.8,PG9 - 5002003795×1
- SEAL-RING 9 X 13.5 X 5.5 - 5002003792×1
- 95000105713Not stockedLower tube×1
- 105000219581Not stockedElectric connection×1
