IRFUN57K-VIBRATOR

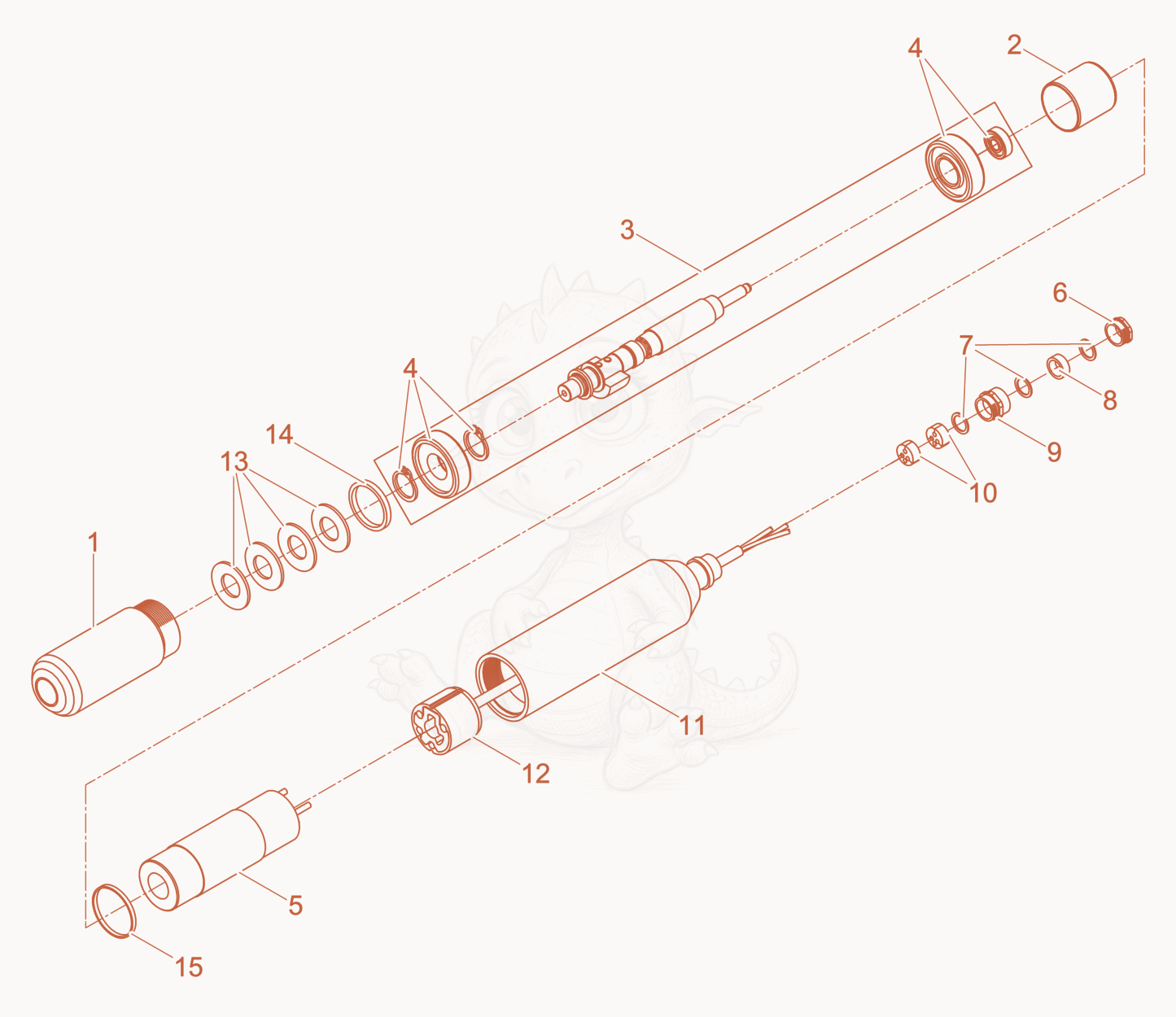

IRFUN57K Internal Vibrator cpl. Diagram

Exploded parts diagram of the Internal Vibrator cpl. of a Wacker Neuson IRFUN57K, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000205949Price
    TUBE-LOWER - 5000205949×1
  • 25000205944Price
    SLEEVE-DISTANCE - 5000205944×1
  • 35000205947Price
    COUPLING-ARMATURE MOTOR - 5000205947×1
  • 45000202267Price
    BEARING SET - 5000202267×1
  • 55000108982Not stocked
    Stator×1
  • 65003008191Price
    CONNECTOR-BODY PG21 - 5003008191×1
  • 75002000058Price
    RING SEAL 16 X 20.5 X 0.8,PG16 - 5002000058×3
  • 85002003770Not stocked
    Gasket×1
  • 95003008326Price
    CONNECTOR-ADAPTER PG16 DN46320 - 5003008326×1
  • 105003009151Price
    GROMMET .230 ID,PLUG,4-HOLE - 5003009151×2
  • 115000108292Price
    TUBE-UPPER - 5000108292×1
  • 125000203422Price
    WIRE-ELECTRIC CONNECTION - 5000203422×1
  • 135000202829Price
    SPRING-CUP - 5000202829×4
  • 145000202828Price
    Spacer - 5000202828×1
  • 155000202836Price
    RING - 5000202836×1
