IRflex60/120/10hr

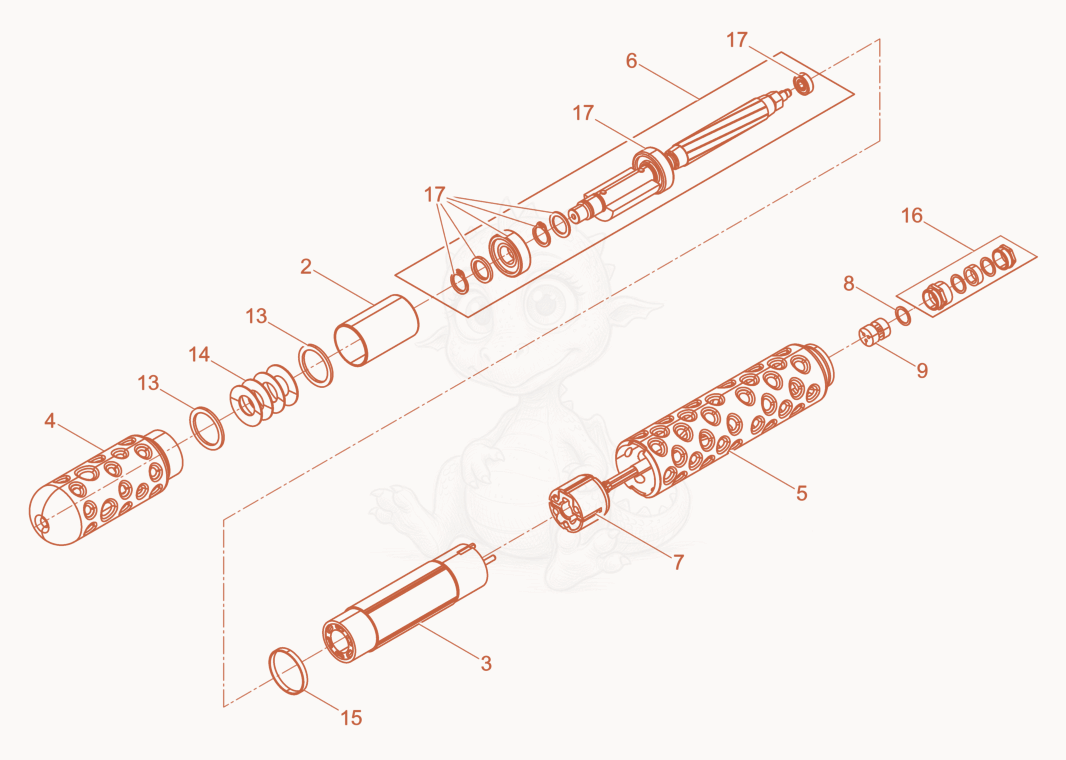

IRFLEX60/120/10HRUS Internal Vibrator cpl. Diagram
- SLEEVE-DISTANCE - 5000202834×1
- Stator package processed - 5100045670×1
- Lower tube - 5000219634×1
- Upper tube - 5000219615×1
- ROTOR-COMPLETE - 5000202830×1
- ELECTRIC CONNECTION - 5000218640×1
- RING SEAL 16 X 20.5 X 0.8,PG16 - 5002000058×1
- 3 hole plug (PG 16 - 5100001680×2
- RING-SPACER - 5000218381×2
- SPRING-CUP - 5000202829×4
- RING - 5000202836×1
- Screw connection cpl. - 5100002432×1
- BEARING SET - 5000202267×1
