Internal Vib. IREN 65/6mGV

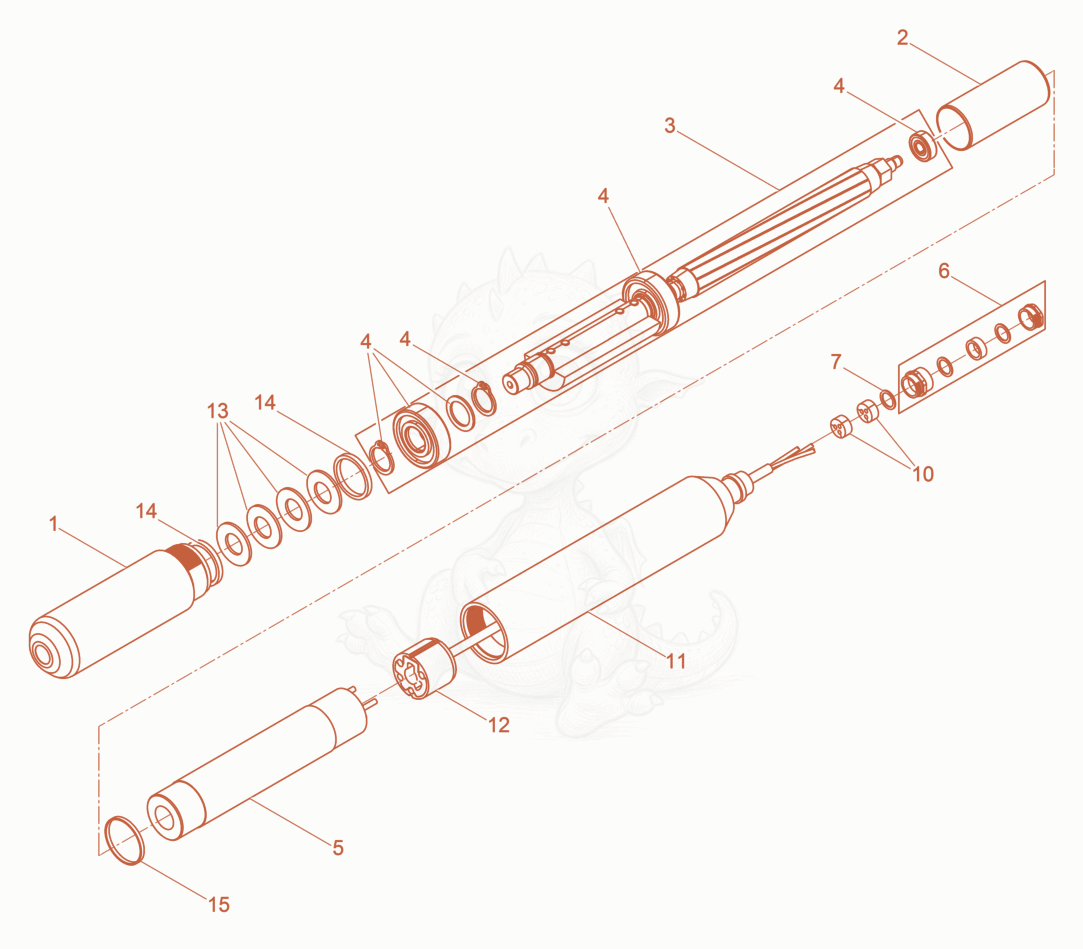

IREN656MGV Internal Vibrator cpl. Diagram

Exploded parts diagram of the Internal Vibrator cpl. of a Wacker Neuson IREN656MGV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000205409Not stocked
    Rubber hose cap×1
  • 25000205426Price
    SLEEVE-DISTANCE - 5000205426×1
  • 35000205412Price
    COUPLING-MOTOR ARMATURE - 5000205412×1
  • 45000202267Price
    BEARING SET - 5000202267×1
  • 55100002591Price
    Stator (ND) - 5100002591×1
  • 65100002432Price
    Screw connection cpl. - 5100002432×1
  • 75002000058Price
    RING SEAL 16 X 20.5 X 0.8,PG16 - 5002000058×1
  • 105100002126Price
    3 hole plug - 5100002126×2
  • 115000105722Price
    TUBE-UPPER - 5000105722×1
  • 125000203409Price
    CONNECTOR-ELECTRIC - 5000203409×1
  • 135000202829Price
    SPRING-CUP - 5000202829×4
  • 145000218381Price
    RING-SPACER - 5000218381×2
  • 155000202836Price
    RING - 5000202836×1
