IREN 57 ST1

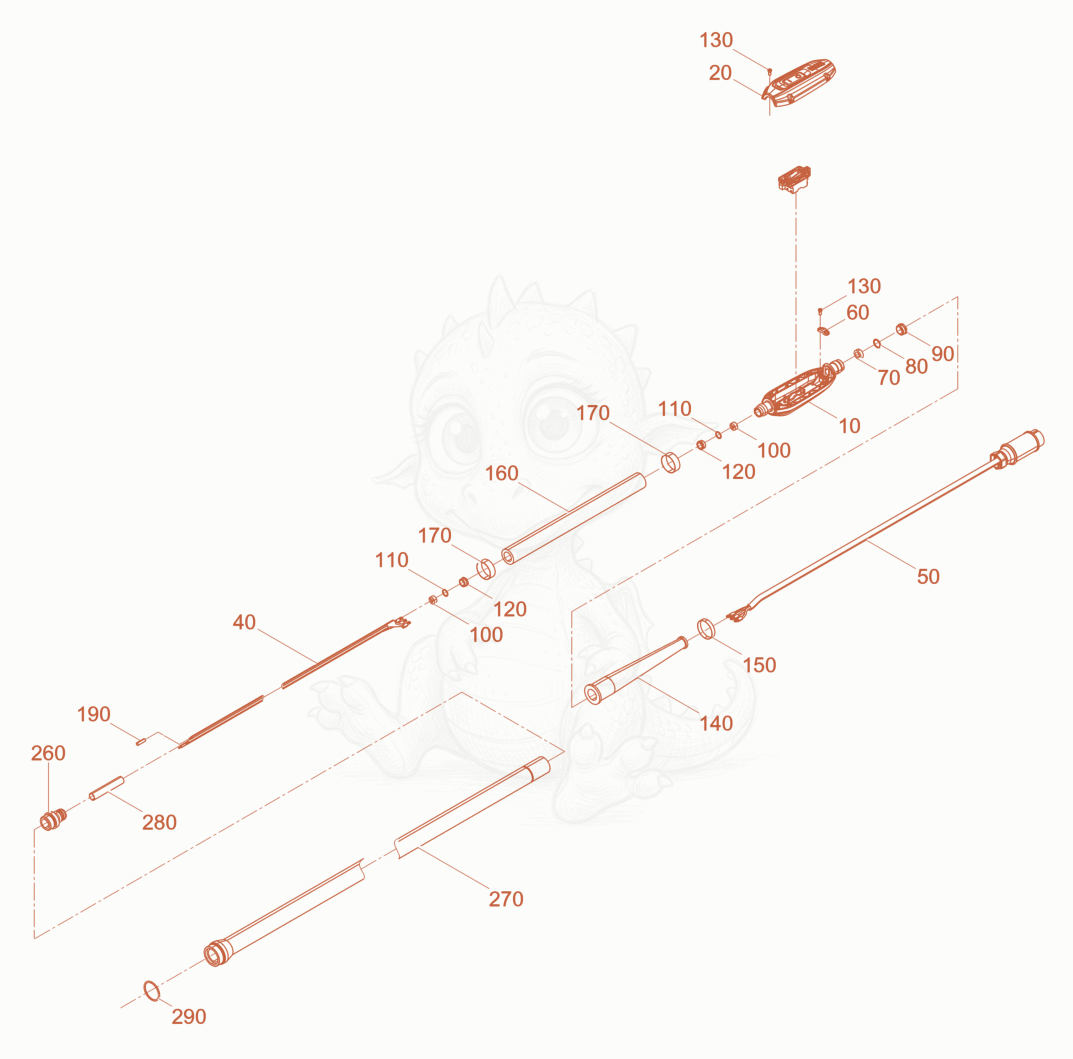

IREN57ST1 Hose Connection cpl. Diagram

Exploded parts diagram of the Hose Connection cpl. of a Wacker Neuson IREN57ST1, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 105100059007Not stocked
    Housing×1
  • 205100010827Price
    Cover - 5100010827×1
  • 405100059014Not stocked
    Supply line cpl.×1
  • 505100058993Price
    Power supply cable cpl. - 5100058993×1
  • 605000106220Price
    Clamp - 5000106220×1
  • 705100051338Price
    Plug - 5100051338×1
  • 805000201168Price
    RING-THRUST - 5000201168×1
  • 905100051819Price
    Pressure screw - 5100051819×1
  • 1005100010955Price
    3 hole plug (M20x1,5) - 5100010955×2
  • 1105000203578Price
    RING-THRUST - 5000203578×2
  • 1205000203576Price
    SCREW-PRESSURE - 5000203576×2
  • 1305100058845Price
    Oval head screw 5x12 - 5100058845×6
  • 1405003008468Price
    SLEEVE-CABLE REINFORCEMENT - 5003008468×1
  • 1505002007121Price
    Clamp - 5002007121×1
  • 1605100069941Not stocked
    Protective hose×1
  • 1705002006823Price
    CLAMP 201/J206-45X5/8 ,BAND-IT - 5002006823×2
  • 1905000203408Price
    CONNECTOR-FLAT 26,0-4 - 5000203408×3
  • 2605100051818Not stocked
    Hose connection×1
  • 2705000034119Not stocked
    Casing adaptor×1
  • 2805000200944Not stocked
    Shrink-fit hose×1
  • 2905002006781Price
    O-RING 46 X 3-80 Sh - 5002006781×1
