HSH3000

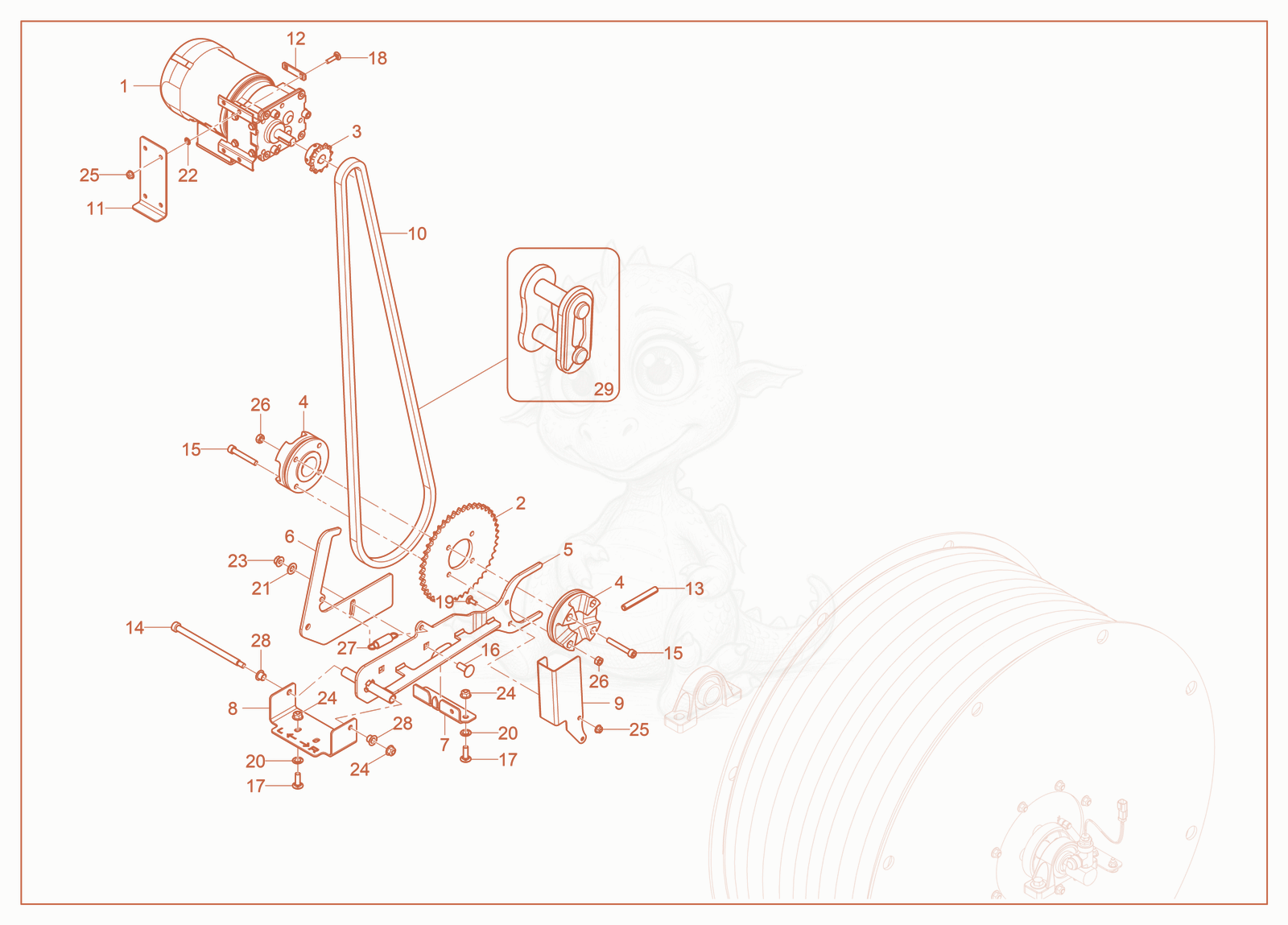

HSH3000 Drum Drive System Diagram
- 15000168382Not stockedGear motor×1
- 25100086490Not stockedSPROCKET LARGE×1
- 35100086489Not stockedSPROCKET×1
- 45100086440Not stockedCLUTCH HOSE REEL×2
- 55100086510Not stockedSHIFTER×1
- 65100086508Not stockedHANDLE SHIFTER×1
- 75100086695Not stockedGATE SHIFTER×1
- 85100086513Not stockedBRACKET SHIFTER×1
- 95100086505Not stockedBRACKET CHAIN GUARD×1
- 105100086493Not stockedCHAIN×1
- 115100079994Not stockedPLATE REEL MOTOR×1
- 125100079995Not stockedPLATE BOLT MOTOR×2
- 135100078134Not stockedPIN DOG×2
- 145100086512Not stockedBolt×1
- NUT M8 8,HEX - 5000010882×4
- BOLT M10X25 CARRIAGE SHORT NECK 8.8 ZINC - 1000343297×2
- BOLT-CARRIAGE,SHRT NK-M8x25-8.8-ZNC - 1000403381×4
- 181000343404Not stockedCarriage bolt×4
- 195100080740Not stockedScrew×2
- WASHER-M8,RETAINING - 5200003962×4
- WASHER B10.5 FLAT - 5000010621×2
- WASHER-M6, RETAINING - 5100058160×4
- NUT M10 FLANGED 10 ZINC - 1000343293×2
- NUT M8 FLANGED LOCKNUT 8 ZINC - 1000343350×4
- NUT M6 FLANGED LOCK 10 ZINC - 1000343345×6
- NUT M8 8,HEX - 5000010882×4
- 275100080492Not stockedSPRING TENSION×1
- 285100086515Not stockedBUSHING FLANGE×2
- 295100086492Not stockedCHAIN MASTER LINK TYPE 40×1
