HPG100 Truss Screed Components Diagram

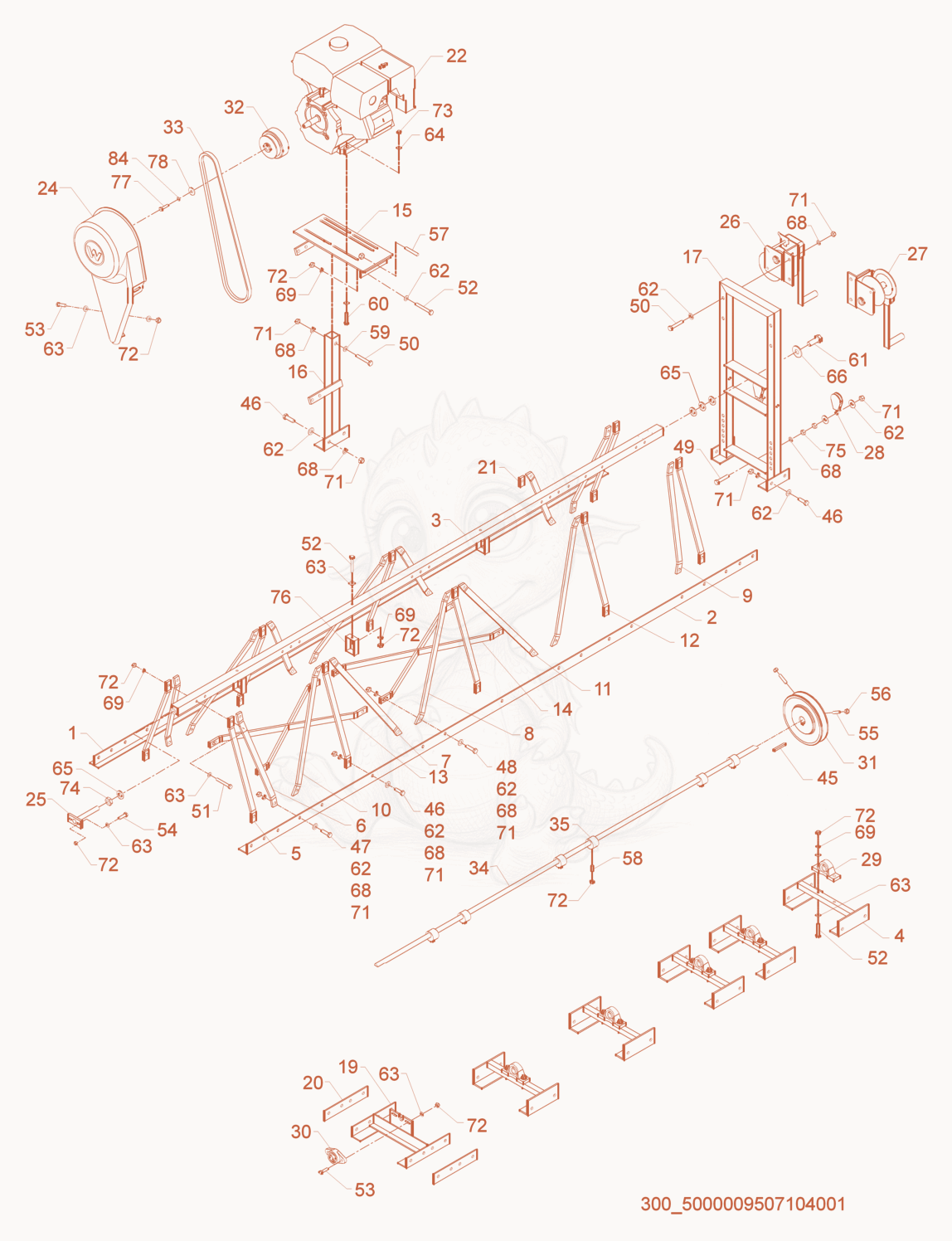

Exploded parts diagram of the Truss Screed Components of a Wacker Neuson HPG100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000116383Not stocked
    T-blade×1
  • 25000116386Price
    BLADE-L, 10 FT.,ENGINE - 5000116386×1
  • 35000130201Price
    ASM_Tube,Top HP100 - 5000130201×1
  • 45000116397Price
    ASM_Bracket-Bearing - 5000116397×5
  • 55000116413Price
    STRUT-STRAIGHT,19-3/8 - 5000116413×8
  • 65000116414Price
    STRUT-ANGLE,19-1/2 (L.H. SIDE) - 5000116414×2
  • 75000116415Price
    STRUT-ANGLE,22-3/8 (L.H.SIDE) - 5000116415×4
  • 85000116416Price
    STRUT-ANGLE,23-3/8 (L.H.SIDE) - 5000116416×2
  • 95000117585Price
    STRUT-ANGLE,19-1/2(R.H.SIDE) - 5000117585×2
  • 105000117586Price
    STRUT-ANGLE,22-3/8 (R.H.SIDE) - 5000117586×4
  • 115000117587Price
    STRUT-ANGLE,23-3/8 (R.H.SIDE) - 5000117587×2
  • 125000117588Price
    STRUT-MOTOR - 5000117588×1
  • 135000116388Price
    BRACE-CROSS,OUTER - 5000116388×2
  • 145000116389Price
    BRACE-CROSS,INNER - 5000116389×1
  • 155000130174Price
    MOUNT-ENGINE UPPER ASSY,HP100 - 5000130174×1
  • 165000130241Price
    ASM_Mount-Engine lower HP100 - 5000130241×1
  • 175000130192Price
    ASM_Frame-Handle - 5000130192×1
  • 195000116398Price
    ASM_Bracket-Connector - 5000116398×1
  • 205000116399Price
    PLATE-CONNECTOR - 5000116399×2
  • 215000117159Price
    Shim - 5000117159×1
  • 225000112134Price
    ENGINE HONDA GX240UT2X QA2 - 5000112134×1
  • 245000401793Not stocked
    Beltguard×1
  • 255000116407Price
    BOLT-T,COARSE THD. - 5000116407×1
  • 285000116409Price
    PULLEY-CABLE - 5000116409×2
  • 295000116402Price
    BEARING-PILLOW BLOCK,3/4 - 5000116402×5
  • 305000116403Price
    BEARING-CONNECTOR - 5000116403×1
  • 315000130440Price
    PULLEY-ENGINE SHEAVE - 5000130440×1
  • 325000116392Price
    CLUTCH - 5000116392×1
  • 335000116395Price
    DURAFLEX GL 5L-550 - 5000116395×1
  • 345000130442Price
    SHAFT-10 FT. W/SLOT - 5000130442×1
  • 355000116396Price
    WEIGHT-ECCENTRIC - 5000116396×7
  • 455000130441Price
    KEY--SCREED SHAFT - 5000130441×1
  • 465000011422Price
    SCREW M12 X 35 HX.HD. - 5000011422×25
  • 475000011300Price
    SCREW M12 X 45 HX.HD. - 5000011300×5
  • 485000088817Price
    SCREW M12 X 60 HX.HD. - 5000088817×14
  • 505000011306Price
    SCREW M12 X 75 HX.HD - 5000011306×5
  • 515000011325Price
    SCREW M10 X 75 HX.HD. - 5000011325×13
  • 525000011322Price
    SCREW M10 X 60 HX.HD. - 5000011322×15
  • 535000011439Price
    SCREW M10 X 30 HX.HD - 5000011439×11
  • 545000011438Price
    SCREW M10 X 35 HX.HD. - 5000011438×2
  • 555000130667Price
    SCREW-SOCKET SET M6 X 25 - 5000130667×2
  • 565000010368Price
    NUT-LOCK M6 HEX. - 5000010368×2
  • 575000130669Price
    SCREW-SOCKET SET M10 X 60 - 5000130669×1
  • 605000011342Price
    SCREW M8 X 45 HX.HD. - 5000011342×4
  • 615000116451Not stocked
    Screw×1
  • 625000010620Price
    WASHER B13 FLAT - 5000010620×60
  • 635000010621Price
    WASHER B10.5 FLAT - 5000010621×44
  • 645000010374Price
    WASHER B8.4 FLAT - 5000010374×8
  • 655000010616Price
    WASHER B21 FLAT - 5000010616×2
  • 665000116457Not stocked
    Washer×1
  • 685000012648Price
    WASHER-LOCK B12 - 5000012648×49
  • 695000010644Price
    WASHER-LOCK B10 - 5000010644×30
  • 715000010366Price
    NUT-LOCK M12X1.75 HEX - 5000010366×49
  • 725000010365Price
    NUT-LOCK M10 HEX. - 5000010365×34
  • 735000010367Price
    NUT-LOCK M8 HEX - 5000010367×4
  • 745000116449Price
    NUT-JAM,COARSE THD. - 5000116449×1
  • 755000010884Price
    NUT M12 8,HEX - 5000010884×4
  • 765000130187Price
    GUIDE-CABLE - 5000130187×3
  • 775000130668Not stocked
    Hexagonal head cap screw×1
  • 785000114766Price
    WASHER .531X 1.625X.120,FLAT - 5000114766×1
  • 845000012648Price
    WASHER-LOCK B12 - 5000012648×1
