GV7003A-50 HZ VALUE GEN,SCHUKO

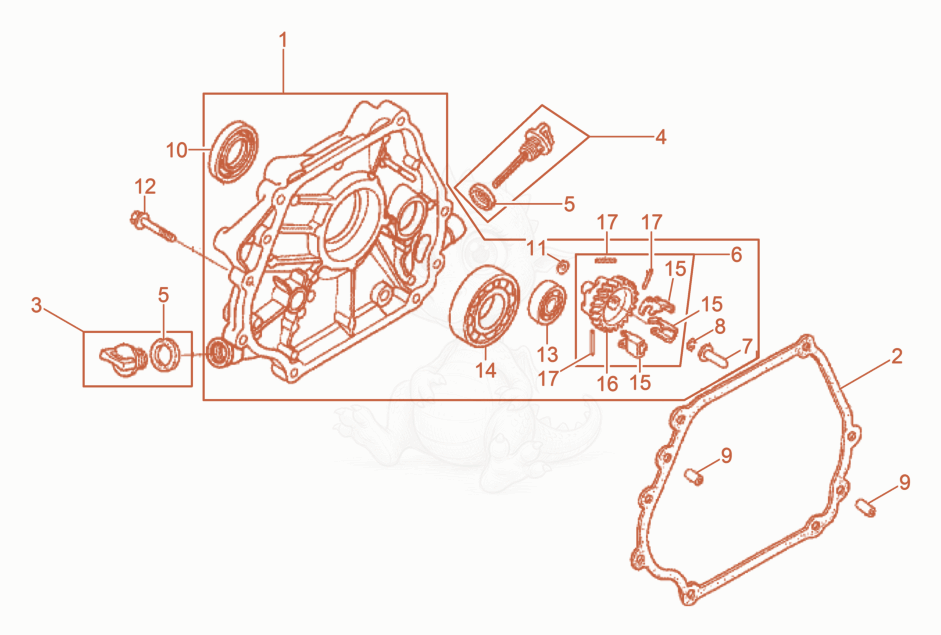

GV7003A Crankcase cover Diagram

Exploded parts diagram of the Crankcase cover of a Wacker Neuson GV7003A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100000347Price
    Crankcase cover cpl. - 5100000347×1
  • 25100000350Price
    Gasket - 5100000350×1
  • 35000162646Price
    CAP-OIL FILLER - 5000162646×1
  • 45000217482Price
    Dipstick cpl. - 5000217482×1
  • 55000162647Price
    Gasket - 5000162647×2
  • 65000082828Price
    GOVERNOR-ASSEMBLY - 5000082828×1
  • 75000074632Price
    SLIDER-ENGINE GOVERNOR - 5000074632×1
  • 85000081615Price
    RET.RING 7.7MM,FORM C - 5000081615×1
  • 95000081617Price
    PIN 8 X 12,DOWEL - 5000081617×2
  • 105100000453Not stocked
    Sealing ring×1
  • 115000071639Price
    WASHER 6MM,PLAIN - 5000071639×1
  • 125000116734Price
    BOLT-FLANGE 8 X 40 - 5000116734×7
  • 135100003509Price
    Grooved ball bearing - 5100003509×1
  • 145100003512Price
    Grooved ball bearing - 5100003512×1
  • 155000075788Price
    WEIGHT-GOVERNOR - 5000075788×3
  • 165000082829Price
    HOLDER-GOVERNOR WEIGHT - 5000082829×1
  • 175000074634Price
    PIN-GOVERNOR WT RETAINER - 5000074634×3
