GV7000A

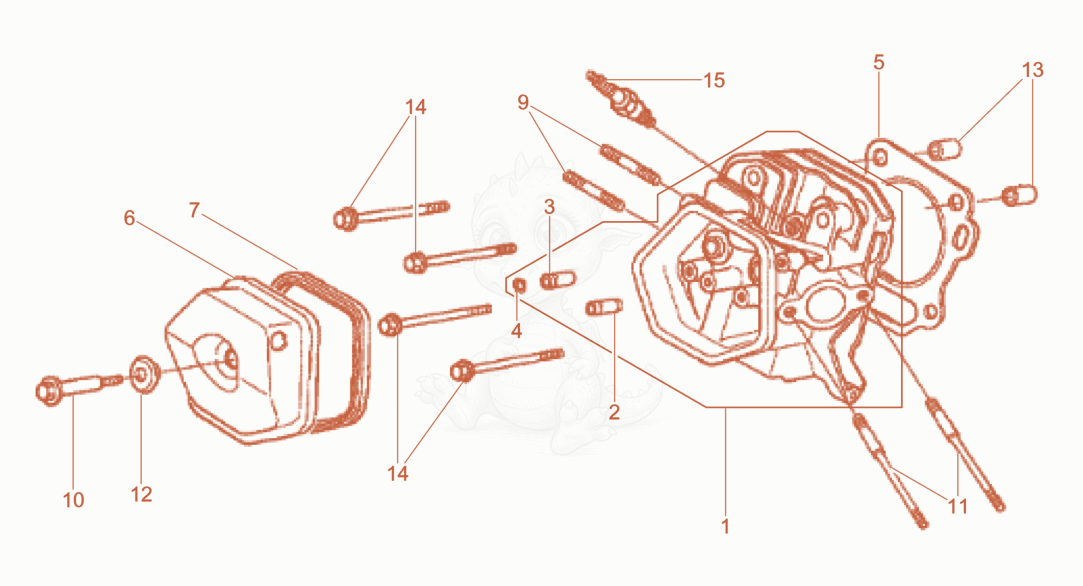

GV7000A Cylinder head Diagram
- Cylinder Head cpl. - 5100038229×1
- GUIDE-VALVE,INTAKE - 5000110602×1
- GUIDE-EXHAUST VALVE - 5000074648×1
- RET.RING 11.9MM,FORM C - 5000074660×1
- Cylinder head gasket - 5100000356×1
- COVER-CYLINDER HEAD - 5000089273×1
- GASKET-CYLINDER HEAD COVER - 5000074645×1
- BOLT-STUD - 5000213388×2
- 105100000450Not stockedScrew×1
- screw - 5200000468×1
- 115100003482Not stockedBolt×2
- WASHER - 5000074657×1
- PIN 12 X 20,DOWEL - 5000074652×2
- 145100003507Not stockedFlange screw×4
- 155000209776Not stockedSpark plug×1
