GV5000A

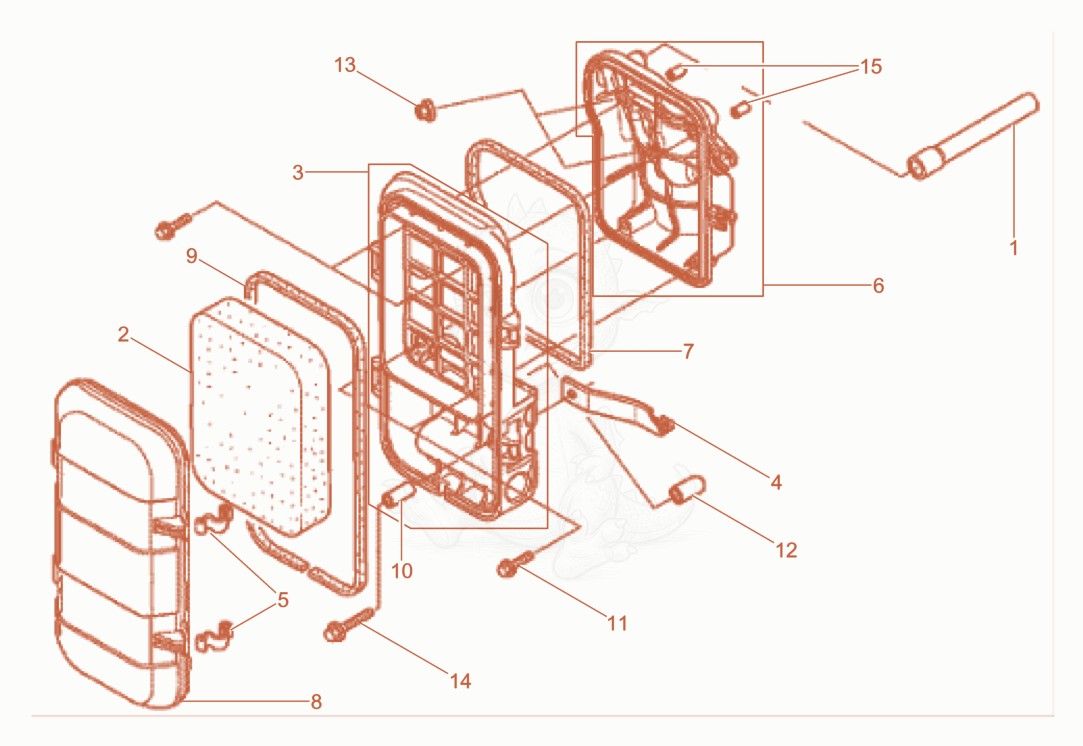

GV5000A Air Cleaner Diagram

Exploded parts diagram of the Air Cleaner of a Wacker Neuson GV5000A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100003391Not stocked
    Breather tube×1
  • 25000158502Price
    ELEMENT-AIR CLEANER - 5000158502×1
  • 35100001468Price
    Holder - 5100001468×1
  • 45100003567Not stocked
    Fixing device×1
  • 55100003435Not stocked
    Spring×2
  • 65100038222Price
    Console cpl. - 5100038222×1
  • 75100003437Price
    Seal - 5100003437×1
  • 85100038223Price
    Air filter cover - 5100038223×1
  • 95100003439Price
    Seal - 5100003439×1
  • 105100003440Not stocked
    Sleeve×1
  • 115000157532Price
    BOLT-FLANGE (5X18) - 5000157532×4
  • 125000226543Price
    Seal - 5000226543×1
  • 135000071056Price
    NUT M6,HEX,FLANGE - 5000071056×2
  • 145100050575Not stocked
    Flange screw 6x32×1
  • 155100038224Price
    Collar - 5100038224×2
