GV3800A VALUE GEN NON-CARB

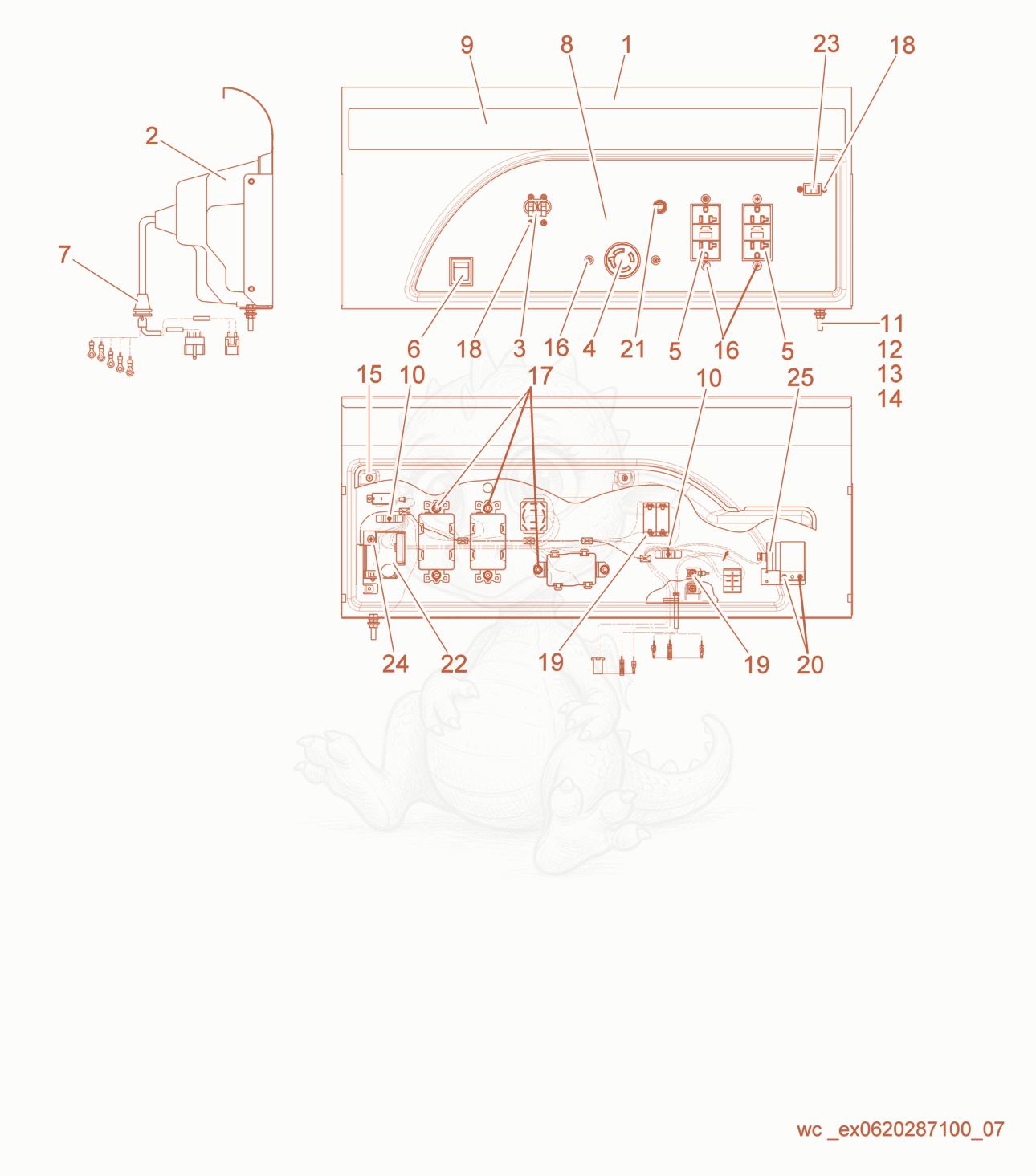

GV3800A Control Box cpl. Diagram
- 15000170918Not stockedPanel×1
- Cover - 5000170919×1
- 35000170920Not stockedCircuit Breaker cpl.×1
- RECEPTACLE,L14-20 20A - 5000161015×1
- 55000089849Not stockedGFI Receptacle Kit×2
- 65000170923Not stockedEngine switch×1
- 75000170924Not stockedWiring harness×1
- 85000170925Not stockedPlate×1
- 95000170926Not stockedLabel×1
- Clip - 5000170908×2
- BOLT M6 X 28 - 5000170909×1
- NUT M6 - 5000170910×2
- WASHER-SPRING M6 - 5000170911×2
- WASHER M6 - 5000170912×1
- SCREW M4 X 10 - 5000170913×4
- SCREW M4 X 10,BLACK - 5000170914×6
- Nut - 5000170915×6
- SCREW M3 X 6 - 5000170936×6
- 195000170937Not stockedHandle grip×5
- 205000170938Not stockedHexagonal head cap screw×2
- SWITCH-VOLTAGE SELECTOR - 5000170939×1
- MODULE-AUTO IDLE - 5000170940×1
- Switch assembly - 5000171703×1
- SCREW M5 X 12 - 5000171704×1
- 255000171705Not stockedCapacitor×1
