GS5.7AI SCHUKO GENERATOR

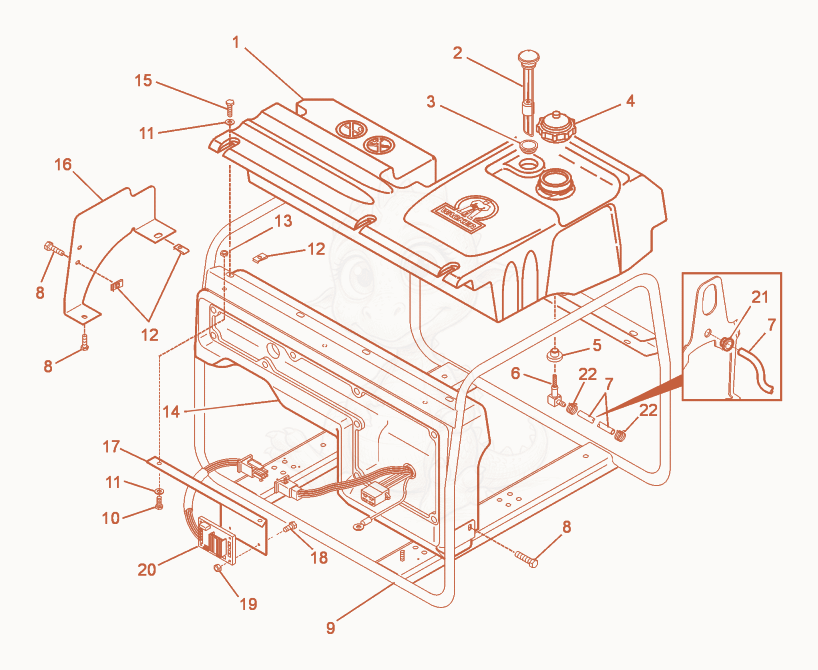

GS5.7AI Frame Diagram

Exploded parts diagram of the Frame of a Wacker Neuson GS5.7AI, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000088154Not stocked
    Fuel tank×1
  • 25000088165Price
    Gauge-fuel - 5000088165×1
  • 35000088166Price
    BUSHING-FUEL GAUGE - 5000088166×1
  • 45000119500Price
    CAP-FUEL - 5000119500×1
  • 55000053577Not stocked
    Tank valve bushing×1
  • 65000088179Not stocked
    Elbow fitting×1
  • 75000114088Price
    HOSE-FUEL,3/16 X 28.25 - 5000114088×1
  • 85000028949Price
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×4
  • 85000089386Price
    NUT-JACK THD.,INSERT - 5000089386×2
  • 95000087297Not stocked
    Frame×1
  • 105000014663Price
    SCREW M6 X 16 HX.HD. - 5000014663×3
  • 115000010373Price
    WASHER B6.4 FLAT - 5000010373×9
  • 125000088190Price
    NUT M6 CLIP ZINC PLATED - 5000088190×8
  • 135000010368Price
    NUT-LOCK M6 HEX. - 5000010368×3
  • 145000114555Not stocked
    Control box×1
  • 155000088806Price
    SCREW-LOCK M6X25,HEX - 5000088806×6
  • 165000088399Not stocked
    Bracket×1
  • 175000115045Not stocked
    Bracket×1
  • 185000011474Price
    SCREW M5X25 HX.HD. - 5000011474×4
  • 195000010369Price
    NUT-LOCK M5 HEX. - 5000010369×4
  • 205000116809Not stocked
    Regulator×1
  • 215000114199Price
    BUSHING-SNAP .50 ID - 5000114199×1
  • 225000114201Price
    CLAMP-HOSE 3/16 - 5000114201×2
