GS5.5A GENERATOR

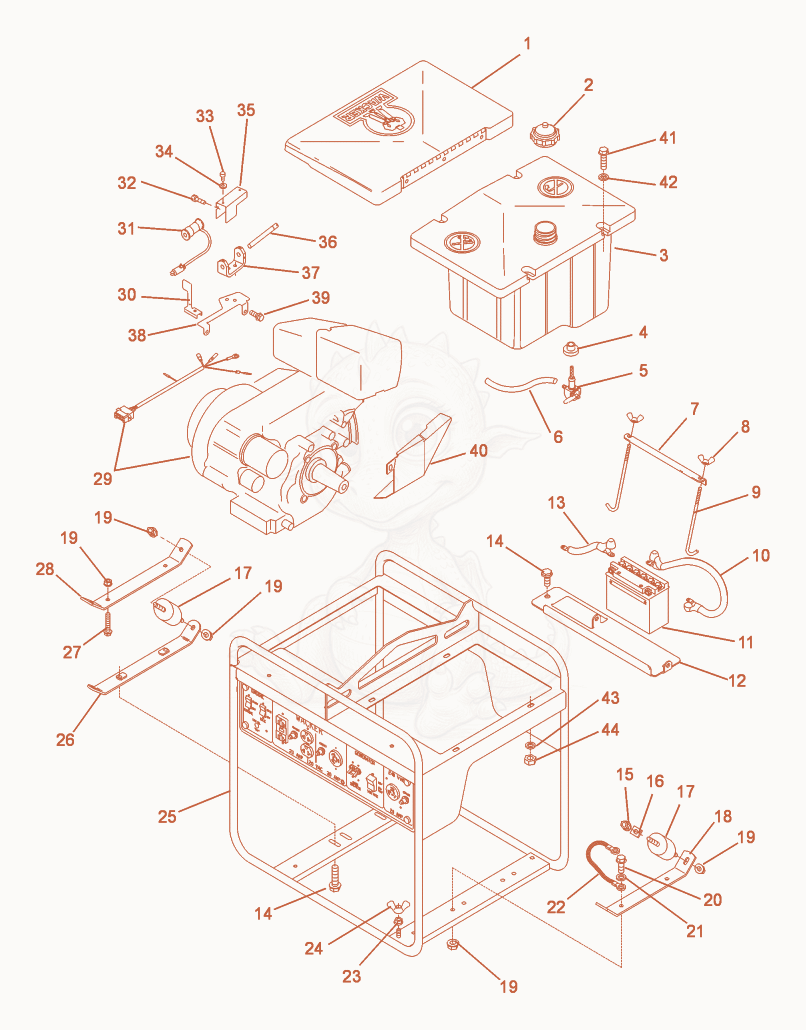

GS5.5A Frame Diagram

Exploded parts diagram of the Frame of a Wacker Neuson GS5.5A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000085671Not stocked
    Cover×1
  • 15000010625Price
    WASHER B5.3 FLAT - 5000010625Unknown×3
  • 15000010879Price
    NUT-HEX,M5 8,ISO4032 - 5000010879Unknown×3
  • 15000020936Not stocked
    Countersunk screw×3
  • 25000119500Price
    CAP-FUEL - 5000119500×1
  • 35000083079Not stocked
    Fuel tank×1
  • 45000053577Not stocked
    Tank valve bushing×1
  • 55000053576Price
    VALVE-SHUTOFF - 5000053576×1
  • 65000112392Not stocked
    Hose×1
  • 75000083781Not stocked
    Bracket×1
  • 85000010896Price
    NUT-WING M8 - 5000010896×2
  • 95000084092Price
    ROD-BATTERY HOLD DOWN - 5000084092×2
  • 105000088810Price
    CABLE-BATTERY,POSITIVE - 5000088810×1
  • 115000075444Not stocked
    Battery×1
  • 125000083780Not stocked
    Bracket×1
  • 135000088811Not stocked
    Battery cable×1
  • 145000079363Price
    SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×4
  • 155000010882Price
    NUT M8 8,HEX - 5000010882×2
  • 165000010787Price
    WASHER 9 TAPERED - 5000010787×2
  • 175000083972Price
    SHOCKMOUNT-20 X 40,45 SHORE - 5000083972×4
  • 185000083110Not stocked
    Bracket×1
  • 195000030066Price
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×11
  • 205000028404Price
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×2
  • 215000010622Price
    WASHER-FLAT,M8,ZINC - 5000010622×1
  • 225000089740Not stocked
    Ground wire×1
  • 235000029117Price
    NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×1
  • 245000010895Price
    NUT-WING M6,STAINLESS STEEL - 5000010895×1
  • 255000083062Not stocked
    Frame×1
  • 265000083427Not stocked
    Bracket×1
  • 275000011341Price
    SCREW M8 X 40 HX.HD. - 5000011341×3
  • 285000083428Not stocked
    Bracket×1
  • 295000085500Not stocked
    Honda engine×1
  • 295000084446Not stocked
    Wiring harness×1
  • 305000084058Not stocked
    Lever×1
  • 305000084619Not stocked
    Rivet×1
  • 315000085815Not stocked
    Actuator×1
  • 325000011732Price
    SCREW M3 X 12 CHEESE HD. - 5000011732×1
  • 335000011734Price
    SCREW M3 X 8 CHEESE HD. - 5000011734×2
  • 345000010632Price
    WASHER B3.2 FLAT - 5000010632×2
  • 355000084571Price
    COVER-AUTO IDLE BRACKET - 5000084571×1
  • 365000084053Not stocked
    Pin×1
  • 375000084051Not stocked
    Bracket×1
  • 375000010632Price
    WASHER B3.2 FLAT - 5000010632Unknown×1
  • 375000011734Price
    SCREW M3 X 8 CHEESE HD. - 5000011734Unknown×1
  • 375000084516Not stocked
    Clamp×1
  • 385000083989Not stocked
    Bracket×1
  • 385000073164Price
    SCREW M6 X 10,HX.HD,SER.FLG - 5000073164×2
  • 395000053990Price
    SCREW M6 X 12,HX.FLANGE HD. - 5000053990×2
  • 405000084542Not stocked
    Heatshield×1
  • 405000030056Price
    SCREW M8X10,HEX HD SER FLG - 5000030056×1
  • 415000011456Price
    SCREW M8 X 30 HX.HD. - 5000011456×4
  • 425000025636Price
    WASHER 5/16 NOM,ST,FLAT - 5000025636×4
  • 435000010622Price
    WASHER-FLAT,M8,ZINC - 5000010622×4
  • 445000010367Price
    NUT-LOCK M8 HEX - 5000010367×4
